New Design Hand Operated Jam/Cream Filling Machine /Honey Filling Machine 5-50ml
A03 5-50ml cream manual filler
Feature
1.This machine structure is simple and reasonable, manual easy operation, without any energy.
2.Equipped with filling quantity adjusting device knob, quantitative filling, quantitative filling and filling speed all can manually control.
3.The manual filling amchine is specially designed by our factory for medium or small size enterprises,laboratory,hospital or beasuty parlor in daily use chemical secton. Its cofiguration.is compact,acts agility and easy to use,all the parts which dip in the materiael are made of stainless steel and polytetrafluorethylene
Technical parameter:
| Type | A03 manual cream filling machine |
| Material | stainless steel 304 |
| Filling range | 5-50ml |
| Filling speed | 20-30times/min |
| Filling accuracy | ±2% |

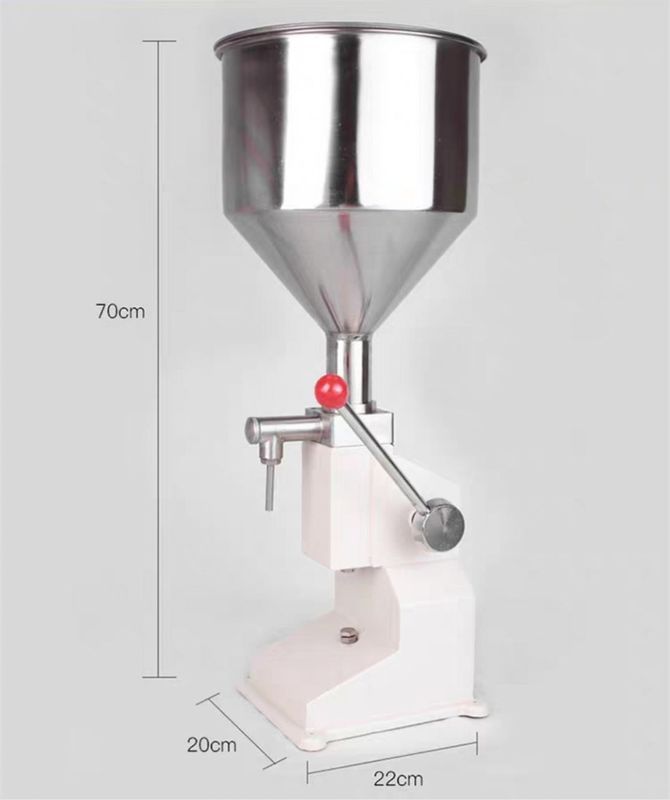

| Dimension | 270*270*700(mm) |
| Capacity of hopper | 10kg |
| Net weight | 13kg |
| Gross weight | 20kg |
| Automatic grade | semi-automatic |
| Driven type | electric |
| Packaging | carton |
| Place of origin | Dongguan China |
Spare part with machine
1 Nozzles:2 pcs
2 0-Ring:2 pcs
3 Guide Manual:1 pcs
4 Hexagon:2 pcs
5 Screwdriver :1 pcs

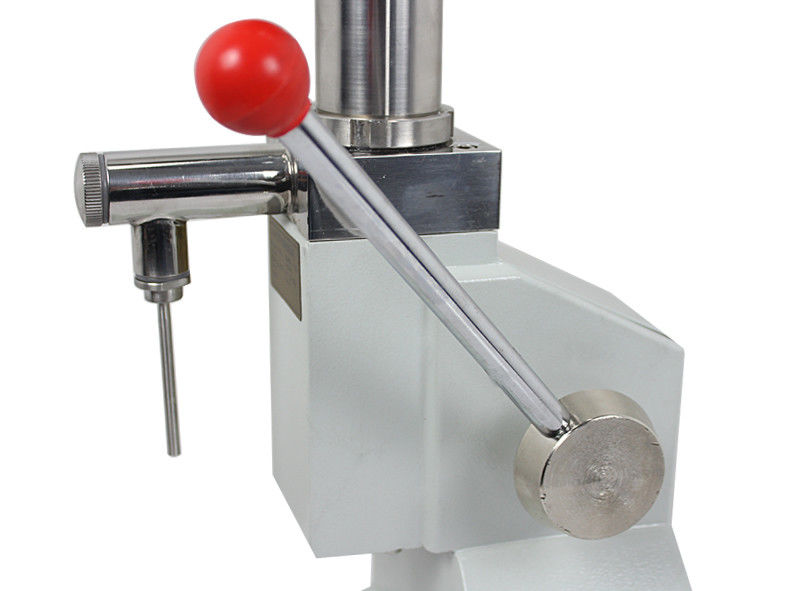

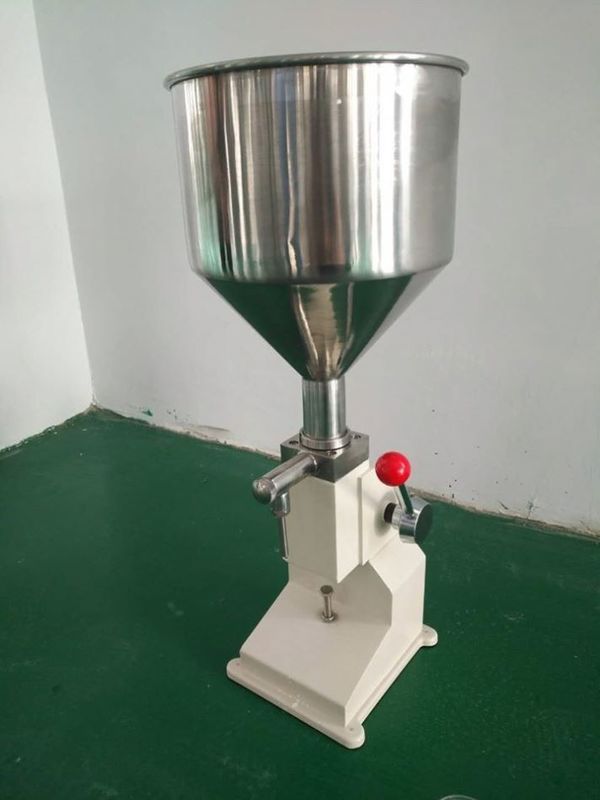

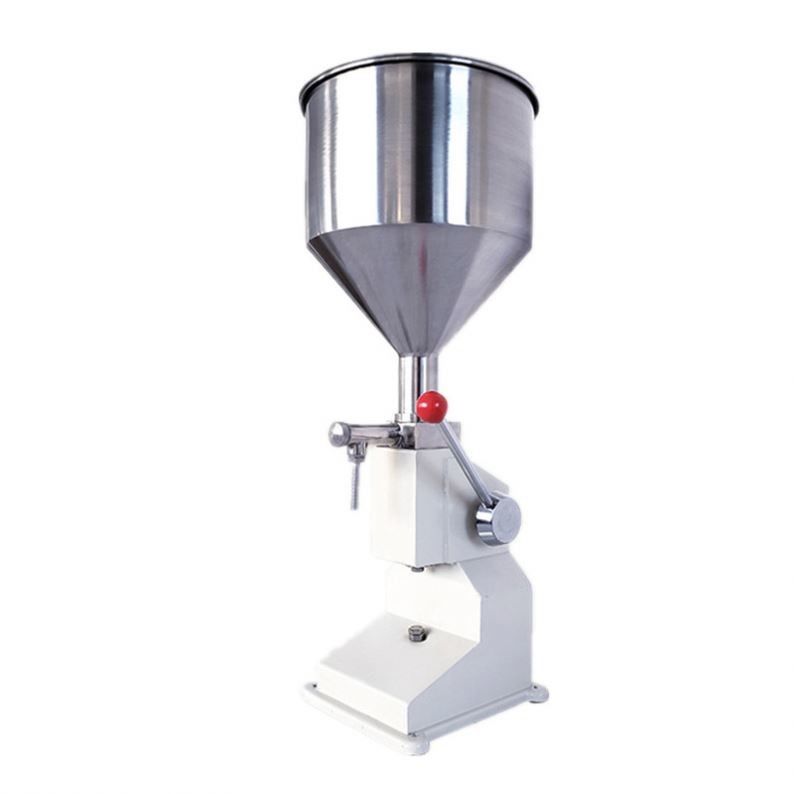

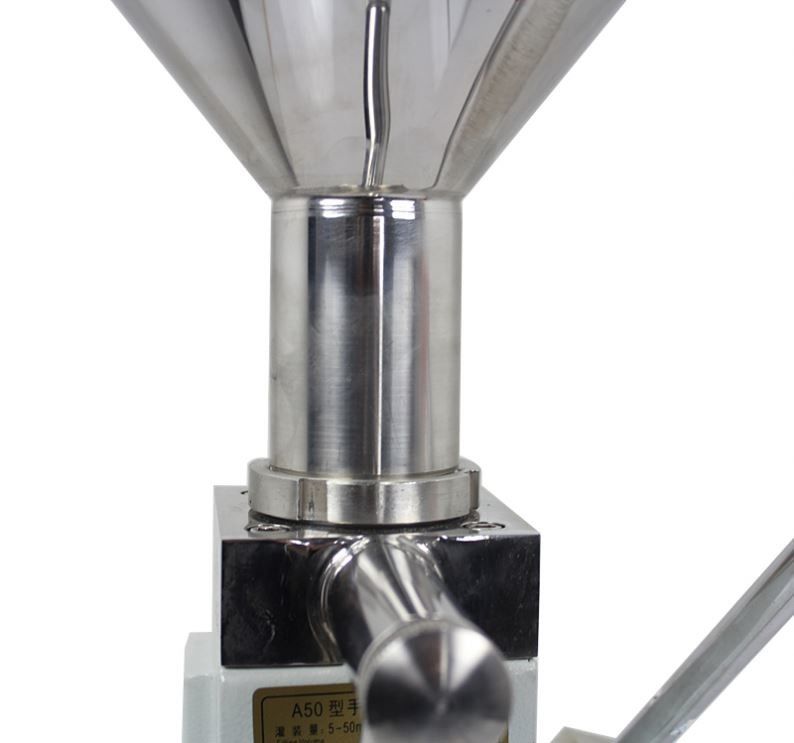

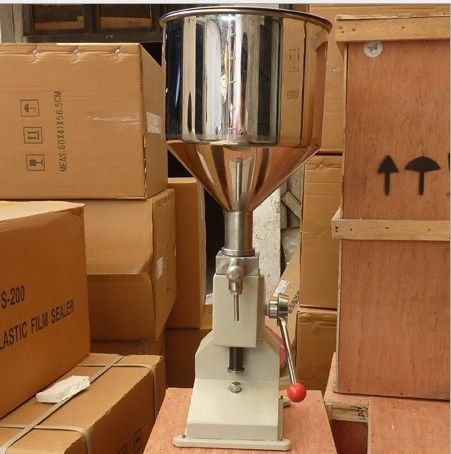

Pictures of A03 manual cream filling machine
Filling material sample
