304 Stainless Steel 100-1000ml Semi-Automatic Single Head Liquid Filling Machine
| Product Description |
Features:
This machine adopts pneumatic control and owns a wide application scope, simple measuring regulation, good shape and convenient cleaning, suitable for the explosion-proof unit
1.Reasonable design, compact shape, simple operation, partly adopt the Taiwan AirTac pneumatic components.
2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.
3. Filling volume, filling speed can be adjustable, filling accuracy is high.
4. Adopt the anti-drip, Anti-drawing and lifting filling device.
Application:
Suitable for medicine,daily life products, food and special industries.And it is an ideal device for adhesive fluid filling.
Principle:
G1WY series of semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with three-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.
1. Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Taiwan AirTac the pneumatic components.
2. Some contact materials are used 304 or 316L stainless steel materials, in line with the GMP requirements..
3. Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.
| Technical data |
Specifications of piston liquid filler:
| Model | G1WY-100/300/500/1000/3000/5000 |
| Meterial | SS304 |
| Power | 200W |
| Filling Range | 10-100ml,30-300ml,50-500ml,100-1000ml,1000-3000ml,1000-5000ml |
| Max Flow Rate | 3-10b/min |
| Package Size | 880(L) ×230(W) ×665(H)mm |
| Weight | 35kg |
| Max Suck Distance | 2meter |
| Anti-dripping Funtion | Available |
| Filling accuracy | ±1% |
| Voltage | AC180V-260V (if you need 110V,please let us know.) |
| Interior diameter of filling nozzle | 8mm(if you need smaller 4mm or other size,please let us know.) |
| Machine model | Filling range | Machine size | Machine weight |
| G1WY-100 | 10-100ml | 806(L) × 180(W) ×690(H)mm | 35 Kg |
| G1WY-300 | 30-300ml | 880(L) ×230(W) ×665(H)mm | 35Kg |
| G1WY-500 | 50-500ml | 880(L) × 230(W) ×665(H)mm | 35Kg |
| G1WY-1000 | 100-1000ml | 1065 (L) ×230(W) ×665(H)mm | 38Kg |
| G1WY-3000 | 1000-3000ml | 1250(L) ×400(W) ×300(H)mm | 45Kg |
| G1WY-5000 | 1000-5000ml | 1390(L) ×420(W) ×380(H)6mm | 55 Kg |
| Filling speed | 10-35n/min(take water for example) | ||
| Air pressure | 0.4~0.6mpa | ||
| Filling error | ±1% | ||
| Machine can offer customized according to customer request | |||
| Detail show |

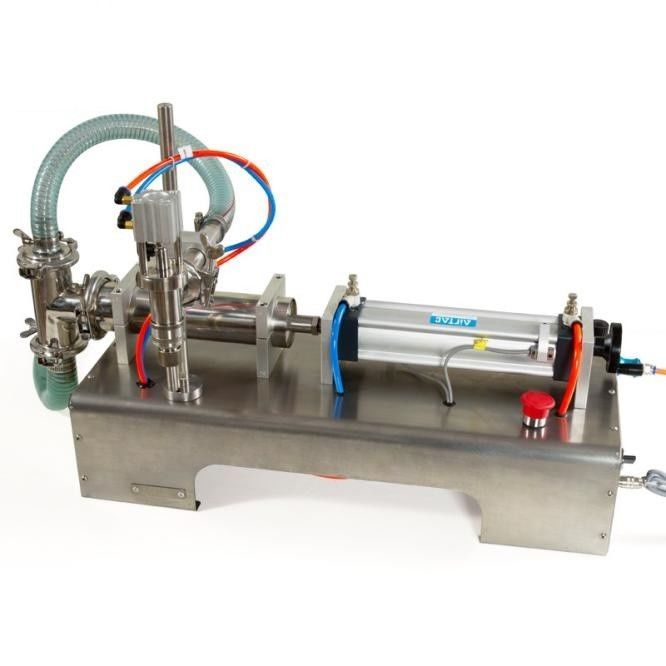

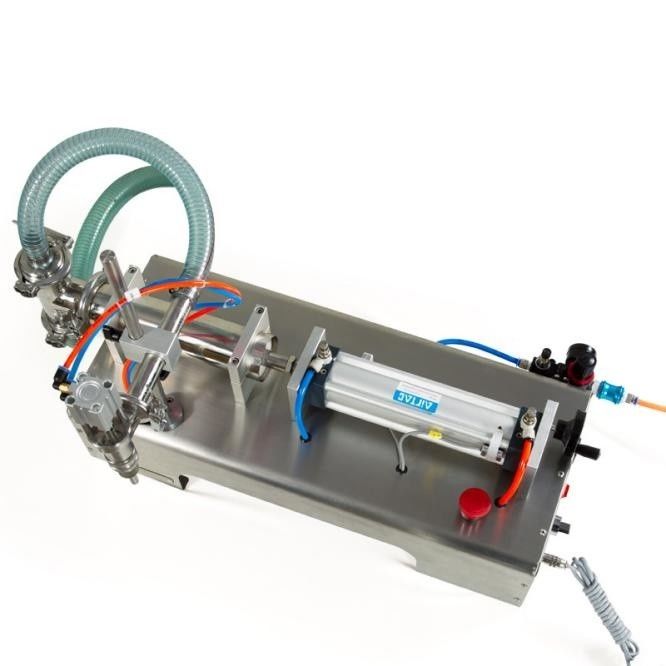

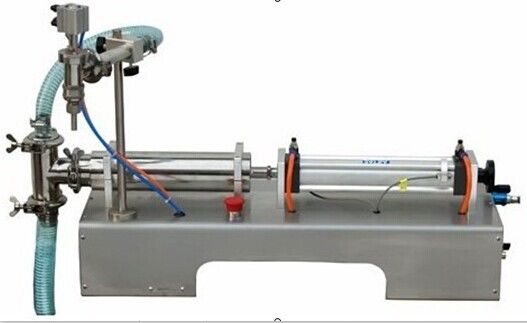

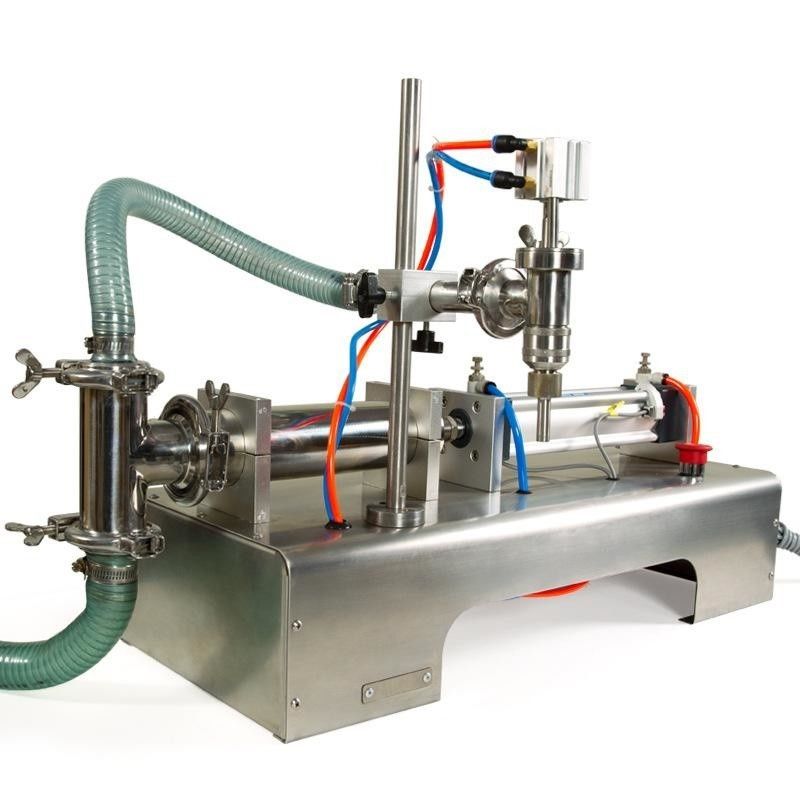

Pictures of piston liquid filler:
Pictures of samples
