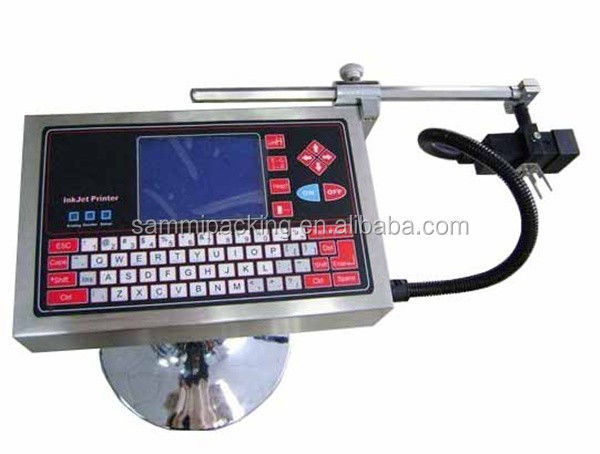

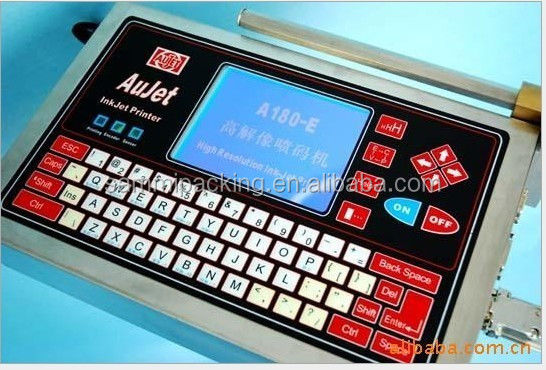

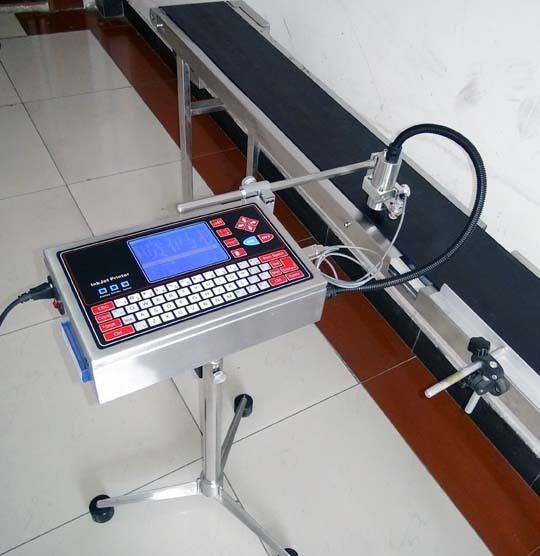

A180F Automatic Inkjet Coding Machine
Advanced Printing Features
- Pre-installed with National Chinese library including Grade 1 & Grade 2 (over 6000 characters) with PinYin Input method
- 4 built-in font libraries (SongTi, HeiTi, KongxinTi, Dot Matrix) with mixed layout capability
- Bilingual interface (Chinese/English) for international market compatibility
- Multi-line printing: 1-15 lines of English/number or 1-8 lines of Chinese characters
- Large and small character printing capability - two functions in one machine
- Forced ink jet function prevents nozzle clogging during extended idle periods
- Unlimited symbol and text length input without width/height ratio restrictions
- Standalone operation without computer connection required
- USB interface for computer connectivity and logo/symbol transfer
Technical Specifications
| Printing Resolution | 200 DPI |
| Printing Fonts | High-definition printing fonts with 4 built-in libraries |
| Printing Content | Trademarks, logos, graphics, texts, numbers, special signs |
| Line Levels | A180-E1 (1 Line), A180-E2 (2 Lines), A180-E3 (3 Lines), A180-E4 (4-15 Lines) |
| Character Height | 1mm~18mm (1,2,3,4,5,6,7,8,10,12,15,18mm) |
| Printing Distance | 5-10mm from spray head to printing objects |
| Automatic Printing | Date, time, lot No, Shift No, Sequence No. |
| Message Memory | 100 messages and 100 symbols storage capacity |
| Text Length | Maximum 200 characters per message |
| Printing Speed | Maximum 35 meters/minute (unaffected by line count) |
| Ink Colors | Black, Red, White, Blue |

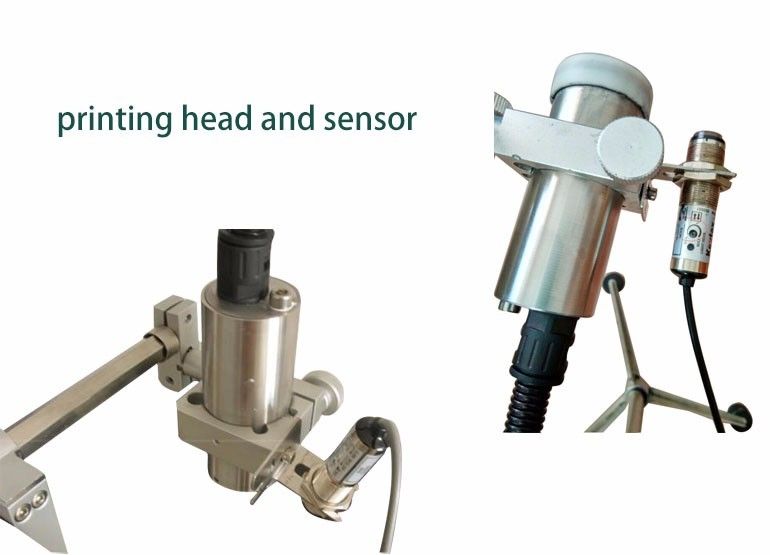

| Printing Direction | Sprayhead rotates 180° for forward, reverse, vertical downward printing |
| Power Supply | Auto voltage selection AC 110-220V |
| Energy Consumption | Average lower than 100W |
| Operating Conditions | Temperature: 1°C-37°C; Humidity: 30% - 70% |
| Printer Dimensions | 34.7x22x10cm (Packaging: 66x43x31cm; Weight: 15KG) |
Compatible Materials & Applications
Materials: Metal, plastic, wood, aluminum film, carton, building materials
Applications: Mobile phone displays, drink lids, food packaging bags, medicine packaging, steel-plastic doors & windows, aluminum alloy, batteries, plastic tubes, steel plates, PCB, chips, woven bags, eggs, brakes, mobile phone housings, cartons
Ink System
Uses solvent-based environmentally friendly ink cartridges or oil-based ink cartridges. No gas source or dilution required.
Product Gallery
Print Samples
Manufacturer Information
Dongguang Sammi Packing Machine Co., Ltd was established in 2010 as a professional manufacturer of packaging machinery. We specialize in filling machines, capping machines, coding machines, sealing machines, and labeling machines for food, cosmetic, pharmaceutical, beverage, and chemical industries.
With extensive expertise in packaging machinery, we provide high-quality, efficient packaging equipment at competitive prices. Our products have earned high reputation from customers worldwide and sell well in mainland China, Europe, America, Southeast Asia, and the Middle East.
Packaging & Shipping
Packaging: Standard export wooden case or carton packaging
Lead Time: 1-3 days
Delivery Time: Depends on shipping method
Shipping Methods
• Small machines: Express shipping (DHL, EMS, FedEx) or air freight
• Large orders/machines: Sea freight (FOB Shenzhen/CIF)
Payment Methods
We accept LC, TT, West Union, Paypal, and MoneyGram
