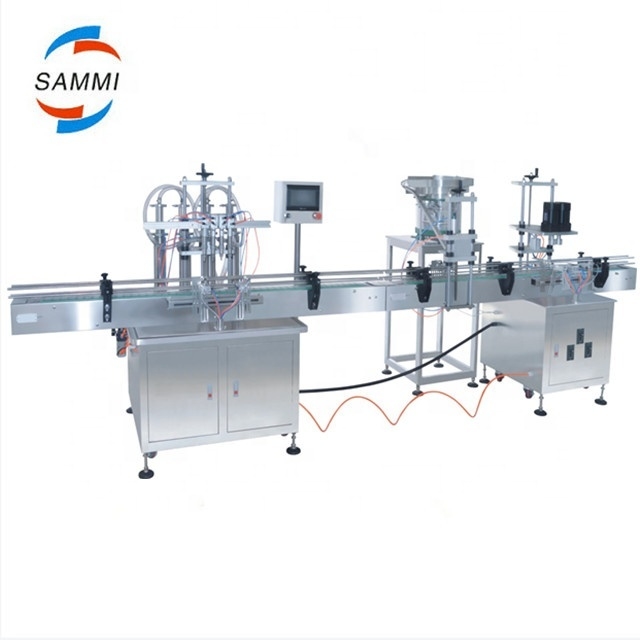

Automatic liquid filling capping and labeling machine
Product Description
Product Description
This Model is special for Filling Production Line, and it is simple and reasonable in design, high in accuracy and easy in operation. Suitable for filling liquid in the industries of pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticide and special trades. With no need for power supply, the machine is safe and with the personalized design, can meet the modern enterprises' requirements. This machine is the semi-automatic double piston liquid filling machine, working under the state without electricity, it is safer to operate. This machine has two filling heads in-phase, improving the work efficiency. And the pneumatic part adopts the pneumatic components of Germany FESTO and Taiwan's AirTac. The part contacting materials is made of 316L stainless steel. With adjustment handle of filling volume, the filling speed can be adjusted at will, with high filling accuracy. Filling head adopts anti-leakage, anti-pull and with diving filling device.
Applications: The fully automatic filling and capping machine is liquid filling line which is designed to fill bottles and jars with products of various viscosity, range from water thin liquids to thick creams. Widely used in cosmetic, food, pharmaceutical, oil and specialty industries. These inline piston filling machines can be option with different fill heads for meet different production capacity, variable speed drive conveyor, adjustable stainless steel frame, easy to operate PLC control panel.
Feature: 1, 304 Stainless steel heavy duty stainless steel welded C frame. 2, All parts contact with material is SUS316, sanitary, Teflon, Viton and hoses per your requirements. 3, Real time adjustability. 4, No bottle no fill, PLC control 5, Accurate filling volume, within ±1% and a total bottle counter. 6, Easy to maintain, no special tools are required. 7, Special seals or hoses by order. 8, Blocked nozzles for products that tend to string and drip. 9, Diving nozzles for bottom up filling of foaming products. 10, Bottle mouth localizer. 11, The filling head can also be added to suit your special need. The automatic filling line links the capping machine, coding machine, labeling machine, sleeving shrink machine and shrink tunnel to the fully automatic filling line.
Automatic bottle filling capping and labeling machine operation step:
Automatic Liquid Filling Production Line: quick and accurate filling with Taiwan's AirTac component.
Technical specifications:
Machine model
SM-100-4
SM-300-4
SM-500-4
SM-1000-4
SM-2500-4
SM-5000-4
Filling range
(10-100ml)×6
(30-300ml)×6
(50-500ml)×6
(100-1000ml)×6
(250-2500ml)×6
(500-5000ml)×6
Air pressure
4-6kg/cm2
4-6kg/cm2
4-6kg/cm2
5-8kg/cm2
5-8kg/cm2
5-8kg/cm2
Filling speed
30-50bottles/min
30-50bottles/min
30-50bottles/min
30-50bottles/min
30-50bottles/min
20-40bottles/min
Filling precision
Liquid ≤±1%, paste≤±2%
Liquid ≤±1%, paste≤±2%
Liquid ≤±1%, paste≤±2%
Liquid ≤±1%, paste≤±2%
Liquid ≤±1%, paste≤±2%
Liquid ≤±1%, paste≤±2%

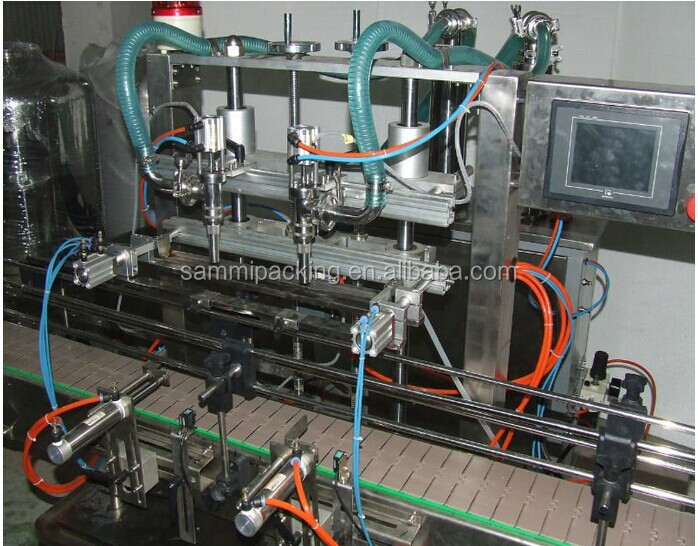

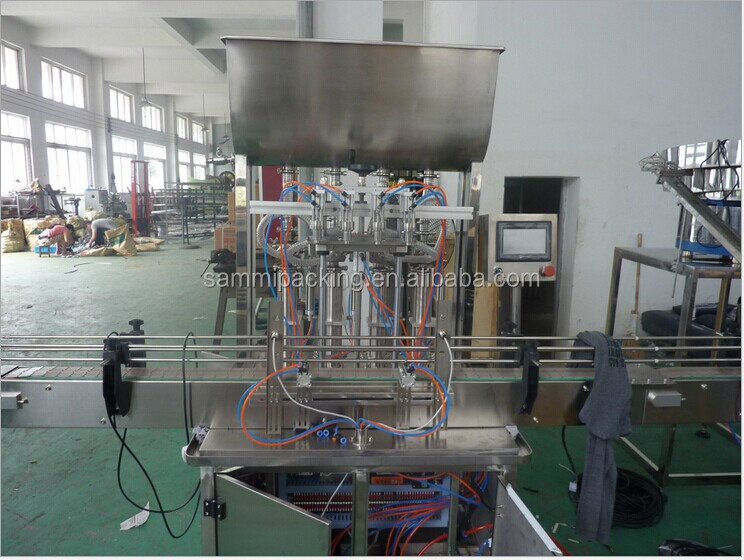

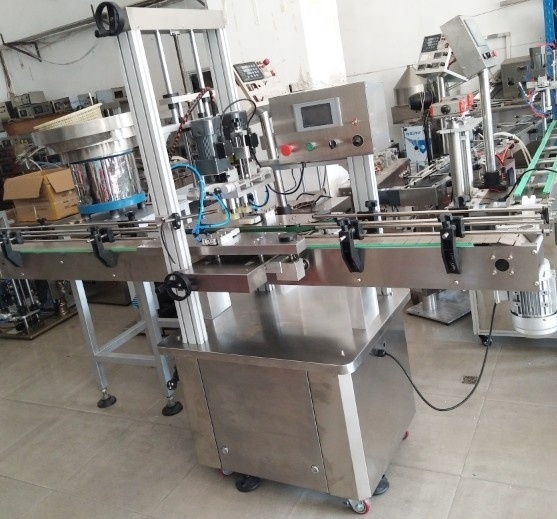

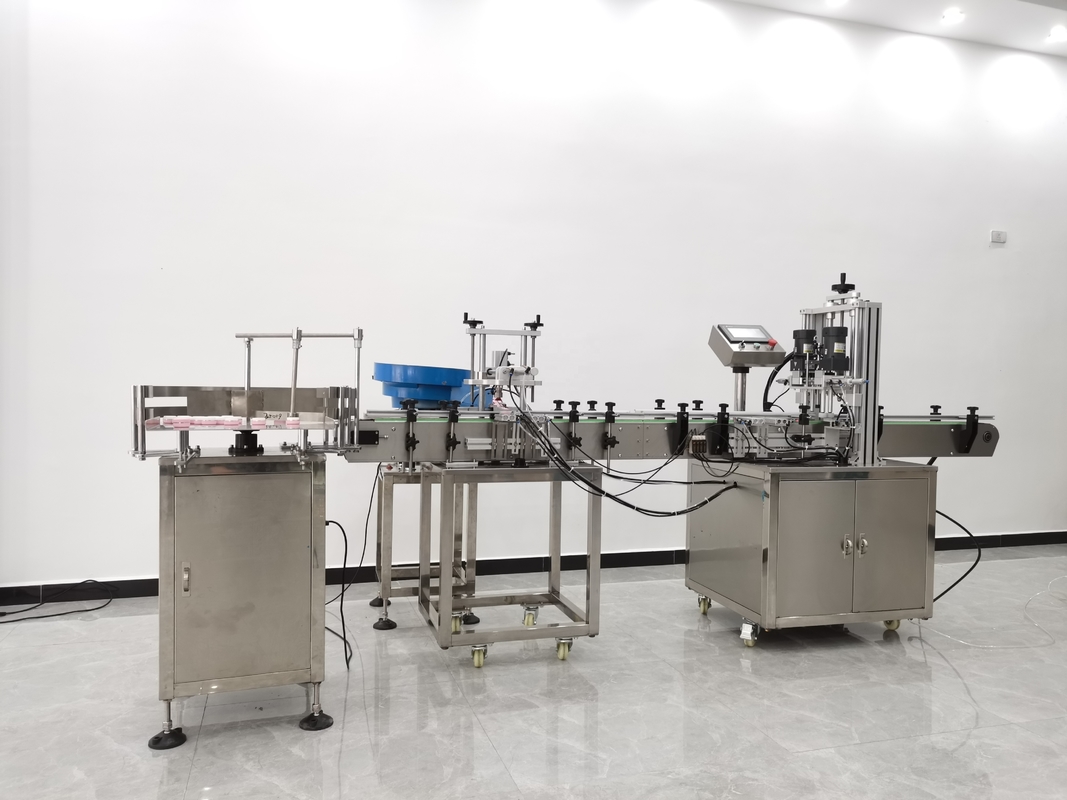

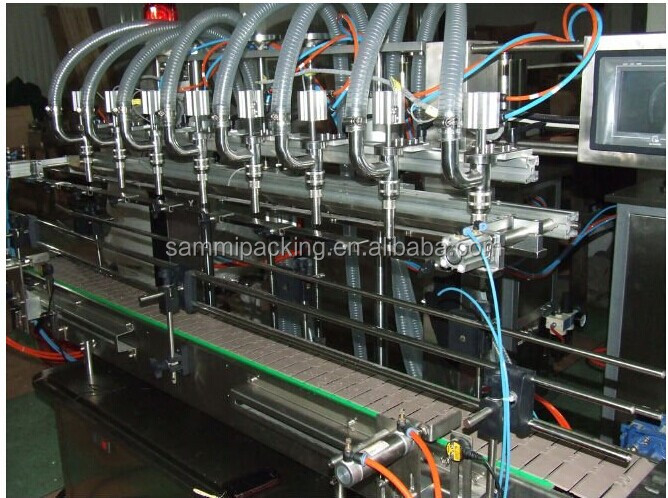

Machine detail:
Filling sample:
Packaging & Shipping
Packaging & Shipping
1, Trade Term of product
MOQ
1 set
Supplier Ability
300set/week
Payment Term
T/T, L/C, Western Union, PayPal, Secure Pay
Package
wooden box, cartons, honeycomb paperboard box
Delivery Term
FOB, EXW,CIF, Express delivery
Port
Shenzhen
Delivery Time
1-3 days after payment
Shipping Time
A, by express:about 5 days to arrive
B, by air: about 7 days to destination airport
C, by sea:15-30 days to destination port
2, Packaging photo
Company Information
About Us
1, Introduction of company
Dongguang Sammi Packing Machine Co.,Ltd was found in 2010, we are the professional manufacturer of packaing machinery,specialized in filling machine, capping machine, coding machine, sealing machine,label
ling machines etc,widely apply in food,cosmetic, pharmacy,beverage and chemical industries.
With expertise and inside knowledge of packaging machinery, we provide our clients with additional value
by supplying top quality, high efficient packaging equipment base on competitive price.
Our product obtains high reputation from customer. They sell well in mainland China, as well as many
countries in Europe, America, Southeast Asia, the Middle East, because of high quality, lower prices,
fast speed delivery and satisfying services.
2, Certifications
Our Services
Our Service
1) Warranty Time: 1 year, within this period we will send spare part freely to you if there are any problems with them (except artificial damage).
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before packaging.
3) Technical services: We have professional engineers available to service machinery overseas, once we receive your inquiry about fault; we will reply you within 24 hours, and offer you any technical service about machine.
4) Lifelong Services: We provide lifelong services for all the products we sold out, and supply the spare
parts with competitive price.
5) File Services: we can supply Manual Specification,Operate Video and other files you need.
6) Language: We have a sales team who are good at English to ensure zero communication barriers.
