Home > Products > Automatic Packaging Machine >
100-1000ml Semi Automatic Double Filling Heads Volumetric Piston Liquid Dosing Machine

100-1000ml Semi Automatic Double Filling Heads Volumetric Piston Liquid Dosing Machine

semi automatic liquid dosing machine

volumetric piston filling machine

double head liquid filling machine

Contact Us
Request A Quote
100-1000ml Semi Automatic Double Filling Heads Volumetric Piston Liquid Dosing Machine 100-1000ml Semi Automatic Double Filling Heads Volumetric Piston Liquid Dosing Machine 100-1000ml Semi Automatic Double Filling Heads Volumetric Piston Liquid Dosing Machine 100-1000ml Semi Automatic Double Filling Heads Volumetric Piston Liquid Dosing Machine 100-1000ml Semi Automatic Double Filling Heads Volumetric Piston Liquid Dosing Machine 100-1000ml Semi Automatic Double Filling Heads Volumetric Piston Liquid Dosing Machine 100-1000ml Semi Automatic Double Filling Heads Volumetric Piston Liquid Dosing Machine
Product Details
应用:
饮料, 食品
包装类型:
包, 瓶, 易拉罐, Pouch, 自立袋
包装材料:
木质
自动化程度:
半自动
动力类型:
气动
电压:
220V/110V
原产地:
Guangdong, China
品牌:
SAMMI
尺寸(长×宽×高):
86*42 * 36cm
保修期:
1年
核心卖点:
操作简便
填充物料:
水, Oil, Juice
灌装精度:
0.1G
机械测试报告:
可提供
视频出厂验货:
可提供
重量 (KG):
50
颜色和页面:
单色
印刷材料:
金属，塑料，木材，纸箱或建筑材料表面
打印速度:
最大35米/分钟
墨盒的颜色:
黑色，红色，白色，蓝色 (取决于墨水的颜色)
主界面:
喷头与印刷对象之间的距离应为5-10mm
保修时间:
1年
字符高度:
1mm ~ 18mm
印刷方向:
喷头可以旋转180 ° 向前，反向，垂直向下
型号:
A180-E
本地服务位置:
无
Highlight:

semi automatic liquid dosing machine

,

volumetric piston filling machine

,

double head liquid filling machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$360-495 / set
RELATED PRODUCTS
Good price Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE online

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Get Best Price
Good price Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE online

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Get Best Price
Good price Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter online

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Get Best Price
Good price Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry online

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Get Best Price
Contact Us
Contact Now
Product Description

100-1000ml double filling heads volumetric piston liquid dosing machine





Product Description



Principle:



GFA series of semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.
  . Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
  . Some contact materials are used 316 L stainless steel materials, in line with the GMP requirements.
  . Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.



Characteristic:



   1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.

   2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.

   3. Filling volume, filling speed can be adjustable, filling accuracy is high.

   4. Adopt the anti-drip, Anti-drawing and lifting filling device.



Technical Parameters:



 Model:

 G1WY-2Y-1000

 Filling range:

 100-1000ml

 Filling material:

 low viscosity liquid

 Driven:

 electric and pneumatic

 Air compressor:

 1.5hp

 Applicable pressure:

 0.4-0.6mpa

 Working head:

 single head

 Nozzle size :

 4mm/8mm/12mm( can be customize)

 Packaging size:

 122 x 36 x50 cm

 Gross weight:

 50kg

 Automatic grade:

 semi auto & automatic

 Machine material:

 stainless steel

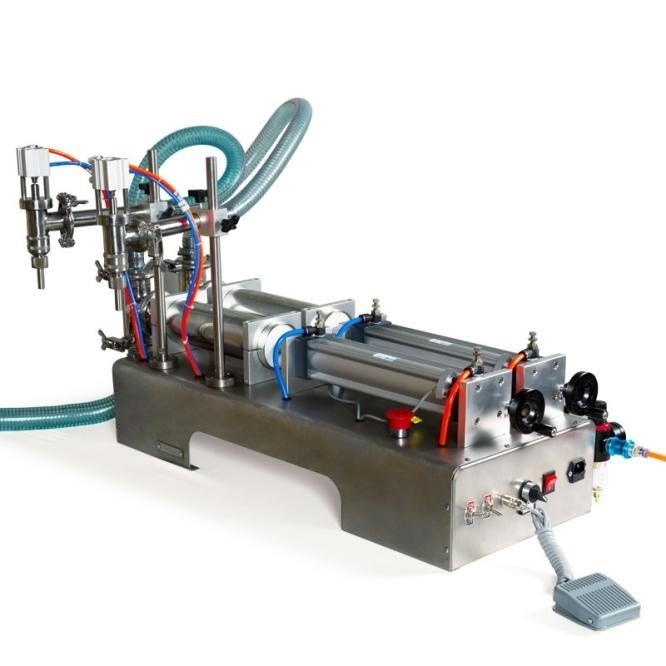

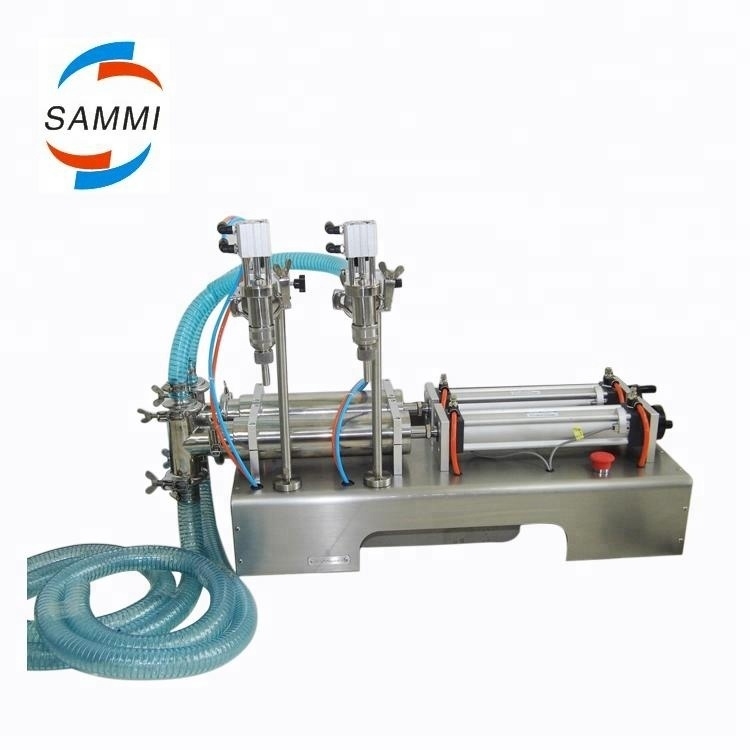

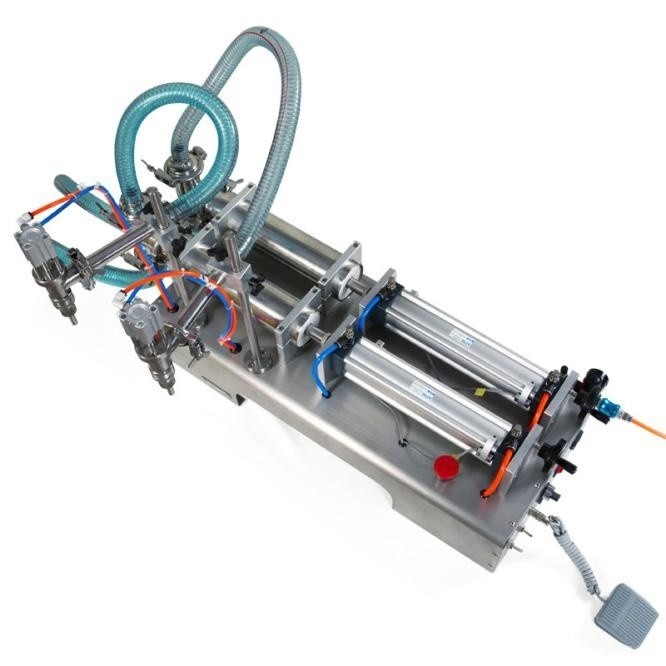

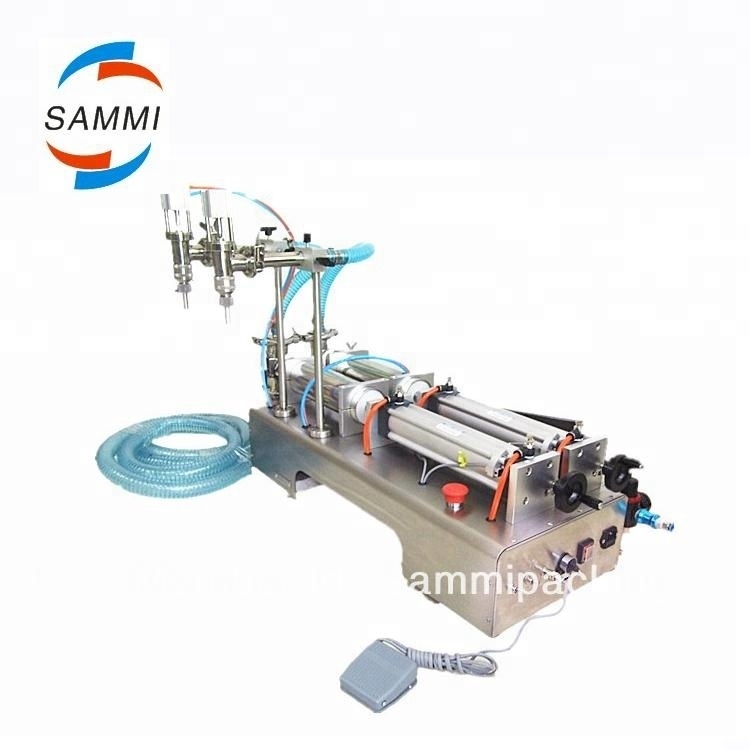

Pictures of double head liquid filling machine

100-1000ml Semi Automatic Double Filling Heads Volumetric Piston Liquid Dosing Machine 0100-1000ml Semi Automatic Double Filling Heads Volumetric Piston Liquid Dosing Machine 2100-1000ml Semi Automatic Double Filling Heads Volumetric Piston Liquid Dosing Machine 4100-1000ml Semi Automatic Double Filling Heads Volumetric Piston Liquid Dosing Machine 6100-1000ml Semi Automatic Double Filling Heads Volumetric Piston Liquid Dosing Machine 8

100-1000ml Semi Automatic Double Filling Heads Volumetric Piston Liquid Dosing Machine 10100-1000ml Semi Automatic Double Filling Heads Volumetric Piston Liquid Dosing Machine 12100-1000ml Semi Automatic Double Filling Heads Volumetric Piston Liquid Dosing Machine 14100-1000ml Semi Automatic Double Filling Heads Volumetric Piston Liquid Dosing Machine 16

100-1000ml Semi Automatic Double Filling Heads Volumetric Piston Liquid Dosing Machine 18

100-1000ml Semi Automatic Double Filling Heads Volumetric Piston Liquid Dosing Machine 20



100-1000ml Semi Automatic Double Filling Heads Volumetric Piston Liquid Dosing Machine 22
