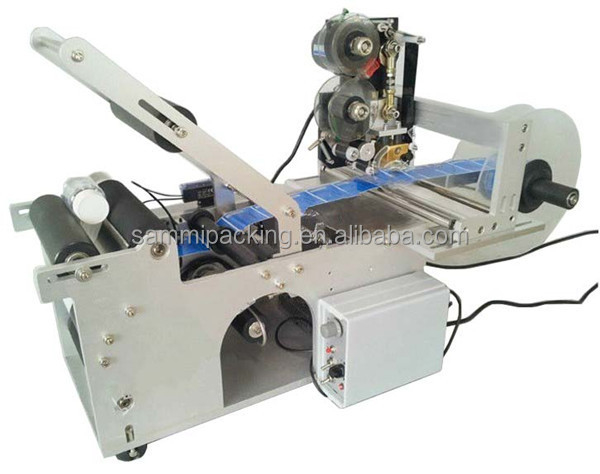

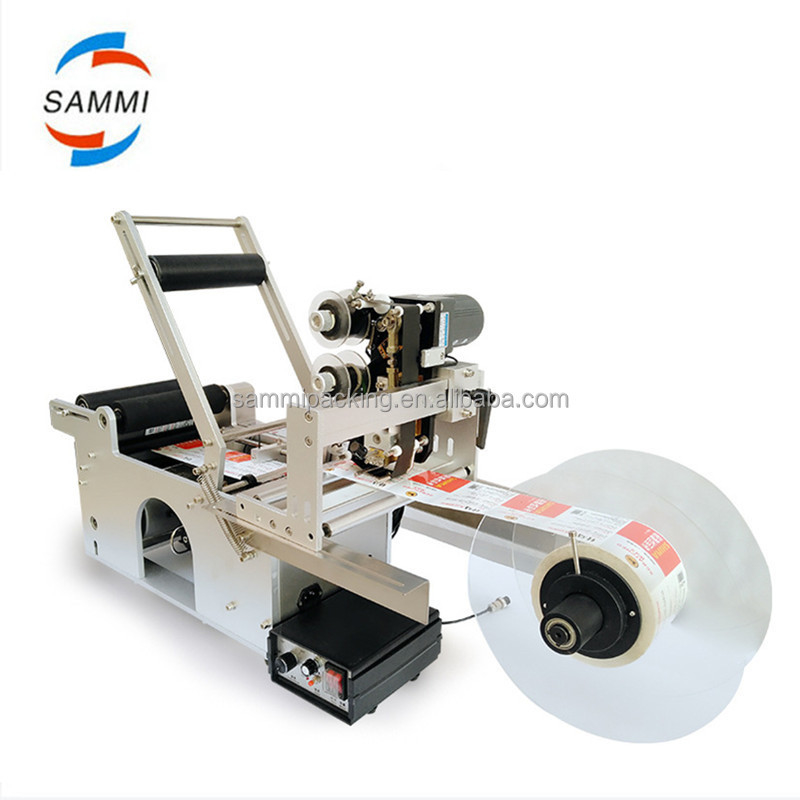

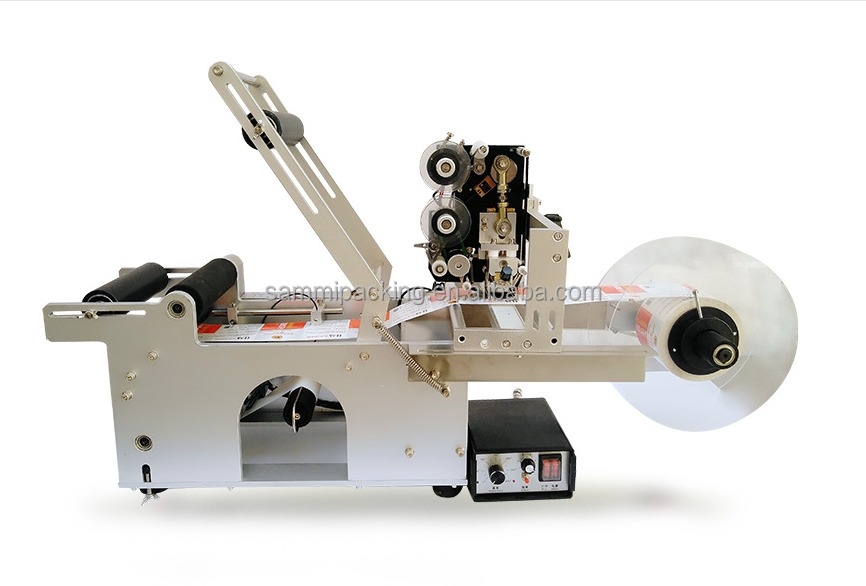

Suitable for different size of adhesive label or adhesive film on all kinds of round bottle,High accuracy and high speed,dispensing & labeling automatically.
It is used in PET bottle, plastic bottle, glass bottle, Metal bottle and so on round bottle etc.
Product discription;
1, Small structure takes up less space and easy to move and load.
2, Good labeling precision and stability; Neat, no wrinkle, no bubble.
3,It has powerful function. It can achieve circumferential position labeling and non-position labeling easily by switch control.
4,It satisfy the circumferential position labeling and non-position labeling on diameter between 12-120mm bottles.
5, It is easy to use and adjust. The new workers can use or adjust it easily after simple training.
6,Conveyer parts are completely covered to avoid the abnormal conditions which make the use safer.
7, The clever design which allow user to mechanically adjust some structure combination and label winding, makes it easy to adjust the labeling position freely. All these make it easy to change products and wind labels. 8, Has 2 control methods: automatic and semi-automatic. Workers can choose either sensor control or feet step control for labeling according to reality.
9, Whole equipment is mainly made of stainless steel and high level aluminum alloy. The whole structure is strong and harmonious.
10, Has fault stop function, production counting function.
Technical parameters:
Labeling precision
less than ±0.5mm
Efficiency
25-50 piece/minutes
The size of work-piece
15-120 mm in diameter
Tag width
8-150 mm
Tag length
15-315 mm
Power supply
220 V 50 HZ
The motor power
120 w
machine size
650 x 450 x 450 mm
weight
25KG
The machine can be customized according to customer’s special requirement..
