Hot Sale Steam Generator Built-in Steam Shrink Tunnel Machine for Bottles Factory Wholesale Price

steam generator shrink tunnel machine

built-in steam tunnel for bottles

automatic bottle packaging machine

Place of Origin:

Guangdong, China

Brand Name:

SAMMIPACK

Request A Quote

Hot Sale Steam Generator Built-in Steam Shrink Tunnel Machine for Bottles Factory Wholesale Price

Product Details

Application:

Beverage, Commodity, Food

Packaging Type:

Belt, Foil

Packaging Material:

Wood

Automatic Grade:

Semi-automatic

Driven Type:

STEAM

Voltage:

220V/50HZ/HZ

Dimension(l*w*h):

1520x400x1250mm

After-sales Service Provided:

Online Support, Video Technical Support

Warranty:

1 Year

Key Selling Points:

Long Service Life

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Core Components:

Motor, Other

Weight (KG):

107

Type:

Steam Shrink Tunnel Machine

Tunnel Size:

1000x100x320mm

Max.Packing Size(mm):

80 X 290mm

Conveyor Motor:

AC90W/220V

Shrink Film:

POF,PVC,PP

Conveyor Speed:

0-10m/min

Power:

9KW

Max Loading Weight:

15kg

Function:

Label Shrink Packing

Weight:

Highlight:

steam generator shrink tunnel machine

built-in steam tunnel for bottles

automatic bottle packaging machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$600-800 / set

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Get Best Price

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Get Best Price

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Get Best Price

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Get Best Price

Contact Now

Product Description

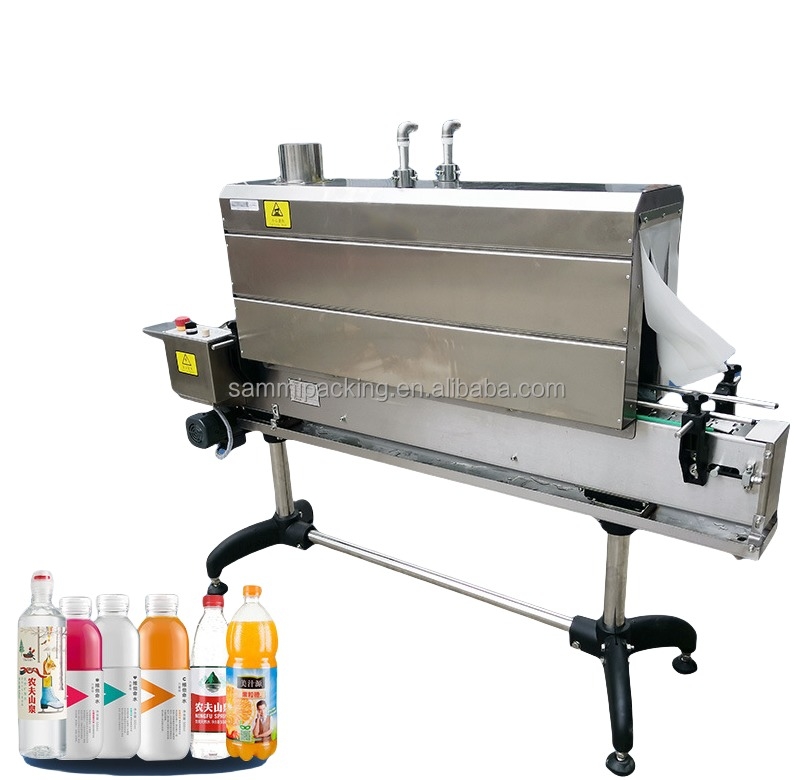

BS-1135 steam label shrink machine sleeve shrink tunnel packing machine

Product Description

Application:

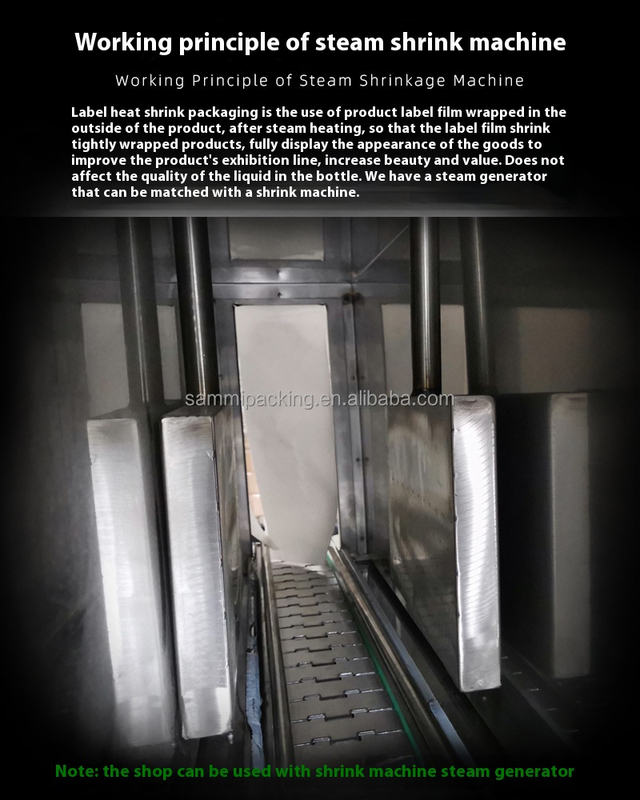

Itis mainly used to shrink label of product in bottle shape, can shape or barrel shape with glass bottle, plastic bottle or paper cup. The label either on the top, in the middle, at bottom of bottom or wrapping the whole bottle is able to be shrank with different type model. It is widely applied in the industry of food, medicine, cosmetic and pesticide, etc.

Feature

1.This bottle label steam shrink tunnel is our new-developed shrink machine. It adopts steam as heat source,
and has features of high speed, even heating, no wrinkle, adjustable power and perfect shrink effect.

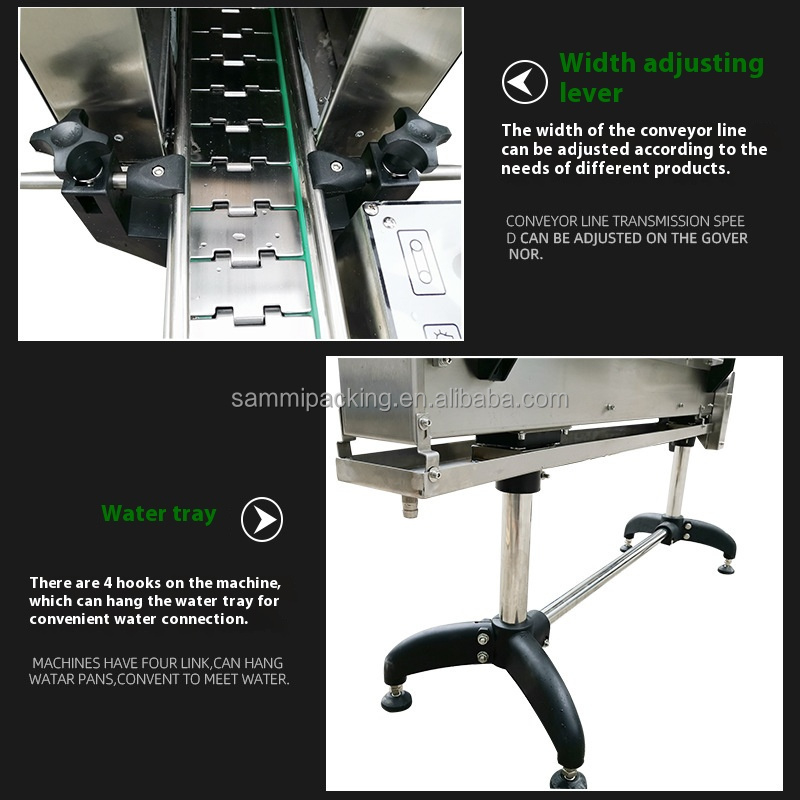

2. This not only saves energy, but also accords to international security standard. Whole machine adopts water-proof design, and S/S water receiver is mounted in the bottom in order to collect condensed water. It is easy to operate and maintain, and widely applied in the industry of mineral water, pure water, carbonated drink and tea etc.
3. the bottle label steam shrink packing machine has advantage of high efficiency in energy-consumption, simple operation and easy adjustment. Achieve perfect shrink effect with lowest power consumption. Any shape bottle is able to reach nice-looking shrink effect after simple adjust.

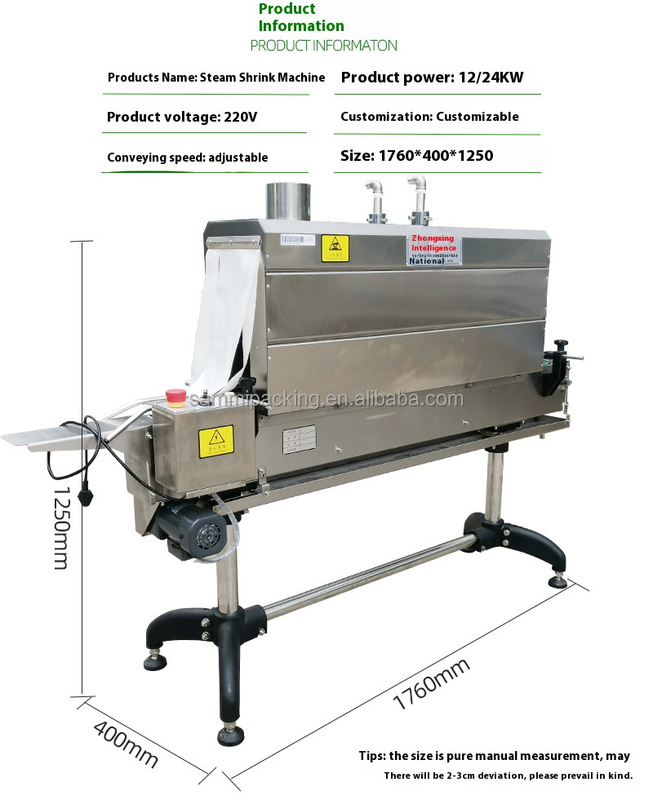

Specification

Model	BS-1135
Volt	220V 50/60Hz
shrink tunnel width	110mm
max suitable width	100mm
max suitable height	29cm
speed	5000-7500BPH
Steam pressure	0.1Mpa
steam consumption	8kg/H
Shrink temperature	75-85℃
Suitable material	PVC PP PE POF
Machine size	1760x450x125mm
Weight	168kg

Product Display
