Technical Data
Printing Resolution DPI: 200 DPI
Printing Fonts:High-definition printing font (Print Font)
It’s installed with National Chinese library, Grade 1 & Grade 2 (over 6000 characters).The mainframe is equipped with 4 fonts library ( SongTi, HeiTi, KongxinTi, Dot Matrix font). When editting, these 4 fonts can be mixed for layout at the same time. If other fonts are needed, it can be transfered via computer.
Printing Symbols: It can print various trademarks, logos,graphics, texts, numbers, and special signs,that are not limited by the ratio of length & width and length requriement.
Levels of lines: A180-E1 ( 1 Line printer); A180-E2 ( 2 Lines printer); A180-E3 ( 3 Lines printer); A180-E4 ( 4 -15 lines printer)
Height of Character:Print height range is 1mm~18mm(1,2,3,4,5,6,7,8,10,12,15,18mm)
Printing Distance: The distance between the spray head and printing objects should be 5-10mm
Automatic Printing: Date, time, lot No, Shift No, Sequence No. etc.
Message Memory: Save up to 100 messages and 100 symbols
Texts Length:Max. 200 characters per message
Sequence No: 1-9 variable numbers
Printing Speed: Maximum 35 meters /minute and the speed isn’t influenced when printing more lines. .
Colors of Ink Cartridges:Black, Red, White ,Blue
Printing Direction: Sprayhead can be rotated 180° to forward, reverse, vertical downward.
Printing material: Metal, plastic, wood, aluminum film, carton or building material surface ect.
Applicable products:Display screen of mobile phone, drink lids, food package bags, medicine package, steel-plastic door & window, aluminum alloy, battery, plastic tube, steel plate, PCB, chip, woven bag, egg, brake, housing for mobile phone, carton etc.
Ink Cartridge:Solvant based environmentally friendly ink cartridge or oil based ink cartridge.No need to use gas source or dilution.

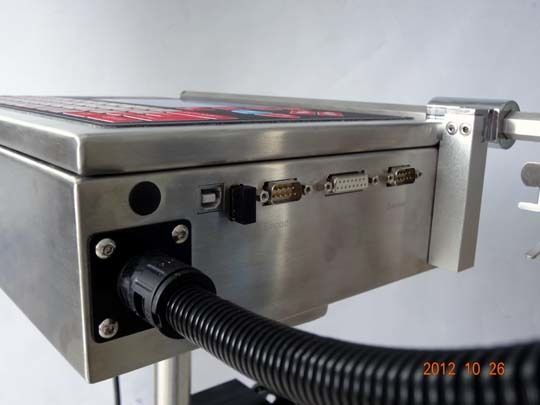

Main Interface:USB, encoder,sensor, cables
Printer Dimension:34.7x22x 10cm; Packaging size 66x43x 31cm ;G.W:. 15KG
Adjustable standard for mainframe Can be adjusted 50-75 CM up or down. Can lean forward or backward slightly
Auto voltage selection:AC 110- 220V
Energy Consumption:Average lower than 100W
Operation Temperature:1°C-37°C;Humidity 30% - 70%
Status display: printing indicator lamp, encoder and indicator light of sensor

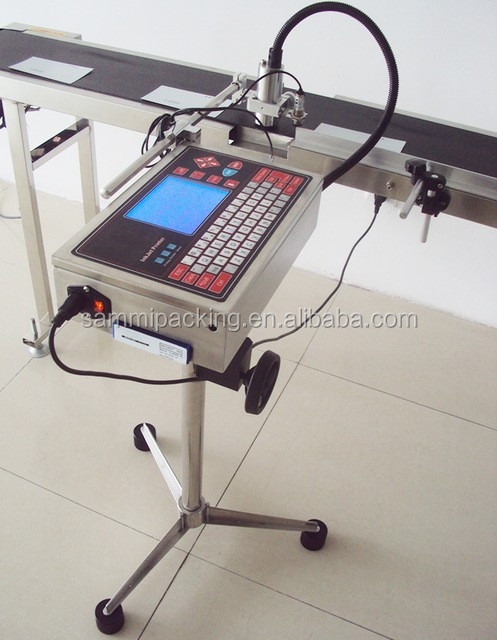

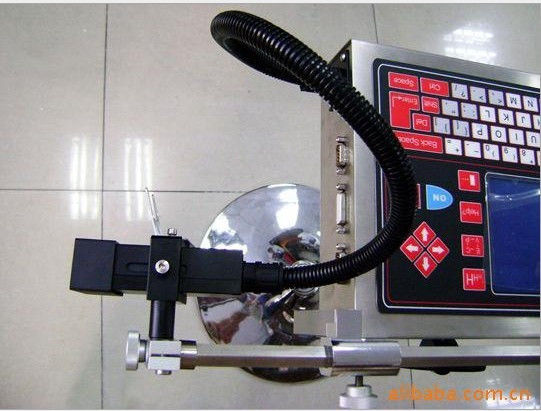

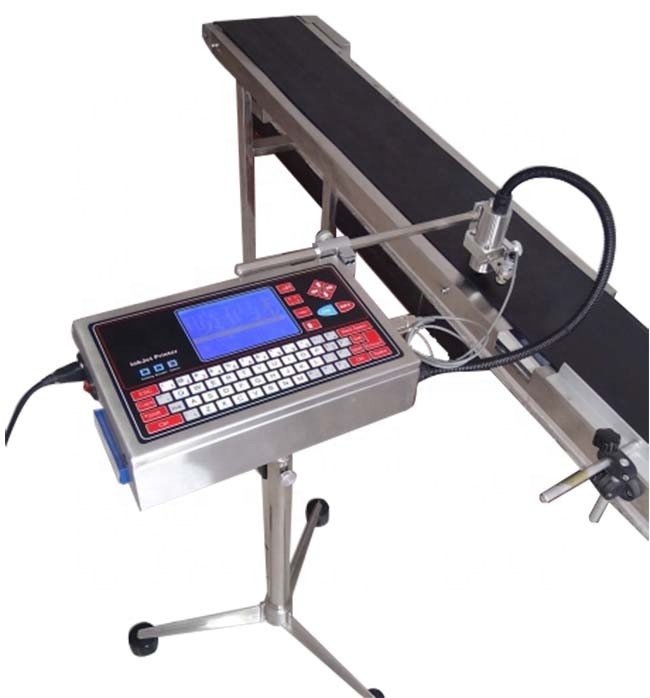

Machine pictures:
