GFA-100 Horizontal Single Head Pneumatic Piston Yogurt Dispenser

pneumatic yogurt dispenser with piston

horizontal yogurt filling machine

single head automatic yogurt dispenser

Place of Origin:

Christmas Island

Brand Name:

SAMMI

Request A Quote

GFA-100 Horizontal Single Head Pneumatic Piston Yogurt Dispenser

Product Details

Machinery Capacity:

500BPH

Application:

Beverage, Chemical, Food

Packaging Type:

Cartons

Packaging Material:

Wood

Automatic Grade:

Semi-automatic

Driven Type:

Pneumatic

Voltage:

220V/110V

Dimension(l*w*h):

96*45*38mm

Warranty:

1 Year

Key Selling Points:

Long Service Life

Filling Material:

Water, Oil, Juice

Filling Accuracy:

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Core Components:

Motor

Material:

Stainless Steel

Name:

Cream Filling Machine

Filling Range:

10-100ml 30-300ml 50-500ml 100-1000ml

Application:

MEDICAL

Local Service Location:

None

Marketing Type:

New Product 2020

Type:

Filling Machine

Condition:

New

Applicable Industries:

Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Food Shop, Food & Beverage Shops

Showroom Location:

None

Warranty Of Core Components:

1 Year

Weight:

46 KG

Highlight:

pneumatic yogurt dispenser with piston

horizontal yogurt filling machine

single head automatic yogurt dispenser

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$300-450 / set

Professional Ultrasonic Plastic Tube Sealing Machine Multi-function Soft Tube Filler and Sealer Machine with Coding Function

Get Best Price

Customized Ultrasonic Plastic Soft Tube Filling & Sealing Machine for Cosmetic Cream Toothpaste - with Servo Pump&Coding

Get Best Price

Automatic Four-Head Oral Liquid Filling Machine Simple Operation for Milk Juice Soy Sauce Vinegar Beer 5 ml to 500 ml Big Volume

Get Best Price

Hot Sale Semi Automatic Small Vial Bottle Filling and Capping Machine Glass Bottle Jar Vacuum Capping Machine

Get Best Price

Contact Now

Product Description

GFA series of semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
. Some contact materials are used 316 L stainless steel materials, in line with the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.

Technical Parameters:

Machine model	G1WY-100	G1WY-300	G1WY-500	G1WY-1000	G1WY-2500	G1WY-5000
Filling speed	5-20b/min(take water for example)
Filling range	10-100ml	30-300ml	50-500ml	100-1000ml	250-2500ml	500-5000ml
Air pressure	0.4~0.6mpa
Filling error	≤±1%
Machine size	806(L) × 180(W) ×690(H)mm	880(L) ×230(W) ×665(H)mm	880(L) × 230(W) ×665(H)mm	1065 (L) ×230(W) ×665(H)mm	1250(L) ×400(W) ×300(H)mm	1390(L) ×420(W) ×380(H)6mm
Machine weight	30 Kg	35Kg	40Kg	45Kg	60 Kg	80 Kg

Machine can be customized according to customer,s requirement

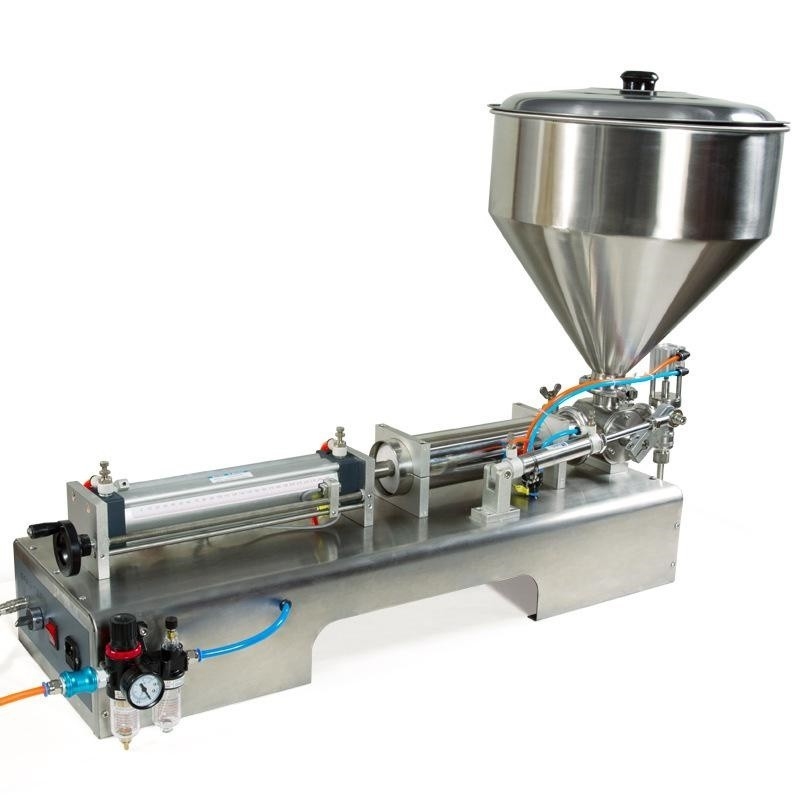

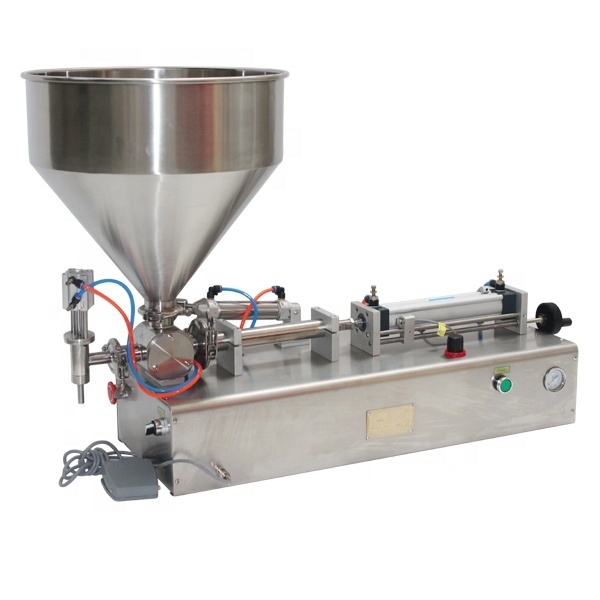

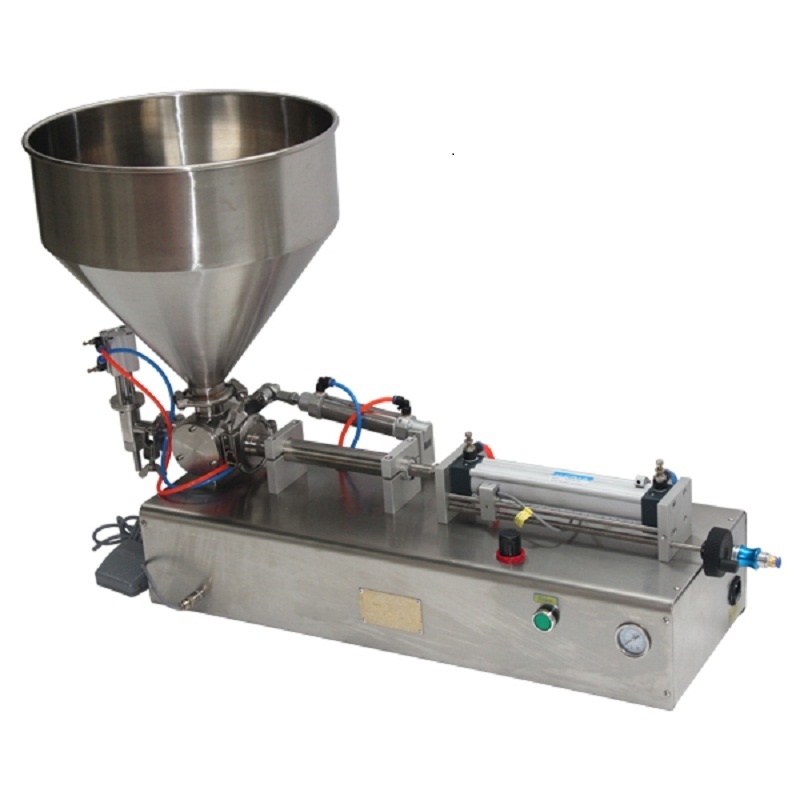

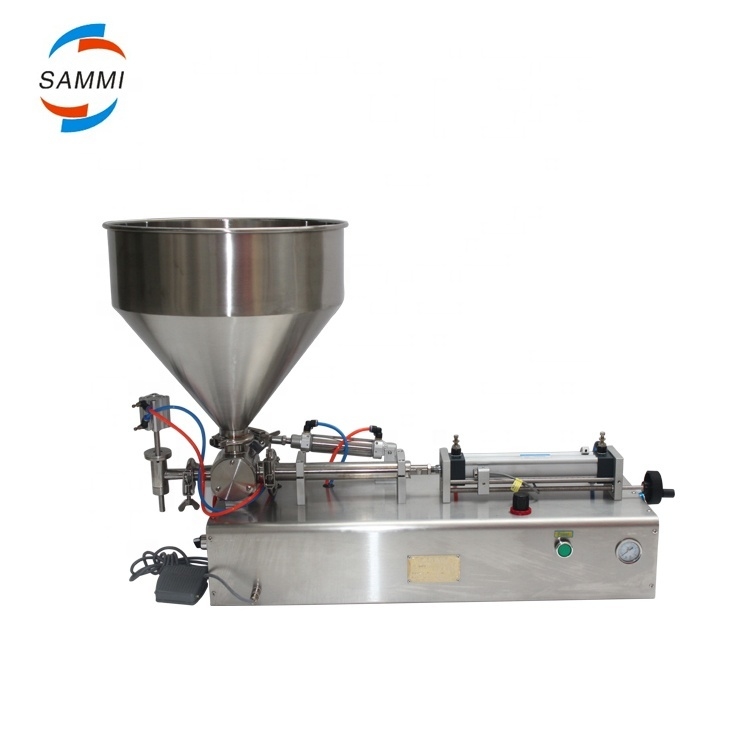

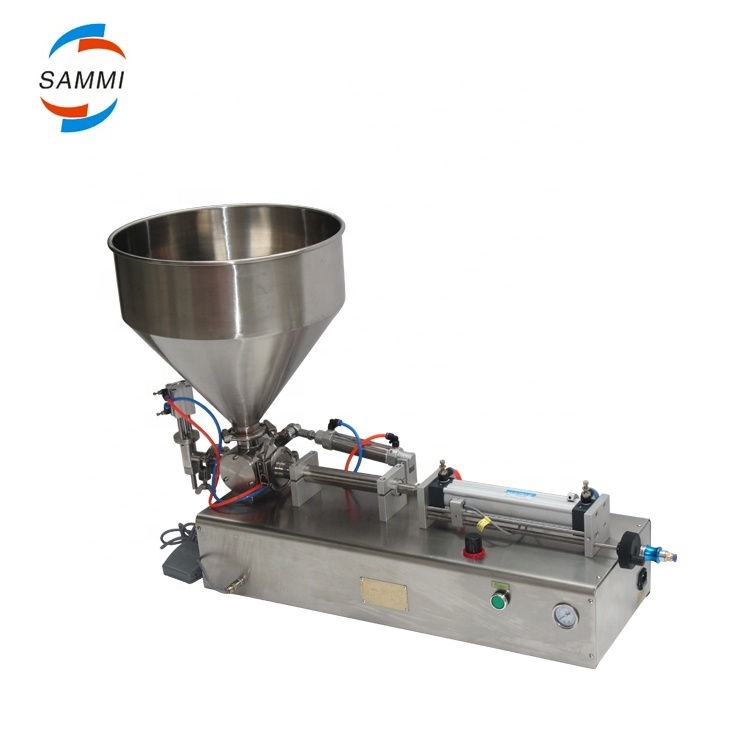

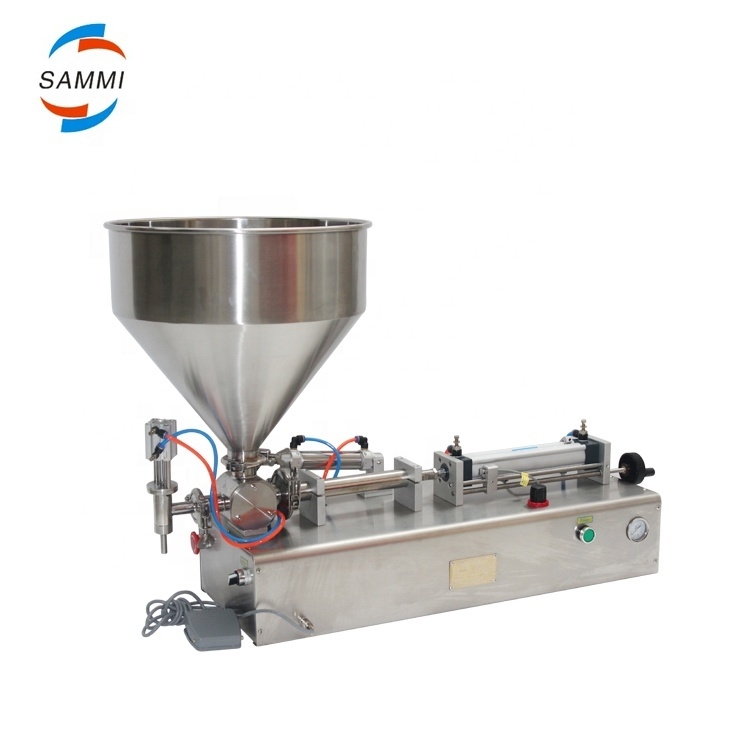

Pictures of cream filling machine
