The Newest Upgraded Sleeve Wrapper with Heat Shrink Tunnel High Efficiency Shrink Wrapping Machine for Pet pp Pvc

high efficiency shrink wrapping machine

automatic sleeve wrapper with heat shrink tunnel

pet pp pvc shrink wrapping machine

Request A Quote

The Newest Upgraded Sleeve Wrapper with Heat Shrink Tunnel High Efficiency Shrink Wrapping Machine for Pet pp Pvc

Product Details

应用:

食品, 饮料, 日用品

包装类型:

瓶

包装材料:

木质

自动化程度:

半自动

动力类型:

气动

电压:

220V /50-60HZ

原产地:

Guangdong, China

品牌:

SAMMIPACK

尺寸(长×宽×高):

2500*820 * 1680MM/1020x830 X 1980mm

售后服务体系:

视频技术支持, 在线支持

保修期:

1年

核心卖点:

使用寿命长

机械测试报告:

可提供

视频出厂验货:

可提供

核心组件:

电机

重量 (KG):

400

型号:

BZJ-5038/BSE-540

隧道尺寸 (L X W X H)mm:

1500x500x400

最大包装尺寸 (mm):

420x270x330毫米

电源:

AC20KW/220V

输送机速度:

0-10m/min

最大加载:

30kg (最大)

收缩膜:

POF,PVC,PP,PE

产品:

袖套包装收缩包装机

类型:

包装机

保修后服务:

视频技术支持

Highlight:

high efficiency shrink wrapping machine

automatic sleeve wrapper with heat shrink tunnel

pet pp pvc shrink wrapping machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$2,000-3,400 / set

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Get Best Price

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Get Best Price

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Get Best Price

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Get Best Price

Contact Now

Product Description

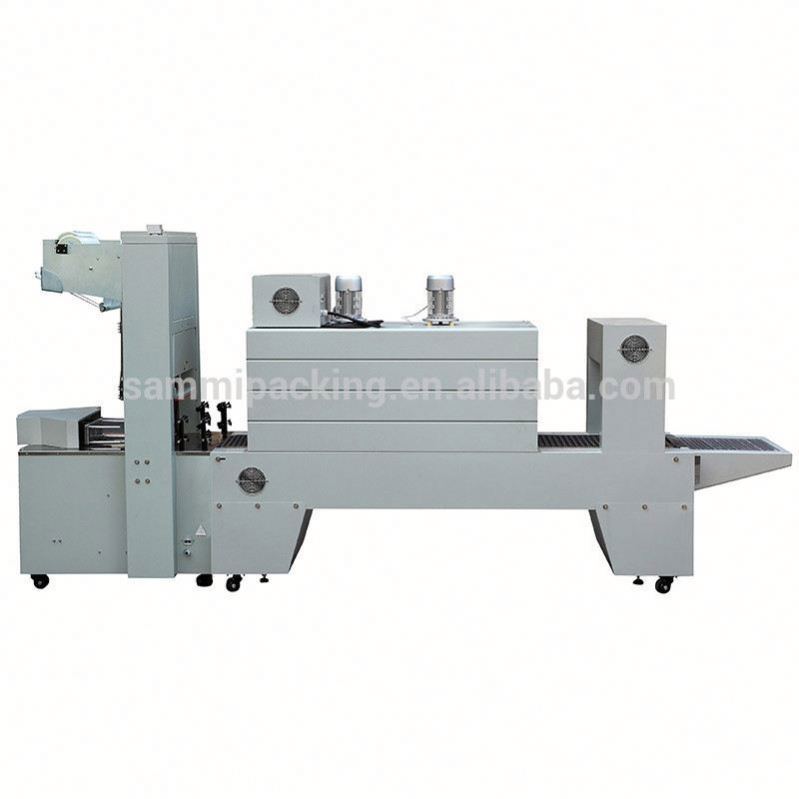

BZJ5038 Sleeve Wrapper And BSE-5040 PE Shrink Machine

Product Description

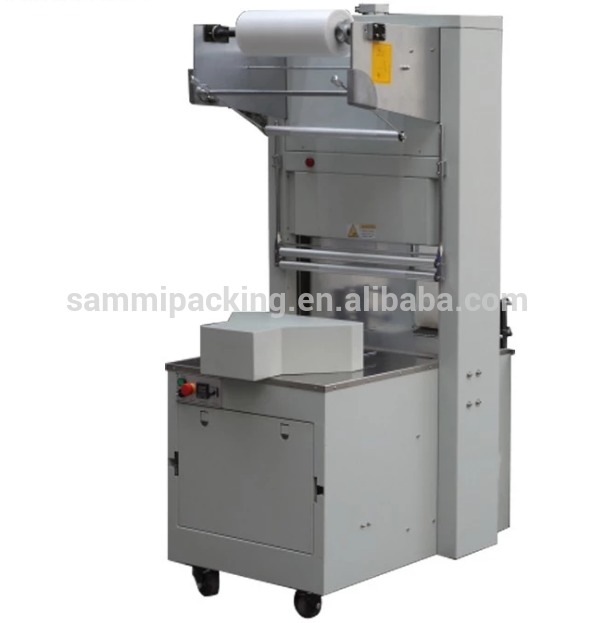

BZJ5038 series sleeve wrapper is suitable for wrapping pop-cans, bottles, etc, with bottom-tray or without bottom-tray, working with BSE-5038 or other PE shrink tunnels.

The machine adopts the Germany advanced technology and international famous brands, which makes capability stable and using long-time.

Enlarge packing range or custom-made machine according to customer's requirement.

Characteristic:
1. Upper and down electromagnetic switch prevent sealing mistakes, and protect operator.

2. Every simply and easy to adjust machine to match different packing size.

3. Simple operation and maintenance with high packing efficiency.

4. 'Schneider' AC contractor, and Intelligent temperature controller performs stable.

5. Automatic alarm security system protects machine and operator.

6. Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.

7. Two large power fans make the temperature of shrink tunnel every even and stable, this ensures the excellent effect of shrinking in one time.

8. Super cooling system cools the packing and makes the figuration perfectly.

Specifications

Model	BZJ-5038(Pneumatic)	Model	BSE5040
Power supply	220V 50-60Hz 1.8KW	Power supply	220V 50-60HZ
Capacity	2-6pcs/minute	Heater power	20KW Adjuster
Sealing time/shrink time	0.5-1.5s, 0-0.6s	Conveyer speed	0-10m/minute
Air source supply	170L/min 0.3-0.5Mpa	Tunnel size(LWH)	1500500460MM
Film width	Max. 550mm	Conveyer loading	30KGS MAX.
Film thickness	0.04-0.12mm	Shrink film	PE,POF,PVC,PP
Max. packing dimension(LWH)	450 x 270 x 350mm	Machine weight	470KG
Min. packing dimension(LWH)	250 x 60 x 60mm	Machine size	25008201680MM
Machine size(LWH)	1020 x 830 x 1980mm
Packing size	11209402000mm
