Original Nitto Denko PTFE Film Tape Nitto 923S High Temperature Resistance Tape for Lamimation Machine

Nitto Denko PTFE film tape

high temperature resistance lamination tape

Nitto 923S PTFE tape

Request A Quote

Original Nitto Denko PTFE Film Tape Nitto 923S High Temperature Resistance Tape for Lamimation Machine

Product Details

保修期:

1年

重量 (KG):

0.5

视频出厂验货:

可提供

机械测试报告:

可提供

原产地:

Guangdong, China

颜色:

棕色

应用程序:

用于加热，屏蔽，热封，热电绝缘

皮带宽度:

T0.10mm * W100/50/38mm * L33m

厚度:

0.18/0.13mm用于选件

温度:

-60 ~ 280 °C

型号:

923S

连续使用温度:

50 ~ 250 ℃

短期耐热性:

-50 ~ 300 ℃

胶粘剂:

硅酮胶

优势:

绝缘，耐磨，压缩，抗腐蚀，

Highlight:

Nitto Denko PTFE film tape

high temperature resistance lamination tape

Nitto 923S PTFE tape

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$80-170 / set

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Get Best Price

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Get Best Price

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Get Best Price

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Get Best Price

Contact Now

Product Description

Fluoroplastic High-strength Adhesive Tape Nitto No.923S

Adhesive tape with excellent features such as heat resistance, chemical resistance and non-adhesiveness.

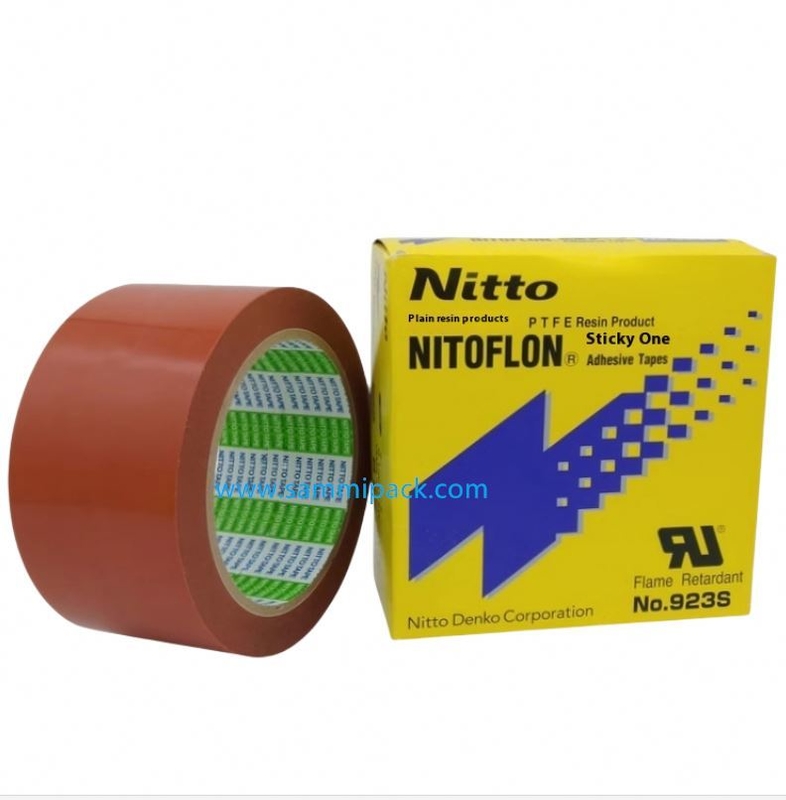

Nitto Tape No.923S is a tape using an orange-colored specially oriented polytetrafluoroethylene (PTFE) film as base material. Single surface treated and coated with a silicone adhesive which has a high heat resistance. The tape offers excellent features such as electrical properties, heat resistance, chemical resistance and non-adhesiveness.

Features
The non-adhesive side exhibits excellent features of polytetrafluoroethylene (PTFE) such as desirable electrical properties and resistance to heat, weather, chemical, and water (water-shedding), and non-adhesiveness.
Superior tensile strength.
Superior flame resistance.

Applications
For roll wrapping of polyethylene laminators (Suitable for long continuous use as the tape has superior durability and mechanical strength).
For endless belts of polyethylene laminators (Time for changing tapes upon dimensional change of laminated products can be shortened by making a double-layered endless belt by bonding the adhesive sides of No.923S together, or, depending on application, with No.923UL or 923S).
For insulation of coils as a class H insulating material.
Can be laminated with metals, plastics and ceramics as general sliding materials.

Specification:

Model No.	color	Substrate			Short-term heat resistance (℃)	Continuous use temperature(℃)
		Thickness (mm)	Width (mm)	Length (m)
NO.923S	orange	0.10	25	33	-50/300	-50/260
NO.923S	orange	0.10	38	33	-50/300	-50/260
NO.923S	orange	0.10	50	33	-50/300	-50/260
NO.923S	orange	0.10	100	33	-50/300	-50/260
