One Nozzle Big Valve Mixed Bean Sauce Filling Machine/ Piston Sauce Filler U Type Hopper

piston sauce filling machine

mixed bean sauce filler

automatic sauce packaging machine

Request A Quote

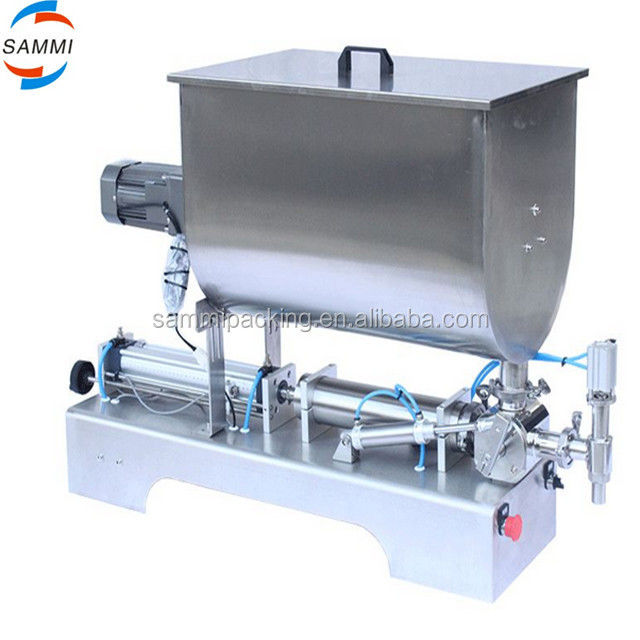

One Nozzle Big Valve Mixed Bean Sauce Filling Machine/ Piston Sauce Filler U Type Hopper

Product Details

机器产能:

4000瓶每小时

应用:

饮料, 化学品, 食品, 医疗

包装类型:

纸盒

包装材料:

木质

自动化程度:

半自动

动力类型:

气动

电压:

220V

原产地:

Guangdong, China

品牌:

SAMMI

尺寸(长×宽×高):

124*40 * 40CM，容器: 120*48 * 50CM

保修期:

1年

核心卖点:

操作简便

填充物料:

牛奶, 水, Juice

机械测试报告:

可提供

视频出厂验货:

可提供

核心组件:

电机

材料:

不锈钢

喷嘴:

大阀

本地服务位置:

“无”

认证:

ISO-900

营销型:

热销产品2019

类型:

罐装机

状态:

New

适用行业:

食品饮料加工厂, 餐饮店

展示厅地点（在海外哪些国家有样品间）:

None

核心组件质保期:

1年

重量:

1100 KG

Highlight:

piston sauce filling machine

mixed bean sauce filler

automatic sauce packaging machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$700-900 / set

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Get Best Price

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Get Best Price

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Get Best Price

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Get Best Price

Contact Now

Product Description

Features:

This machine adopts pneumatic control and owns a wide application scope, simple measuring regulation, good shape and convenient cleaning, suitable for the explosion-proof unit.

1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.

2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.

3. Filling volume, filling speed can be adjustable, filling accuracy is high.

4. Adopt the anti-drip, Anti-drawing and lifting filling device.

Application:

Suitable for medicine,daily life products, food and special industries.And it is an ideal device for adhesive fluid filling.

Principle

GFA series of semi-automatic filling machine piston filler. Driven by a
cylinder and piston made from materials with FIVE-way valves control the flow of
materials, and magnetic reed switch control cylinder itinerary can be regulated
filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used
pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
. Some contact materials are used 316 L stainless steel materials, in line with
the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation, filling high
accuracy.

Technical Parameters:

Machine model	GFA-100	GFA-300	GFA-500	GFA-1000	GFA-3000	GFA-5000
Filling speed	10-35n/min(take water for example)
Filling range	10-100ml	30-300ml	50-500ml	100-1000ml	300-3000ml	500-5000ml
Air pressure	0.4~0.6mpa
Filling error	±1%
Machine size	806(L) × 180(W) ×690(H)mm	880(L) ×230(W) ×665(H)mm	880(L) × 230(W) ×665(H)mm	1065 (L) ×230(W) ×665(H)mm	1250(L) ×400(W) ×300(H)mm	1390(L) ×420(W) ×380(H)6mm
Machine weight	42 Kg	45Kg	48Kg	52Kg	64 Kg	86 Kg

Machine can offer customized according to customer request

Company Information

About Us

Dongguang Sammi Packing Machine Co.,Ltd was found in 2010, we are the professional manufacturer of

packaing machinery,specialized in filling machine, capping machine, coding machine, sealing machine,labeling

machines, packing machines etc,widely apply in food,cosmetic, pharmacy, beverage and chemical industries.

With expertise and inside knowledge of packaging machinery, we provide our clients with additional value by

supplying top quality, high efficient packaging equipment base on competitive price.

Our product obtains high reputation from customer. They sell well in mainland China, as well as many countries

in Europe, America, Southeast Asia, the Middle East, because of high quality, lower prices, fast speed

delivery and satisfying services.

Certificate

Packaging & Shipping

Payment Term:	T/T, L/C, Western Union, PayPal, Credit card, trade assurance
Package:	export standard wooden case & cartons, honeycomb paperboard case
Delivery Time:	1-3 days after payment
transportation:	by sea, by air, by express(DHL, FEDEX,TNT,4PX,ARAMEX,EMS etc)
Shipping Time:	A, by express:about 5 days to arrive shipping destination,door to door service
	B, by air: about 7 days to destination airport
	C, by sea:15-30 days to destination port

Our Services

1) Warranty Time: 1 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on them.

2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before packaging.

3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.

4) File Services: We offer instruction manual and video to teach you how to using and testing machine.

5) Accessories: We supply spare parts with competitive price after warranty time.
