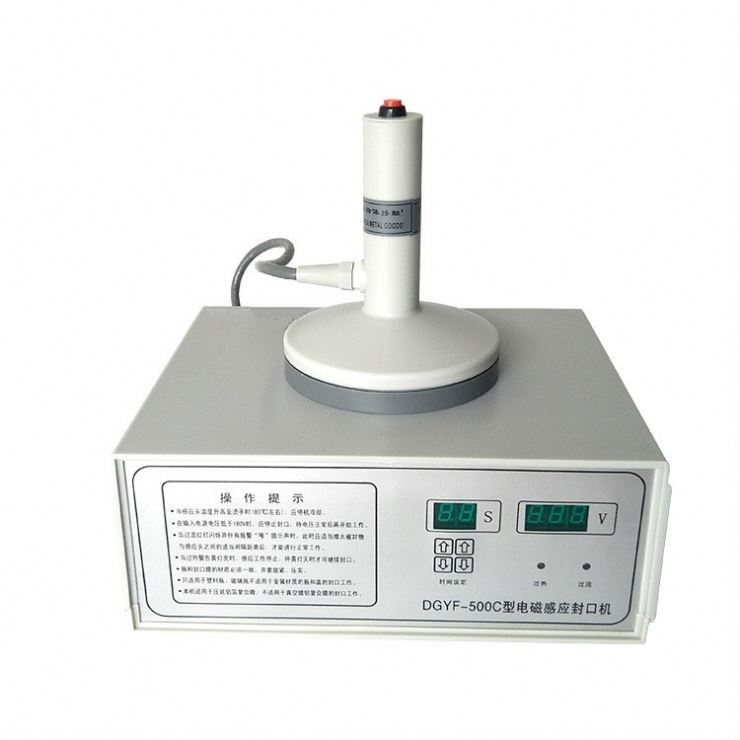

Machine description
Compound material electromagnetic induction sealing technology is the advance sealing which was recognized
by modern international. The containers sealable can be made of PP, PVC,PET, PS, PET, ABS,HDPE,DURACON
plastic/ glass bottle , plastic soft tube etc. but not metal. It,s the most advance technology for medical,food, oil,
chemical,pesticide bottle sealing at present.It adopt several newest development technology, the technology
stand advance in the industry. The Core spare part adopt international famous brand. Product will be check
seriously before leaving from factory. Quanlity is reliable, the best choice product for customer.
Work principle
The machine operates on the principle of electromagnetic induction: The aluminum foil on the bottle top is highly
heated instantaneously and melted so that the bottle mouth is closely wrapped and sealed.
Operating instruction
1, Put the induction sealer on the table,plug in the machine. Must pay attention not to put the sealing head(handle head) on the machine.
2, Turn on the machine,the power light flashes red.
3, Put sealing head smoothly on the bottle cap, press the button on the handle, power light flashes red and hear a bee sound.
( Note: the button on the handle work once at a time, it can not keep pressing on button, or it will work continuously without stop.)
4, Power light went out, bee sound stop, it means the sealing is finished.
5, Rotate the heating time button,the sealing time can be adjustable. Bottle neck diameter 20mm ,
Heating time adjust to 1.5; Bottle neck diamter 50mm,Heating time adjust to 2(Note: for the thickness difference of bottle cap , heating time should be lengthen in accordance with thickness of bottle cap)
Note:when sealing, the sealing bottle mouth must be put in the middle of the induction head to ensure the sealing
quanlity.
The material of bottle and aluminium foil should be the same and tighten the foil inside the cap with bottle mouth.
Machine specification :
- Electrical: 220-250V/50-60Hz
- Machine Weight: (5 Kg)
- Sealing diameter:(10-60mm)
- Control Unit Size: (340 x 290 x 150 mm H )
- Packaged Dimensions: (440mm x 390mm x 220mm)
- Packaged Weight: (7.5 kg)
Control Panel:
- Master ON/OFF Switch Sealing Time Digital Display (Seconds & Tens of Sec)
- Fuse Protection Current Electrical Charge Digital Display
- Automatic Overheat Protection Fuse and Alarm./Light with Automatic Cool down Reset Feature
- Automatic Over Current Alarm/Light Engages if Excessive Distance Between Horn and Substrate is Being Applied
Sealing samples:
Machine details:
