High Speed Pneumatic Liquid Filling Machine, Double Head Sunflower Oil Filler, Liquid Soap Filling Machine

high speed pneumatic filling machine

double head sunflower oil filler

liquid soap filling machine with warranty

Place of Origin:

China

Brand Name:

SAMMI

Request A Quote

High Speed Pneumatic Liquid Filling Machine, Double Head Sunflower Oil Filler, Liquid Soap Filling Machine

Product Details

Application:

Beverage, Chemical, Food

Packaging Type:

Cartons

Packaging Material:

Wood

Automatic Grade:

Semi-automatic

Driven Type:

Pneumatic

Voltage:

220V/50HZ

Dimension(l*w*h):

96*45*38mm

Warranty:

1 Year

Key Selling Points:

Long Service Life

Filling Material:

Oil, Juice

Filling Accuracy:

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Core Components:

Motor

After-sales Service Provided:

Video Technical Support, Online Support

Filling Range:

30-300ml

Driven Type:

Eletric And Pneumatic

Item:

Liquid Soap Filling Machine

Filling Accuracy:

±1%

Package Type:

Bottle, Bag, Tube, Can,jar

Type:

Desktop Liquid Soap Filling Machine

Price:

Competitive

Quality:

Meet Export Standard

Application:

MEDICAL

Weight:

40 KG

Highlight:

high speed pneumatic filling machine

double head sunflower oil filler

liquid soap filling machine with warranty

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$400-550 / set

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Get Best Price

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Get Best Price

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Get Best Price

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Get Best Price

Contact Now

Product Description

High Speed Pneumatic liquid filling machine,liquid soap filling machine

Product description

Features of liquid soap filling machine

1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.

2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.

3. Filling volume, filling speed can be adjustable, filling accuracy is high.

4. Adopt the anti-drip, Anti-drawing and lifting filling device

Principle of liquid soap filling machine

GFA series of semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
. Some contact materials are used 316 L stainless steel materials, in line with the GMP requirements.( liquid soap filling machine )
. Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.

Technical Parameters:

Machine model	G1WY-2Y-100	G1WY-2Y-300	G1WY-2Y-500	G1WY-2Y-1000	G1WY-2Y-3000	G1WY-2Y-5000
Filling speed	10-35n/min(take water for example)
Filling range	10-100ml	30-300ml	50-500ml	100-1000ml	1000-3000ml	1000-5000ml
Air pressure	0.4~0.6mpa
Filling error	±1%
Machine size	806(L) × 180(W) ×690(H)mm	880(L) ×230(W) ×665(H)mm	880(L) × 230(W) ×665(H)mm	1065 (L) ×230(W) ×665(H)mm	1250(L) ×400(W) ×300(H)mm	1390(L) ×420(W) ×380(H)6mm
Machine weight	42 Kg	45Kg	48Kg	52Kg	64 Kg	86 Kg

Machine can offer customized according to customer request

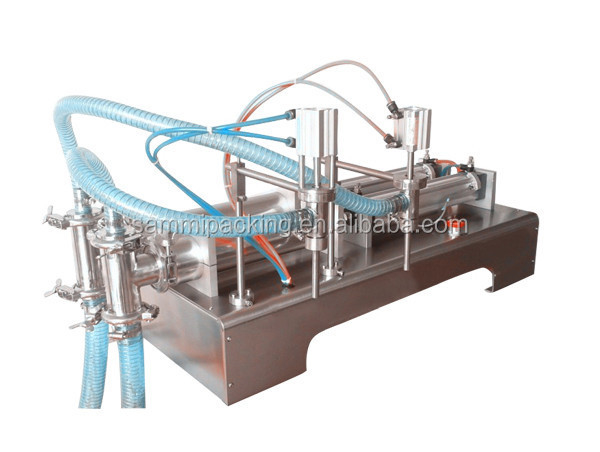

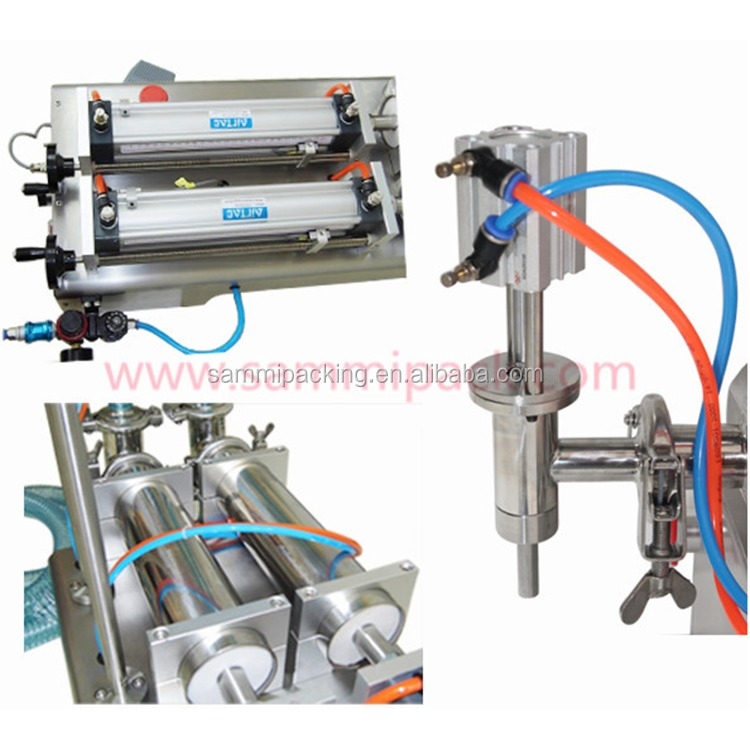

Machine photo

packing & shipping

Company Profile

Dongguang Sammi Packing Machine Co.,Ltd was found in 2010, we are the professional manufacturer of packaing machinery,specialized in filling machine, capping machine, coding machine, sealing machine,label

ling machines etc,widely apply in food,cosmetic, pharmacy,beverage and chemical industries.

With expertise and inside knowledge of packaging machinery, we provide our clients with additional value

by supplying top quality, high efficient packaging equipment base on competitive price.

Our product obtains high reputation from customer. They sell well in mainland China, as well as many

countries in Europe, America, Southeast Asia, the Middle East, because of high quality, lower prices,

fast speed delivery and satisfying services.

After sale Service

1) Warranty Time: 1 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on them.

3) Technical services: We have professional engineers available to service machinery overseas, once

we receive your inquiry about fault or testing; we will reply you within 24 hours.

5) File Services: we can supply Manual Specification,Operate Video and other files you need.
