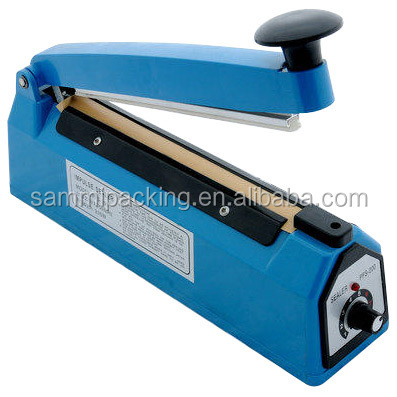

FS-400 Hand Impulse Sealer for Plastic Film

Applications

Applied to seal all kinds of plastics films, compound films and aluminum-plastic film.Max sealing lenght:400mm

PFS-400 hand impulse sealer(plastic bag sealer,hand inpulse sealer,heat sealer)

Features:

This product can seal ordinary plastic bags/films

Specification:

Model: PSF-400 Hand impulse sealer

Voltage: 220 VAC or 110VAC avaible ,please remark your voltage (if voltage is 110VAC , it need longer delivery time)

Power:600W

Maximum Sealing Length: 400mm

Maximum sealing width: 3mm (it can extend to 3mm to 5mm)

Sealing time 0.2-1.5 (seconds)

First, use:

Sealed plastic bags with hand-bag machine is perfect sealing machine, can be easily used to package a variety of candy, food, general merchandise, stationery, and pharmaceuticals. Wide range of uses.

Second, use:

1, with hand-bag-sealing machine without power switch (control). AC power cord is plugged into the socket, according to the sealing of the material thickness, adjust the heating time. Sealing plastic bags placed on the surface, and then press the handle, the circuit that control the heating time. Light goes out automatically disconnect the power Jibei. After about 1-2 seconds, release the handle, the seal better.
2 million a pick damage occurring at the time of sealing, it is because the heating time is too long, please dial anti-clockwise rotation to shorten the heating time on the line.
3, if the seal is not strong, it is because the heating time is too short. Please knob clockwise to extend the heating time.
4, if the plastic bag stuck to the rubber plate, the description is not enough cooling time, to extend the cooling time after the light goes out. Please release handle a little bit later.
5, adjust heating time after the change in use should be kept in continuous use do not make any adjustments.
6, with hand-bag-sealing machine can always plug in the AC power cord socket, and will not seal without electricity consumption.

Third, pay attention:

1, should always maintain a clean sealing surface to avoid sealing the surface oxidation and reduction residue band and heat-resistant fabric of life.
2, do not wipe with a damp cloth sealing surface.
3, if the band following the liner is damaged, it will cause a short circuit and damage the band. Therefore, replacing each band should check the liner of the intact condition. If damage should be replaced new.
4, must replace the heating cable should be used with the original band with the same specifications.
5, after prolonged use, please check the rubber plate. Rubber plate damage because if will affect the sealing quality.

Package Included:

• 1 x 40cm Impulse sealer
• 1 x Extra heater wire- gifts
• 1 x Extra teflon Belt- gifts
• 1 x Instruction manual
