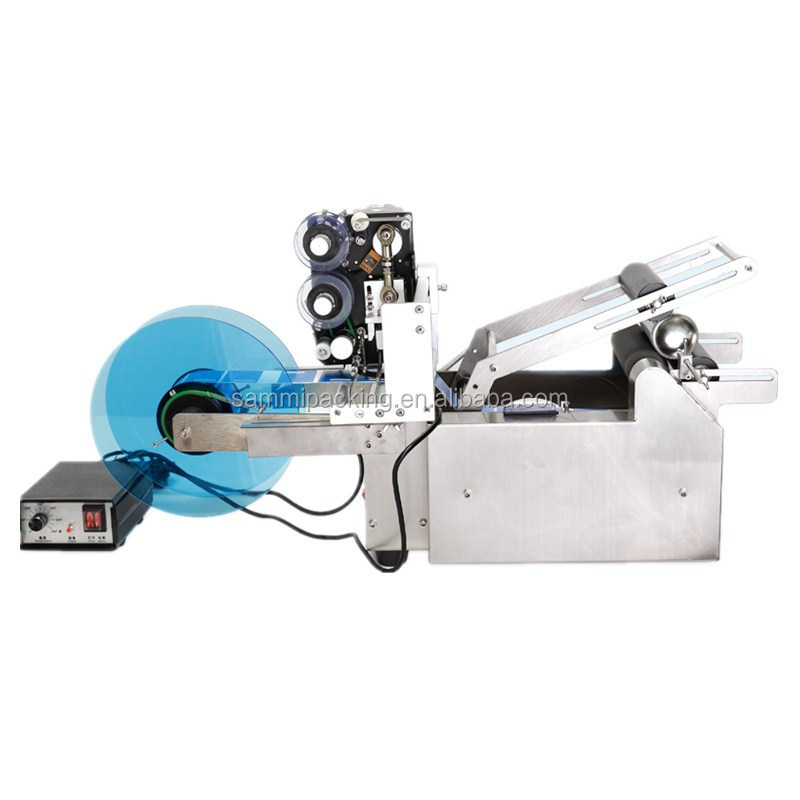

Suitable for different size of adhesive label or adhesive film on all kinds of round bottle,High accuracy and high speed,dispensing & labeling automatically.
It is use in PET bottle, plastic bottle, glass bottle, Metal bottle and so on round bottle etc.
Product discription:
1. Small structure takes up less space and easy to move and load.
2. Good labeling precision and stability; Neat, no wrinkle, no bubble.
3. It has powerful function. It can achieve circumferential position labeling and non-position labeling easily
4. It satisfy the circumferential position labeling and non-position labeling on diameter between 15-120mm bottles.
5. It is easy to use and adjust. The new workers can use or adjust it easily after simple training.
6. Conveyer parts are completely covered to avoid the abnormal conditions which make the use safer.
7. The clever design which allow user to mechanically adjust some structure combination and label winding, makes it easy to adjust the labeling position freely. All these make it easy to change products and wind labels. 8. Has 2 control methods: automatic and semi-automatic. Workers can choose either sensor control or feet step control for labeling according to reality.
9. Whole equipment is mainly made of stainless steel and high level aluminum alloy. The whole structure is strong and harmonious.
10. Has fault stop function, production counting function
Technical parameters:
Material
Stainless Steel
Available bottle
round bottle
Available sticker
adhesive label
Available bottle diameter
15-120mm(adjustable)
Working speed
25-50 piece/minutes
Available inner diameter of label roll
Φ75mm
Available outer diameter of label roll
Φ275mm
Min size of label
W26*L25(mm) (can be adjusted)
Max size of label
W150*L240(mm) (can be adjusted)
Power supply
220V/110V
Labeling precision
less than ±0.5mm
Overall size
650 x 450 x 450 mm
Automatic grade
semi-automatic
Driven type
Electric
Weight
35kg
The machine can be customized according to customer’s special requirement.
Our Service (small round bottle labeling machine )
1) Warranty Time: 1 year, within this period we will send spare part freely to you if there are any problems with them (except artificial damage).
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before packaging.
3) Technical services: We have professional engineers available to service machinery overseas, once we receive your inquiry about fault; we will reply you within 24 hours, and offer you any technical service about machine.
4) Lifelong Services: We provide lifelong services for all the products we sold out, and supply the spare
parts with competitive price.
5) File Services: we can supply Manual Specification,Operate Video and other files you need.
6) Language: We have a sales team who are good at English to ensure zero communication barriers.
