Pneumatic Semi Automatic Single Head Piston Filler/hot Liquid Filling Machine

Product Details

机器产能:

500瓶每小时

应用:

饮料, 化学品, 食品

包装类型:

纸盒

包装材料:

木质

自动化程度:

半自动

动力类型:

气动

电压:

110V/220V

原产地:

Guangdong, China

品牌:

SAMMI

尺寸(长×宽×高):

125*40 * 30mm

保修期:

1年

核心卖点:

使用寿命长

填充物料:

水, Oil, Juice

灌装精度:

1, ≤ ± 1%

机械测试报告:

可提供

视频出厂验货:

可提供

核心组件:

电机

功能:

填料

填充材料:

流动液体

填充范围:

50-500ml

充填速度:

10-40瓶/分钟

机器材料:

不锈钢

加注喷嘴:

1个喷嘴

保修:

1年

最小起订量:

1台

应用程序:

医疗

类型:

罐装机

状态:

New

适用行业:

维修店, 家用, 食品店, 餐饮店

展示厅地点（在海外哪些国家有样品间）:

None

核心组件质保期:

1年

重量:

45 KG

Highlight:

semi automatic piston filler machine

hot liquid filling machine

pneumatic single head filler

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$225-288 / set

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Get Best Price

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Get Best Price

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Get Best Price

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Get Best Price

Contact Now

Product Description

Principle:

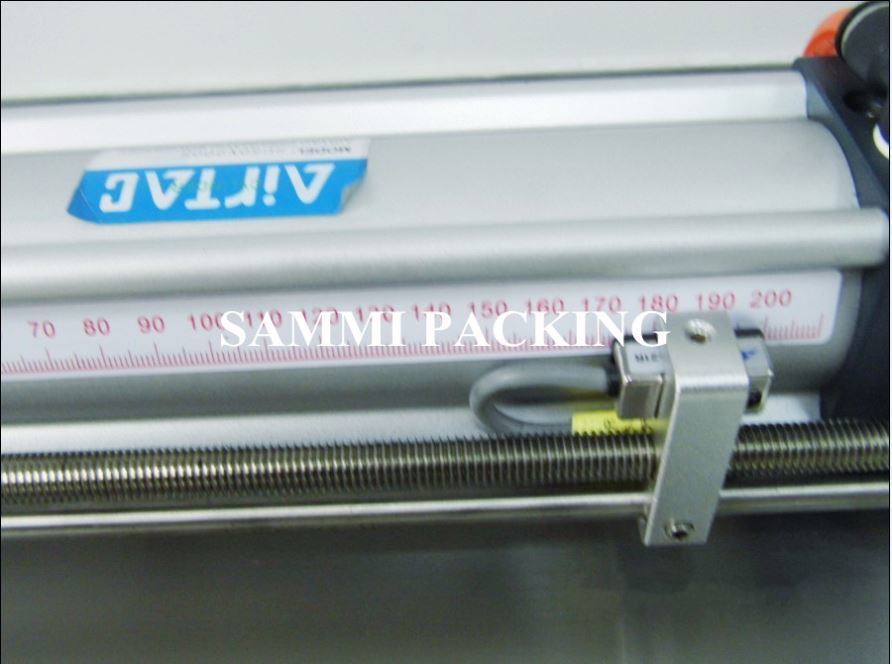

G1WY series of semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
. Some contact materials are used 316 L stainless steel materials, in line with the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.

Characteristic:

1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.

2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.

3. Filling volume, filling speed can be adjustable, filling accuracy is high.

4. Adopt the anti-drip, Anti-drawing and lifting filling device.

Technical Parameters:

Machine model	G1WY-100	G1WY-300	G1WY-500	G1WY-1000	G1WY-3000	G1WY-5000
Filling speed	5-20b/min(take water for example)
Filling range	10-100ml	30-300ml	50-500ml	100-1000ml	1000-3000ml	1000-5000ml
Air pressure	0.4~0.6mpa
Filling error	≤±1%
Machine size	806(L) × 180(W) ×690(H)mm	880(L) ×230(W) ×665(H)mm	880(L) × 230(W) ×665(H)mm	1065 (L) ×230(W) ×665(H)mm	1250(L) ×400(W) ×300(H)mm	1390(L) ×420(W) ×380(H)6mm
Machine weight	30 Kg	35Kg	40Kg	45Kg	60 Kg	80 Kg

Machine can be customized according to customer,s requirement

Fill material samples:

Packaging & Shipping

Payment Term:	T/T, L/C, Western Union, PayPal, Credit card, trade assurance
Package:	export standard wooden case & cartons, honeycomb paperboard case
Delivery Time:	1-3 days after payment
transportation:	by sea, by air, by express(DHL, FEDEX,TNT,4PX,ARAMEX,EMS etc)
Shipping Time:	A, by express:about 5 days to arrive shipping destination,door to door service
	B, by air: about 7 days to destination airport
	C, by sea:15-30 days to destination port

Our Services

1) Warranty Time: 1 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on them.

2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before packaging.

3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.

4) File Services: We offer instruction manual and video to teach you how to using and testing machine.

5) Accessories: We supply spare parts with competitive price after warranty time.
