Small Scale PET Plastic Glass Bottle Liquid Filler 2 Heads Semi Automatic Filling Machine 1000-5000ML

semi automatic liquid filling machine

PET bottle filler 2 heads

small scale packaging machine 5000ml

Certification:

ISO 9001

Request A Quote

Small Scale PET Plastic Glass Bottle Liquid Filler 2 Heads Semi Automatic Filling Machine 1000-5000ML

Product Details

机器产能:

200瓶每小时

应用:

饮料, 化学品, 日用品, 食品

包装类型:

包, 瓶, Pouch, 自立袋

包装材料:

CARTON

自动化程度:

半自动

动力类型:

气动

电压:

220V/110V

原产地:

Guangdong, China

品牌:

SAMMIPACK

尺寸(长×宽×高):

96*45*38cm

保修期:

1年

核心卖点:

使用寿命长

填充物料:

BEER, 牛奶, 水, Oil, Juice

灌装精度:

机械测试报告:

可提供

视频出厂验货:

可提供

核心组件:

电机

Name:

Pneumatic Lqiuid Filling Machine

Filling Volume:

20-100/30-300/50-500/100-1000/1000-3000/1000-5000ml

Filling Speed:

10-15 Bottles/min Depends On Operation

Material:

Stainless Steel 304

Function:

Filling Small Volume Cream,ointment,lotion,gel

Filling Accuracy:

±1%

Application:

MEDICAL

Local Service Location:

None

Marketing Type:

New Product 2020

类型:

罐装机

状态:

New

适用行业:

维修店

展示厅地点（在海外哪些国家有样品间）:

None

核心组件质保期:

1年

重量:

45 KG

Highlight:

semi automatic liquid filling machine

PET bottle filler 2 heads

small scale packaging machine 5000ml

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$900-1,100 / set

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Get Best Price

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Get Best Price

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Get Best Price

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Get Best Price

Contact Now

Product Description

Feature

1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.

2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.

3. Filling volume, filling speed can be adjustable, filling accuracy is high.

4. Adopt the anti-drip, Anti-drawing and lifting filling device

Application

Widely used by industries in the Food & Beverage, Cosmetics, Personal

Care, Agricultural, Animal Care, Pharmaceutical, and Chemical fields

.And it is an ideal device for low viscosity fluid filling.

Principle

G1WY-2Y series of semi-automatic filling machine piston filler. Driven by a
cylinder and piston made from materials with FIVE-way valves control the flow of
materials, and magnetic reed switch control cylinder itinerary can be regulated
filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used
pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
. Some contact materials are used 316 L stainless steel materials, in line with
the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation, filling high
accuracy..

Technical parameter

Machine model	G1WY-2Y-100	G1WY- 2Y- 300	G1WY- 2Y- 500	G1WY-1 2Y- 000	G1WY- 2Y- 3000	G1WY- 2Y- 5000
Filling speed	10-35n/min(take water for example)
Filling range	10-100ml	30-300ml	50-500ml	100-1000ml	300-3000ml	500-5000ml
Air pressure	0.4~0.6mpa
Filling error	±1%
Machine size	806(L) × 180(W) ×690(H)mm	880(L) ×230(W) ×665(H)mm	880(L) × 230(W) ×665(H)mm	1065 (L) ×230(W) ×665(H)mm	1250(L) ×400(W) ×300(H)mm	1390(L) ×420(W) ×380(H)6mm
Machine weight	42 Kg	45Kg	48Kg	52Kg	64 Kg	86 Kg.

Machine can offer customized according to customer request

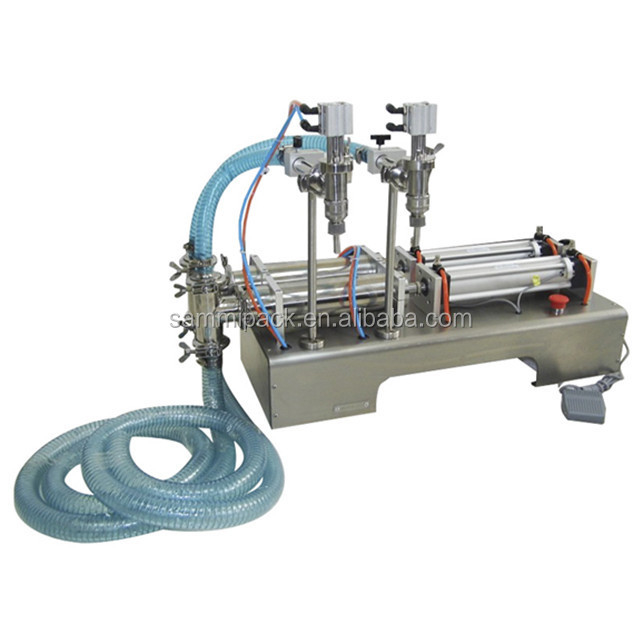

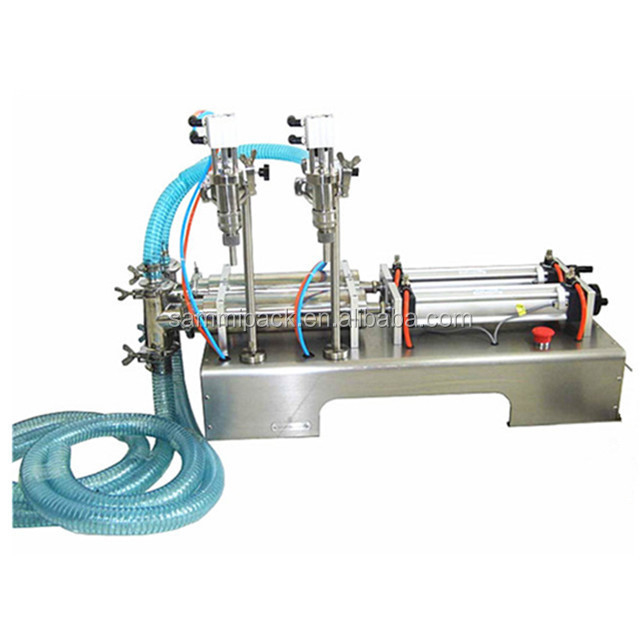

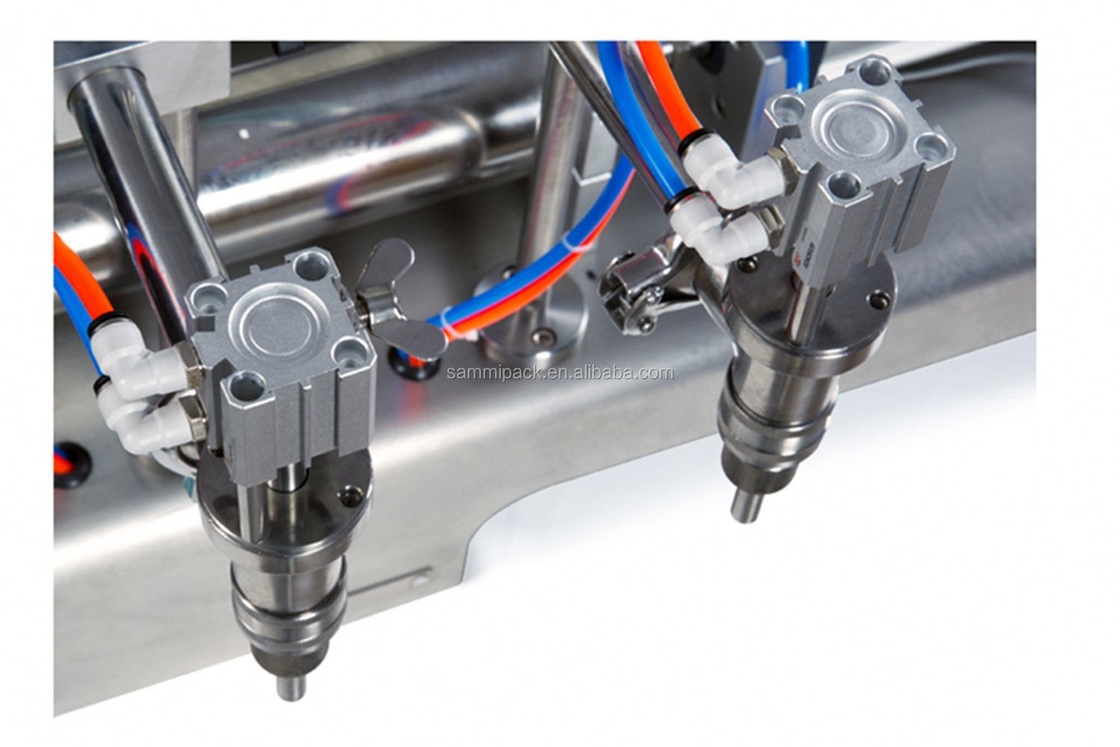

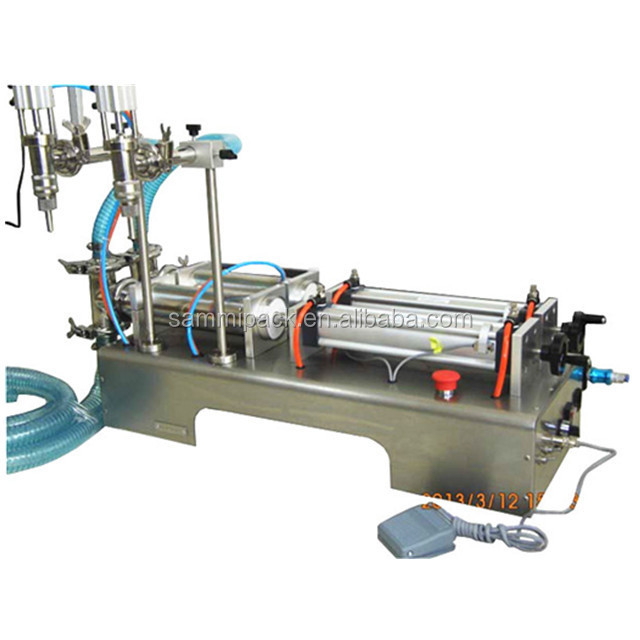

Pictures of double heads liquid filling machine

Sample pictures:
