High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine

High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine

L type sealing heat shrink machine

high speed shrink wrapping machine

automatic heat sealing packaging machine

Contact Us
Request A Quote
High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine
Product Details
应用:
饮料, 化学品, 日用品, 食品, 机械 & 五金
包装类型:
纸盒
包装材料:
木质
自动化程度:
全自动
动力类型:
Electric
电压:
220V
原产地:
Guangdong, China
品牌:
SAMMI
尺寸(长×宽×高):
L1600 X W719 X H1444MM
售后服务体系:
在线支持, 视频技术支持
保修期:
1年
核心卖点:
使用寿命长
机械测试报告:
可提供
视频出厂验货:
可提供
核心组件:
电机
莫埃尔:
FQL-5545 + BSD-4520
收缩隧道尺寸:
L1200 X W450 X H200毫米
包装尺寸:
最大W350 X H150毫米
温度::
最大200 OC可调
输送机速度::
0-10 M/MIN
输送机负载:
最大10公斤
包装材料::
PVC POF PP PE
电源:
220 V/50 HZ/60HZ
功耗::
12KW
总体尺寸::
L1600 X W719 X H1444MM
类型:
打包机
适用行业:
维修店
保修期外服务:
视频技术支持, 在线支持
提供本地服务的地点（在哪些国家有海外服务网点）:
None
展示厅地点（在海外哪些国家有样品间）:
None
状态:
New
营销类型:
2020年新品
核心组件质保期:
1年
重量:
160 KG
认证:
CE和ISO-900
Highlight:

L type sealing heat shrink machine

,

high speed shrink wrapping machine

,

automatic heat sealing packaging machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$3,000-3,500 / set
RELATED PRODUCTS
Good price Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE online

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Get Best Price
Good price Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE online

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Get Best Price
Good price Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter online

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Get Best Price
Good price Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry online

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Get Best Price
Contact Us
Contact Now
Product Description

Automatic FQL-5545 +BSD-4520Shrink wrapping mahicne with L-Type Sealer



Product description

 Specifications

High Speed L type sealing cuting machine& Heat Shrink machine

Widely used in batch production and packaging. It has high efficiency, automatic film feeding and punching device, manual adjusting conductive film system and manual adjusting feeding and conveying platform. Suitable for products of different widths and heights.

Automatic Side Sealer is specially designed for packaging long products such as profiles, rails, bars, etc., and at random lengths as well.It,s comfortable and efficient to handle by its open and accessible design. High operating efficiency ensures Fully Automatic L-sealer a first-class packaging quality.

Electronic temperature control system, when the temperature of the shrinking furnace reaches the set temperature, the machine automatically stops heating, so that the shrinking furnace can save electricity, Adopt brand speed control circuit board, the shrinking transmission is more stable and better shrink effect.

Main feature:
Packing product without length limitation
Excellent perforation system allows the pin easily to change and adjust
The sealing system capable of produce smooth and firm sealing line
With safety protection

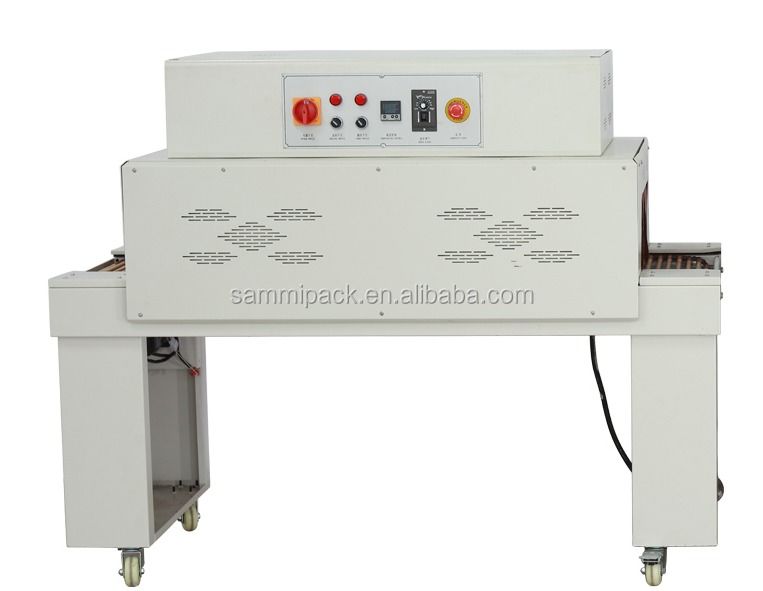

Shrink Tunnel



Shrink Tunnel Size

 L1200 x W450 x H200 MM
Package Size Max. W350 x H150 MM
Temperature Max. 200 oC adjustable

Conveyor Speed

 0-10 M/MIN
Conveyor Load: Max. 10 KGS
Package material: PVC POF PP PE
Power  Supply 220 V/50 HZ/60HZ
Power Consumption 12KW
Net Weight 160KGS
Overall Size L1600 x W719 x H1444MM





L Type Sealing Machine



Max package size:  (W+H)< 450mm,(L+H)< 550mm;(H)≤140mm
Cycle Time

15-30PCS/ MIN
Sealing time 0.2s-1s
Film thickness 0.012-0.06mm
Power Supply 220 V, 50 HZ
Air pressure 0.5mpa
Power Consumption: 1.1KW
Heating power: 800W
Package material: POF
Overall Size  L1760 x W940x H1580 MM
Net Weight 300 KGS

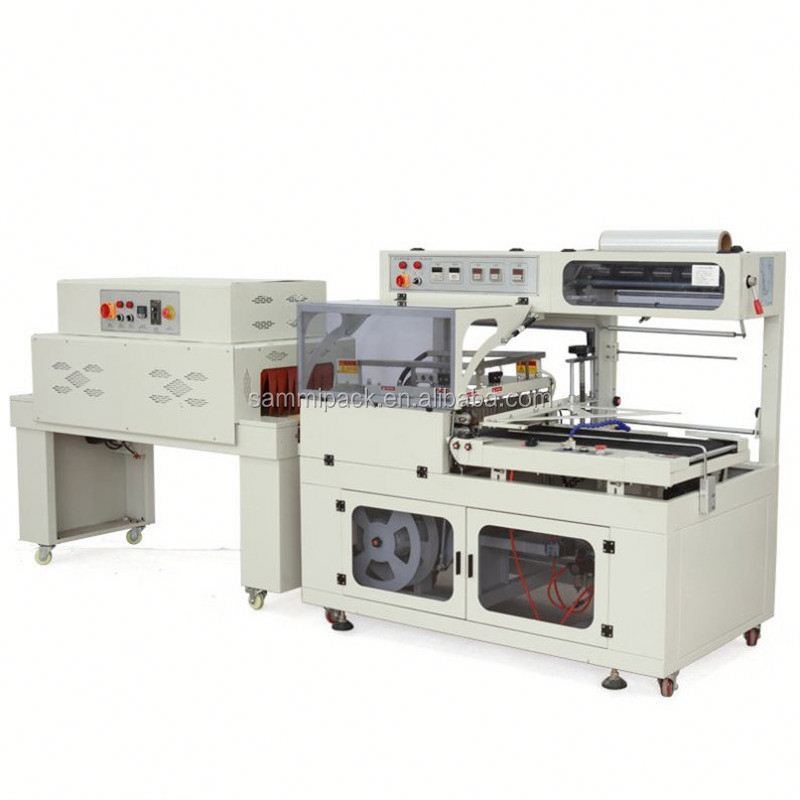

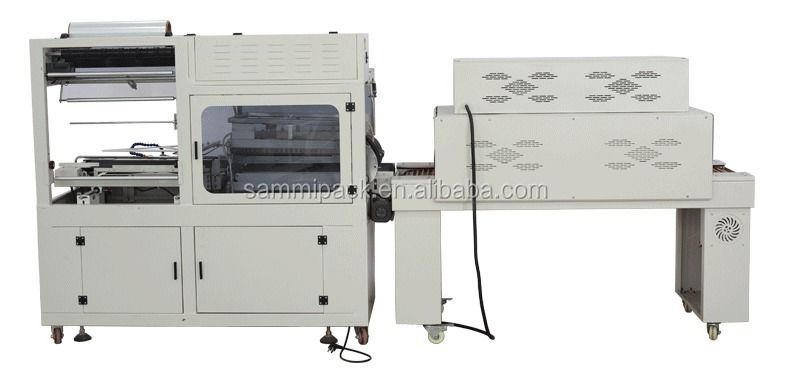

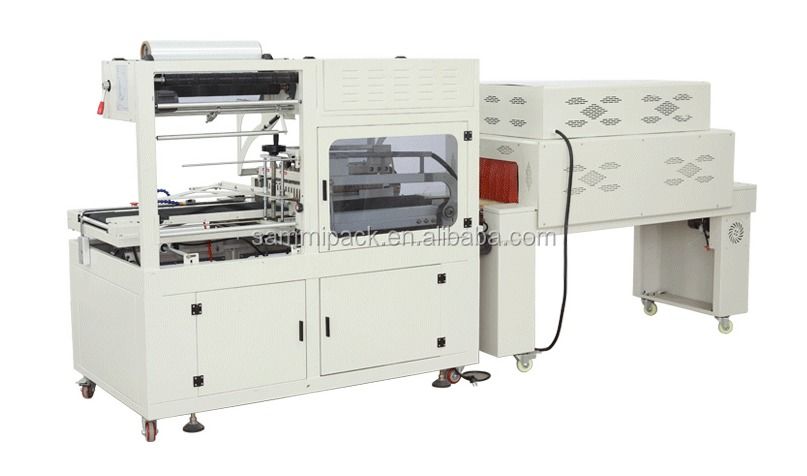

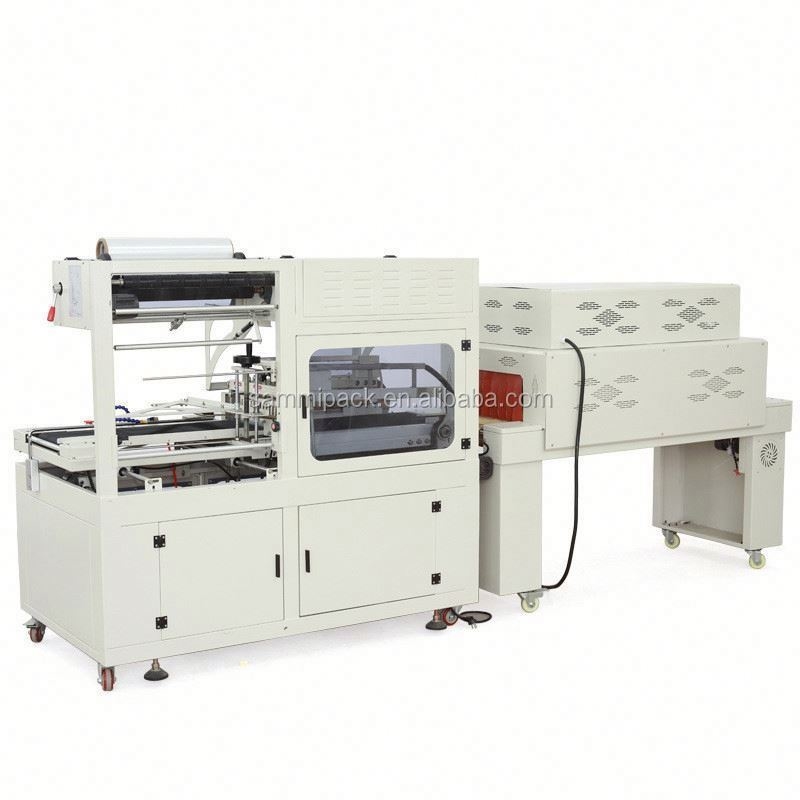

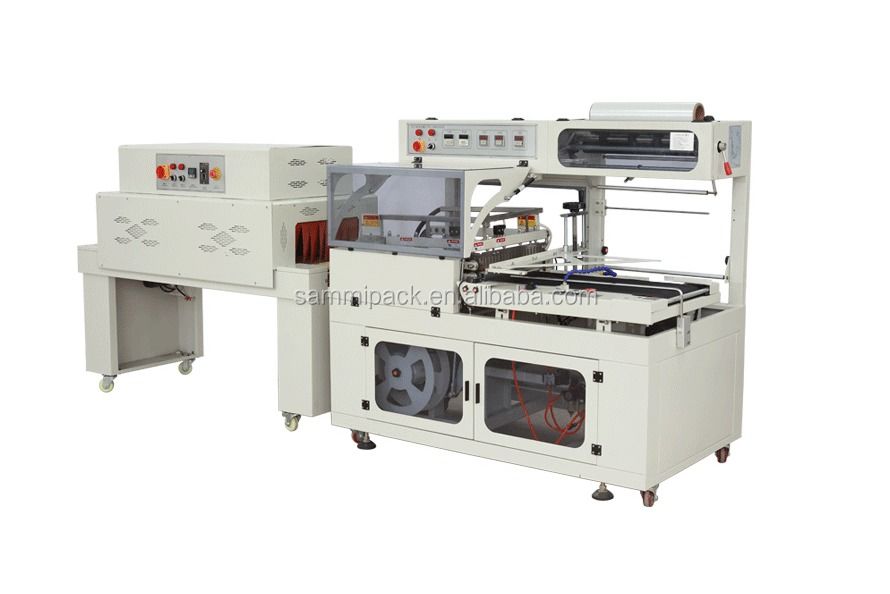

Machine pictures:



High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine 0High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine 2High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine 4High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine 6High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine 8High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine 10High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine 12High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine 14High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine 16





High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine 18





High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine 20

Packaging & Shipping
Payment Term: T/T, L/C, Western Union, PayPal, Credit card, trade assurance
Package: export standard wooden case & cartons, honeycomb paperboard case
Delivery Time: 1-3 days after payment
transportation: by sea, by air, by express(DHL, FEDEX,TNT,4PX,ARAMEX,EMS etc)



Shipping Time:

 A, by express:about 5 days to arrive shipping destination,door to door service
B, by air: about 7 days to destination airport

C, by sea:15-30 days to destination port

High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine 22

Our Services

1)  Warranty Time: 1 year, within this period we offer spare part replacement freely if there are any  Non-artificial damage on them.



2)  Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before packaging.



3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.



4)  File Services: We offer instruction manual and video to teach you how to using and testing machine.



5)   Accessories: We supply spare parts with competitive price after warranty time.

Company Information



High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine 24High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine 26
