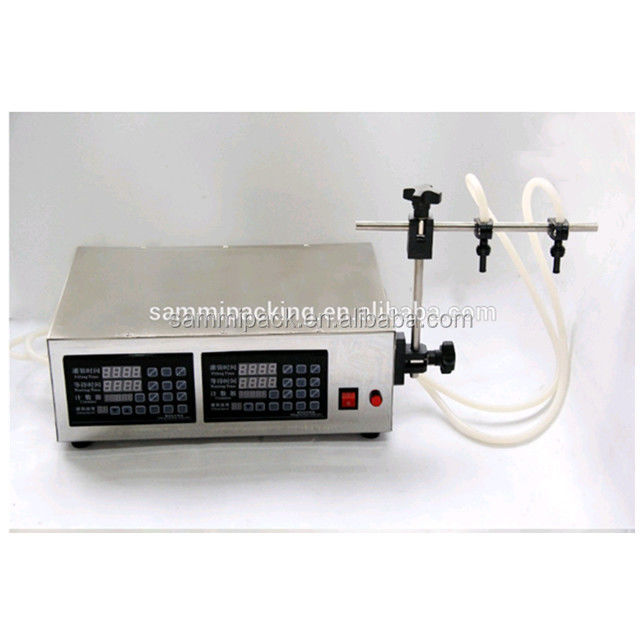

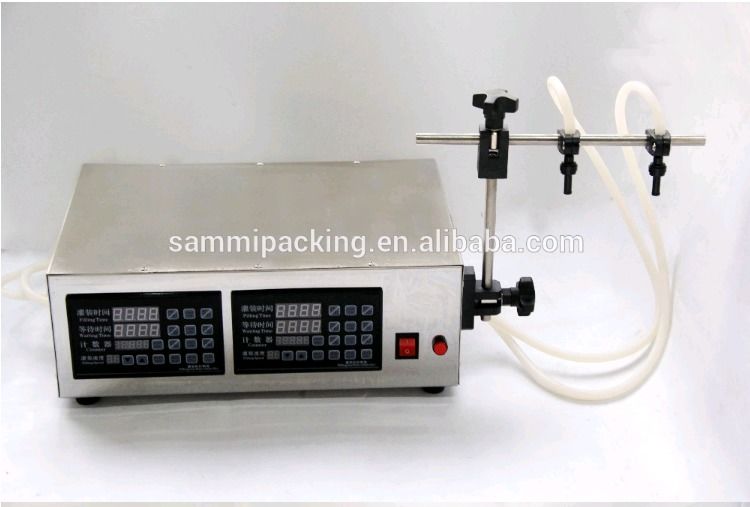

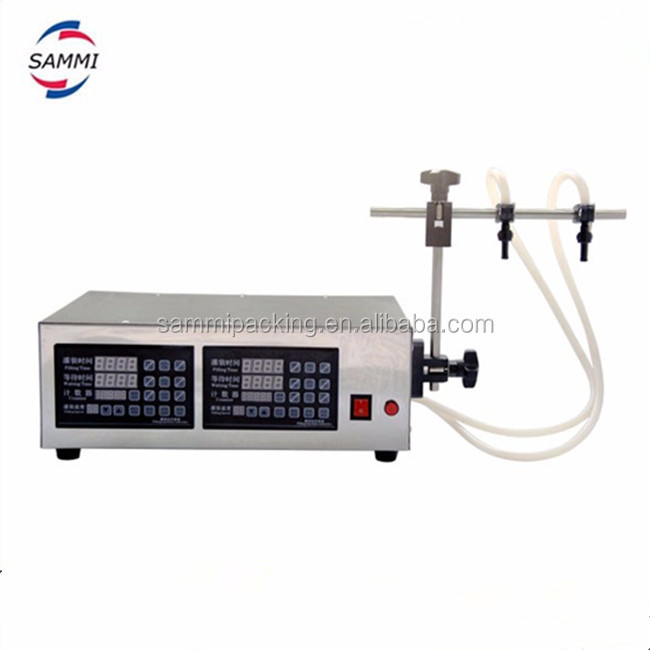

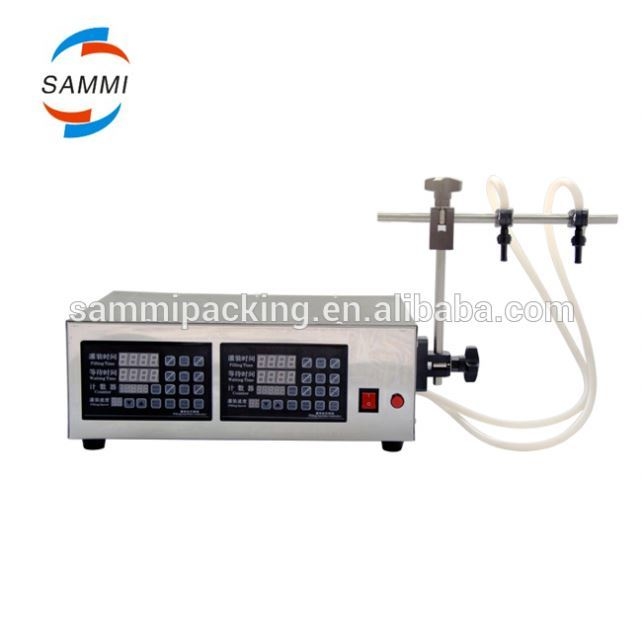

Compact Digital Control Pump Liquid Filling Machine
Controled by micro-computer, fill liquid by setting the filling time and speed.
Filling Liquid From 3-3000ml very precisely.
Digital Panel, very easy to operate.
Technical Parameter:
Voltage: AC 180V-260V (pls leave a message if u need 110v machine )
Power: 30W
Filling Range: 3ml-3000ml
Max Flow Rate: 3.2L/min
Package Size: 280X250X160 (mm)
Weight: 5kgs
Max Suck Distance: 2meter
Anti-dripping Funtion: Available
Memory Function out of power: Available
Interior diameter of filling nozzle: 5mm
Characteristics:
1. Import single-chip microcomputer control, high efficiency, low power consumption
2. Automatic counting function, effectively control filling quantiy
3. LCD display, touch screen is very easy to operate
4. High filing accuracy
5. Wide Voltage range
6. Working performance is stable and can be used for long time
7. This can self-suck the liquid.
8. The pump can stand acid and alkali
9. Anti-dripping design.
10. Reasonable design, made of stainless steel, meet GMP requirement
Machine panel function:
Filling time : for adjusting the filling time
Waiting time : waiting time between each filling when the machine is filling automatically .
Counter : filling counter
Filling speed : adjusting the speed
Fiilling machine controller : for adjusting the filling range . When you turn on the machine , push the button "setting" When the filling range reaches what you want , push the button "setting" once again .The machine will keep the filling range in memory .
Operation instruction:
1, turn on the machine ,and put the bottle under the filling head
2, push the button "setting". When the filling reaches the range you want , push the button "setting" once again . Then the machine will keep the filling range in memory .
3, push the button "auto ", and it will work automatically . Push the button "manual", and it will work manually .
4, the warranty of the machine is 1 year .
The pump is diaphragm pump and is consumable . When you find the filling turns slow, please change the pump .
Packaging & Shipping
Payment Term:
T/T, L/C, Western Union, PayPal, Credit card, trade assurance
Package:
export standard wooden case & cartons, honeycomb paperboard case
Delivery Time:
1-3 days after payment
transportation:
by sea, by air, by express(DHL, FEDEX,TNT,4PX,ARAMEX,EMS etc)
Shipping Time:
A, by express:about 5 days to arrive shipping destination,door to door service
B, by air: about 7 days to destination airport
C, by sea:15-30 days to destination port
Our Services
1) Warranty Time: 1 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: We supply spare parts with competitive price after warranty time.
