Whipped Cream Filling Machine/Automatic Sauce Filling/Filler Machine for Bottles or Cans

automatic whipped cream filling machine

sauce filler machine for bottles

can filling machine with warranty

Request A Quote

Whipped Cream Filling Machine/Automatic Sauce Filling/Filler Machine for Bottles or Cans

Product Details

机器产能:

其他

应用:

食品, 饮料, 日用品, 化学品

包装类型:

纸盒

包装材料:

木质

自动化程度:

半自动

动力类型:

气动

电压:

110V/220V

原产地:

Guangdong, China

品牌:

SAMMI

尺寸(长×宽×高):

125*43*49

保修期:

1年

核心卖点:

使用寿命长

填充物料:

BEER, 其他, 牛奶, 水, Oil, Juice

灌装精度:

1%, ± 1%

机械测试报告:

可提供

视频出厂验货:

可提供

核心组件:

电机

姓名:

单头奶油灌装机

填充量:

20-100ml,30-300ml,50-500ml,100-1000ml,1000-3000ml,1000-5000ml

充填速度:

10-15瓶/分钟取决于操作

材料:

不锈钢304

功能:

填充小体积霜，软膏，乳液，凝胶

工作头::

单头

其他名称:

装瓶机

空气压力:

0.4 ~ 0.6mpa

应用程序:

医疗

类型:

罐装机

状态:

New

适用行业:

生产车间, 维修店, 食品饮料加工厂, 零售, 食品店, 餐饮店

展示厅地点（在海外哪些国家有样品间）:

None

核心组件质保期:

1年

重量:

55 KG

Highlight:

automatic whipped cream filling machine

sauce filler machine for bottles

can filling machine with warranty

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$650-1,200 / set

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Get Best Price

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Get Best Price

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Get Best Price

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Get Best Price

Contact Now

Product Description

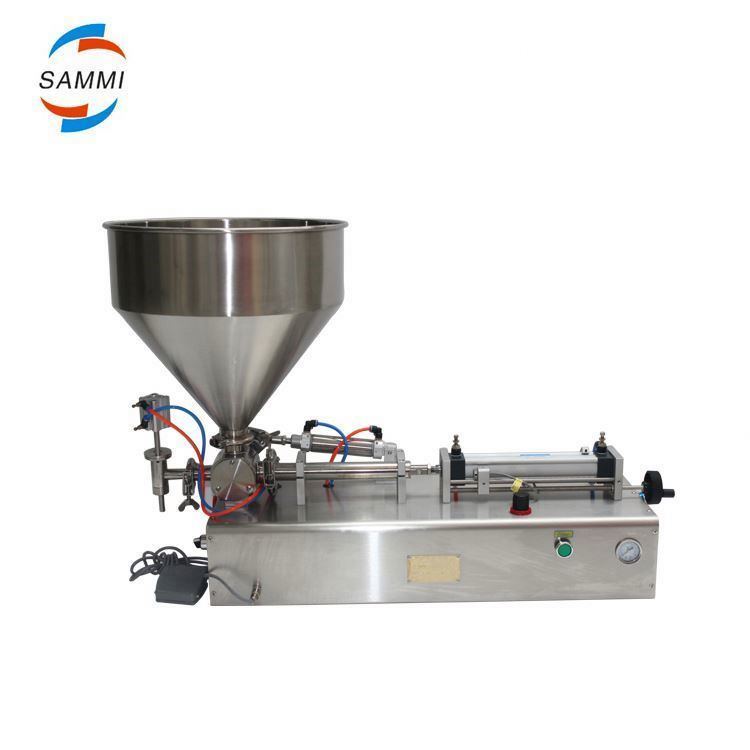

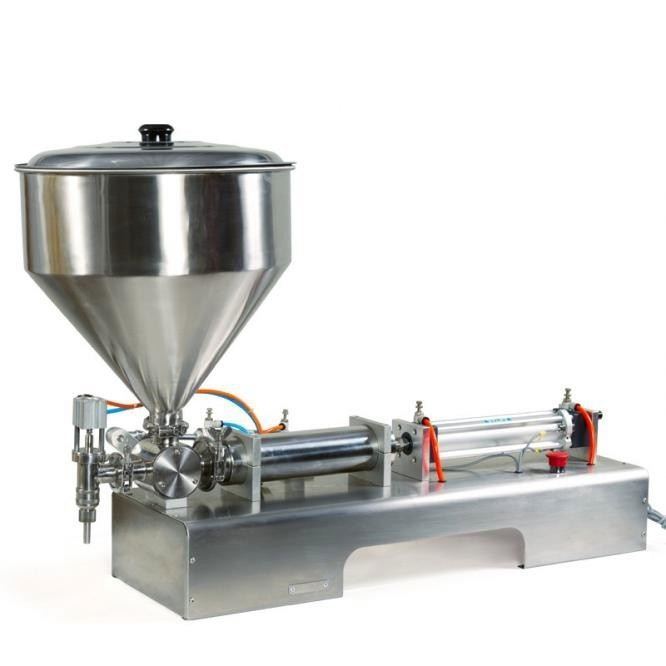

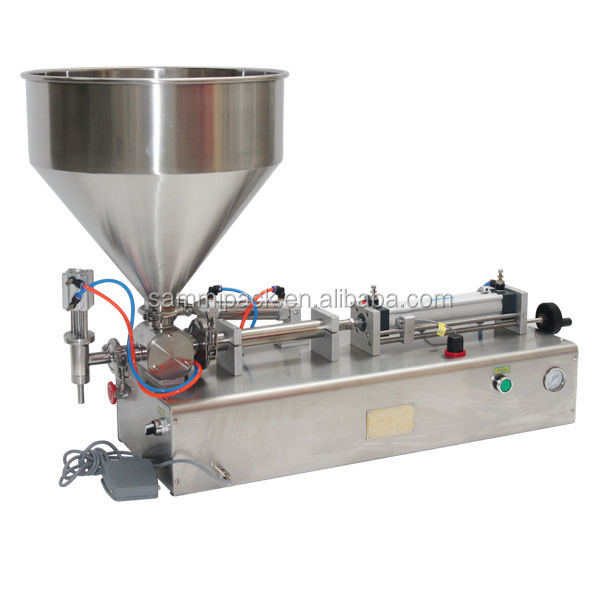

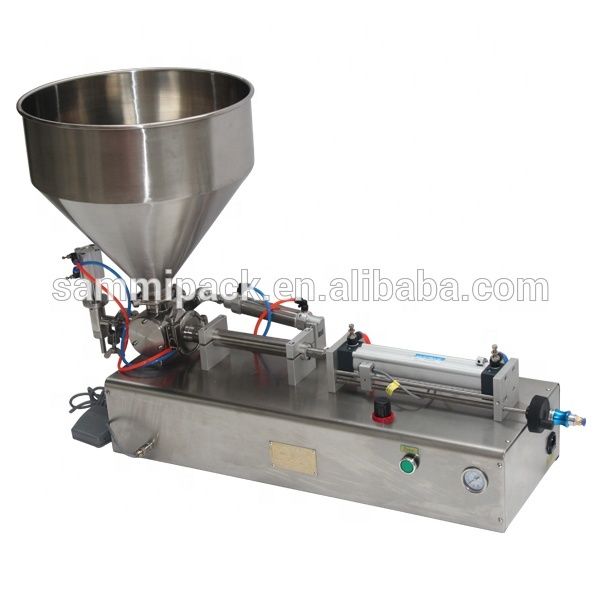

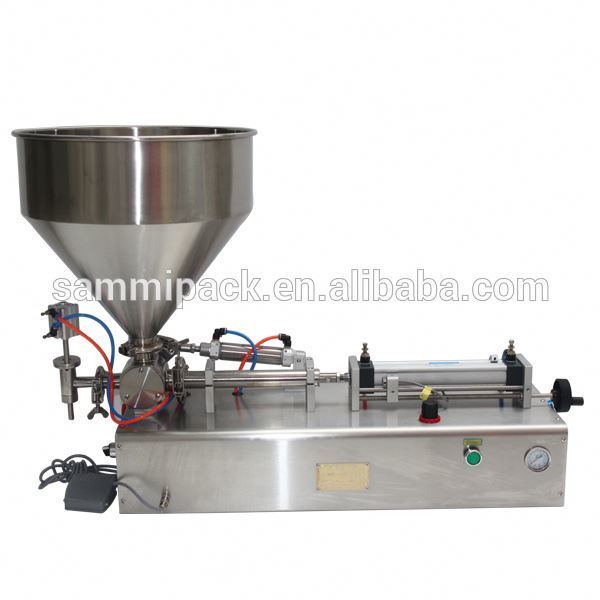

GFA Pneumatic Cream Filling Machine

Features:

This machine adopts pneumatic control and owns a wide application scope, simple measuring regulation, good shape and convenient cleaning, suitable for the explosion-proof unit.

1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.

2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.

3. Filling volume, filling speed can be adjustable, filling accuracy is high.

4. Adopt the anti-drip, Anti-drawing and lifting filling device.

Application:

Suitable for medicine,daily life products, food and special industries.And it is an ideal device for adhesive fluid filling.

Principle

GFA series of semi-automatic filling machine piston filler. Driven by a
cylinder and piston made from materials with FIVE-way valves control the flow of
materials, and magnetic reed switch control cylinder itinerary can be regulated
filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used
pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
. Some contact materials are used 316 L stainless steel materials, in line with
the GMP requirements..
. Filling volume and speed of filling can be arbitrary regulation, filling high
accuracy.

Technical Parameters:

Machine model	GFA-100	GFA-300	GFA-500	GFA-1000	GFA-3000	GFA-5000
Filling speed	10-35n/min(take water for example)
Filling range	10-100ml	30-300ml	50-500ml	100-1000ml	300-3000ml	500-5000ml
Air pressure	0.4~0.6mpa
Filling error	±1%
Machine size	806(L) × 180(W) ×690(H)mm	880(L) ×230(W) ×665(H)mm	880(L) × 230(W) ×665(H)mm	1065 (L) ×230(W) ×665(H)mm	1250(L) ×400(W) ×300(H)mm	1390(L) ×420(W) ×380(H)6mm
Machine weight	42 Kg	45Kg	48Kg	52Kg	64 Kg	86 Kg

Machine can offer customized according to customer request
