Cream+Liquid Filling Machine ,Single Head Cream Filling Machine,Tomato Sauce/Jam/Cream Bottling Machine with Mixing

Cream+Liquid Filling Machine ,Single Head Cream Filling Machine,Tomato Sauce/Jam/Cream Bottling Machine with Mixing

single head cream filling machine

tomato sauce bottling machine with mixing

liquid filling machine for jam

Contact Us
Request A Quote
Product Details
机器产能:
500瓶每小时
应用:
饮料, 化学品, 食品
包装类型:
纸盒
包装材料:
金属
自动化程度:
半自动
动力类型:
气动
电压:
220V/110V
原产地:
Guangdong, China
品牌:
SAMMI
尺寸(长×宽×高):
96*45 * 38mm
保修期:
1年
核心卖点:
使用寿命长
填充物料:
水, Oil, Juice
机械测试报告:
可提供
视频出厂验货:
可提供
核心组件:
其他, PLC
印刷材料:
金属,塑料,木材,纸箱或建筑材料表面
打印速度:
最大35米/分钟
墨盒的颜色:
黑色,红色,白色,蓝色 (取决于墨水的颜色)
主界面:
喷头与打印对象之间的距离应为5-10mm
保修时间:
1年
字符高度:
1mm ~ 18mm
印刷方向:
喷头可以旋转180 ° 向前,反向,垂直向下
型号:
A180-E
应用程序:
医疗
本地服务位置:
类型:
罐装机
状态:
New
适用行业:
生产车间, 维修店, 食品饮料加工厂, 饭店, 食品店, 餐饮店
展示厅地点(在海外哪些国家有样品间):
None
核心组件质保期:
1年
重量:
48 KG
Highlight:

single head cream filling machine

,

tomato sauce bottling machine with mixing

,

liquid filling machine for jam

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$300-500 / set
Product Description

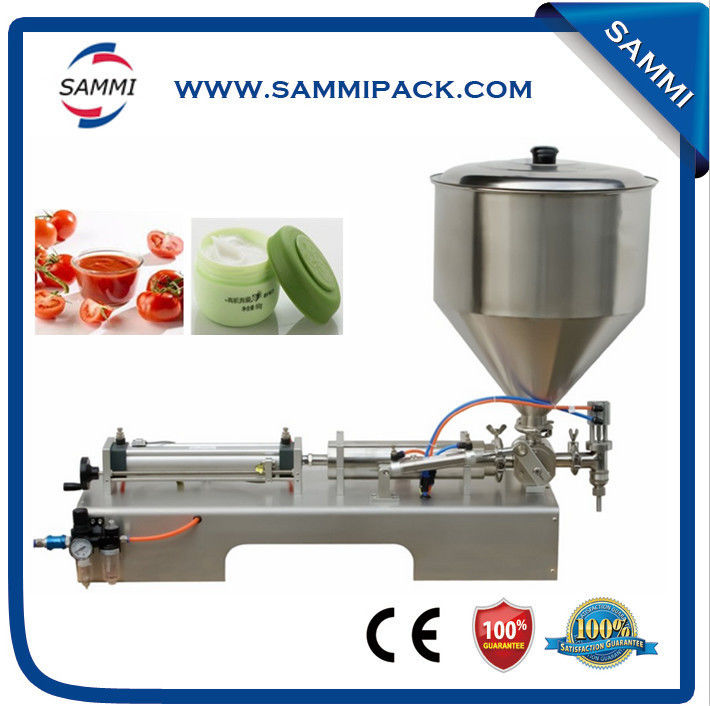

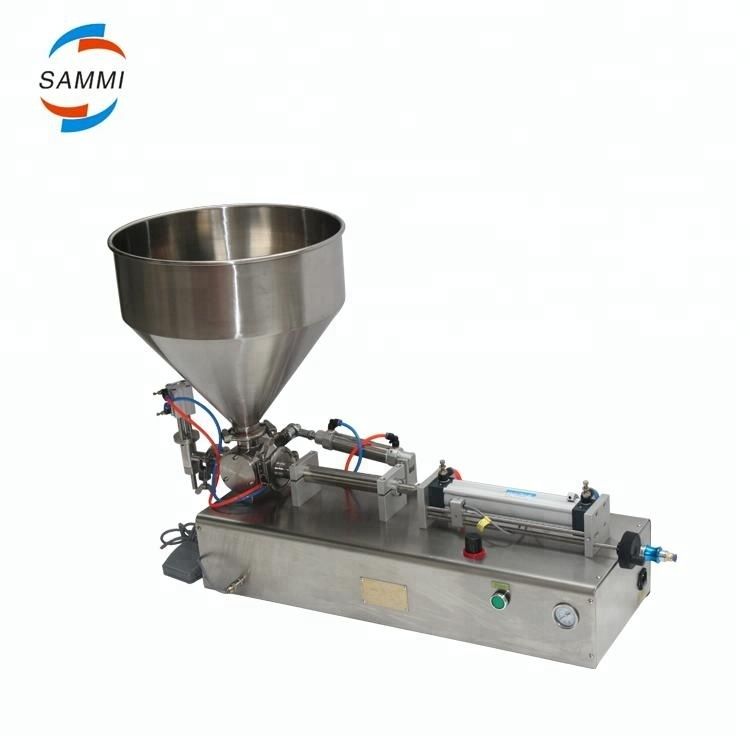

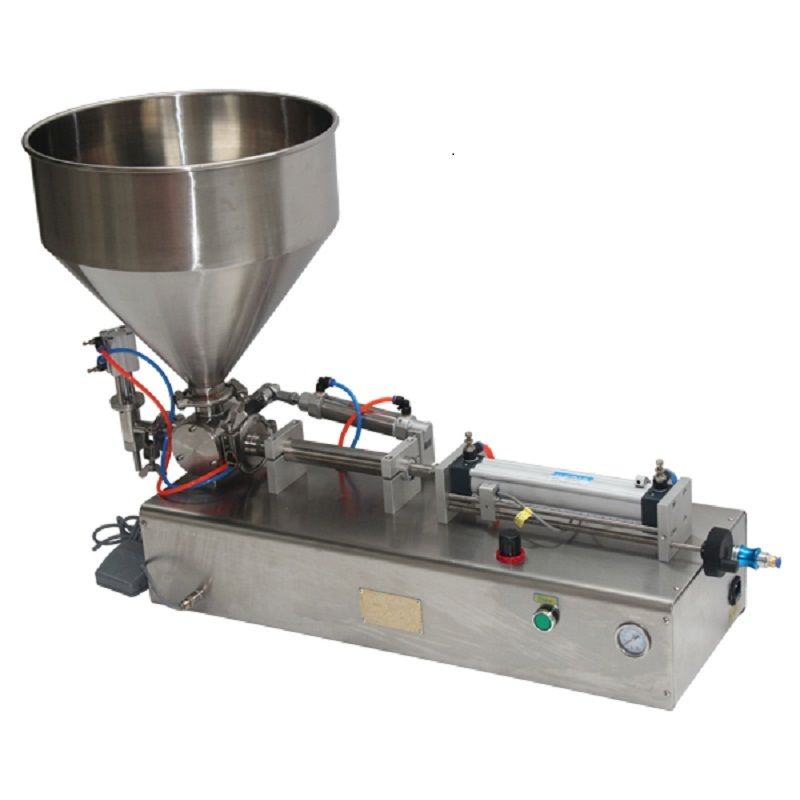

                    GFA-300 Semi-automatic Cream Paste Filling Machine

Product Description

Features:

This machine adopts pneumatic control and owns a wide application scope, simple measuring regulation, good shape and convenient cleaning, suitable for the explosion-proof unit.



1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.

2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.

3. Filling volume, filling speed can be adjustable, filling accuracy is high.

4. Adopt the anti-drip, Anti-drawing and lifting filling device.



Application:

Suitable for medicine,daily life products, food and special industries.And it is an ideal device for adhesive fluid filling.



Principle:

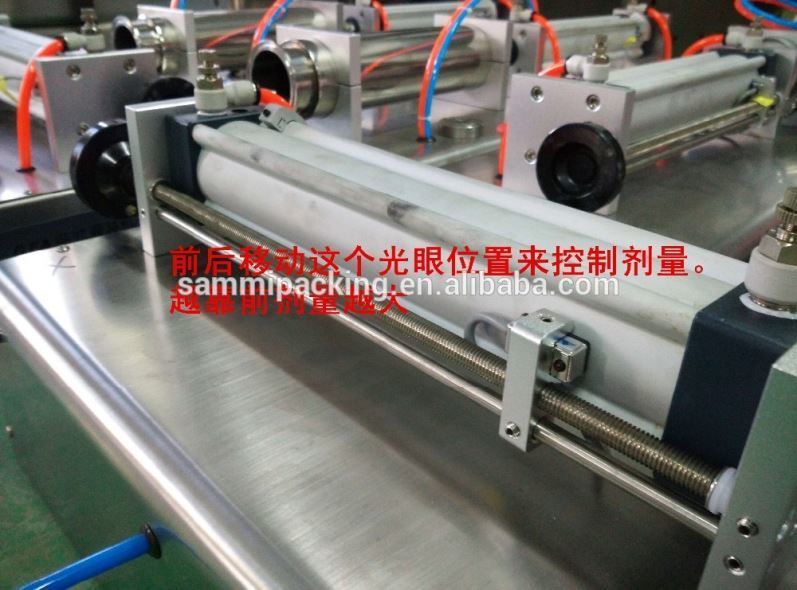

GFA series of semi-automatic filling machine piston filler. Driven by a

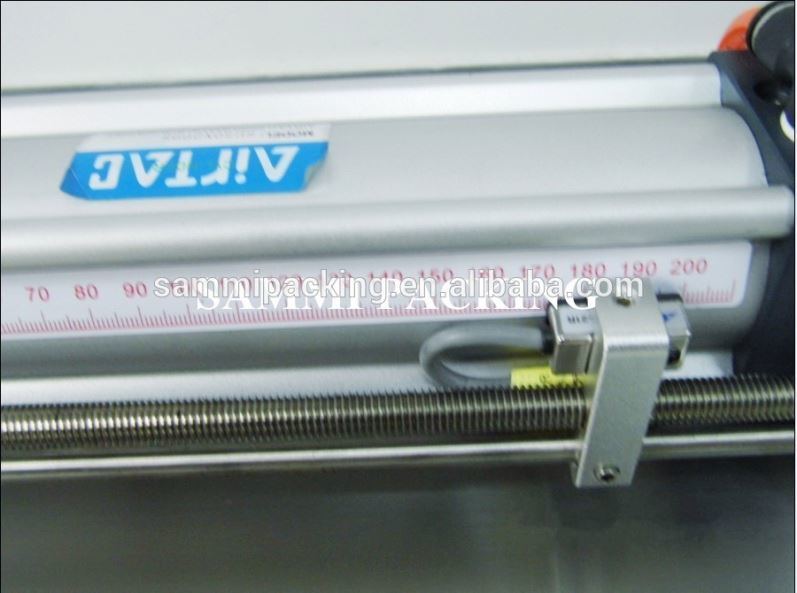

cylinder and piston made from materials with FIVE-way valves control the flow of
 materials, and magnetic reed switch control cylinder itinerary can be regulated
filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used
pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
. Some contact materials are used 316 L stainless steel materials, in line with
the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation, filling high
accuracy.



Technical Parameters:

Machine  model

GFA-100

GFA-300

GFA-500

GFA-1000

GFA-3000

GFA-5000

Filling speed

10-35n/min(take water for example)

Filling range

10-100ml

30-300ml

50-500ml

100-1000ml

300-3000ml

500-5000ml

Air pressure

0.4~0.6mpa

Filling error

±1%

Machine size

806(L) × 180(W) ×690(H)mm

880(L) ×230(W) ×665(H)mm

880(L) × 230(W) ×665(H)mm

1065 (L) ×230(W) ×665(H)mm

1250(L) ×400(W) ×300(H)mm

1390(L) ×420(W) ×380(H)6mm

Machine weight

42 Kg

45Kg

48Kg

52Kg

64 Kg

86 Kg

Machine can offer customized according to customer request

Cream+Liquid Filling Machine ,Single Head Cream Filling Machine,Tomato Sauce/Jam/Cream Bottling Machine with Mixing 0

Cream+Liquid Filling Machine ,Single Head Cream Filling Machine,Tomato Sauce/Jam/Cream Bottling Machine with Mixing 2Cream+Liquid Filling Machine ,Single Head Cream Filling Machine,Tomato Sauce/Jam/Cream Bottling Machine with Mixing 4Cream+Liquid Filling Machine ,Single Head Cream Filling Machine,Tomato Sauce/Jam/Cream Bottling Machine with Mixing 6Cream+Liquid Filling Machine ,Single Head Cream Filling Machine,Tomato Sauce/Jam/Cream Bottling Machine with Mixing 8Cream+Liquid Filling Machine ,Single Head Cream Filling Machine,Tomato Sauce/Jam/Cream Bottling Machine with Mixing 10Cream+Liquid Filling Machine ,Single Head Cream Filling Machine,Tomato Sauce/Jam/Cream Bottling Machine with Mixing 12Cream+Liquid Filling Machine ,Single Head Cream Filling Machine,Tomato Sauce/Jam/Cream Bottling Machine with Mixing 14Cream+Liquid Filling Machine ,Single Head Cream Filling Machine,Tomato Sauce/Jam/Cream Bottling Machine with Mixing 16Cream+Liquid Filling Machine ,Single Head Cream Filling Machine,Tomato Sauce/Jam/Cream Bottling Machine with Mixing 18

Packaging & Shipping

Packaging & Delivery

1, Packaging Detail: standard export wooden case package or carton.
2, Leading time: 1-3 days
3, Delivery time: depend on ways of shipping



Shipping & payment

1,ways of shipping:
1) Small machine will shipped by express (DHL, EMS, FedEx and so on) or air
2) Big order and big machine shipped by sea (FOB Shenzhen/CIF)



2, payment methods

We accept LC, TT, West Union , Papal or MoneyGram.
