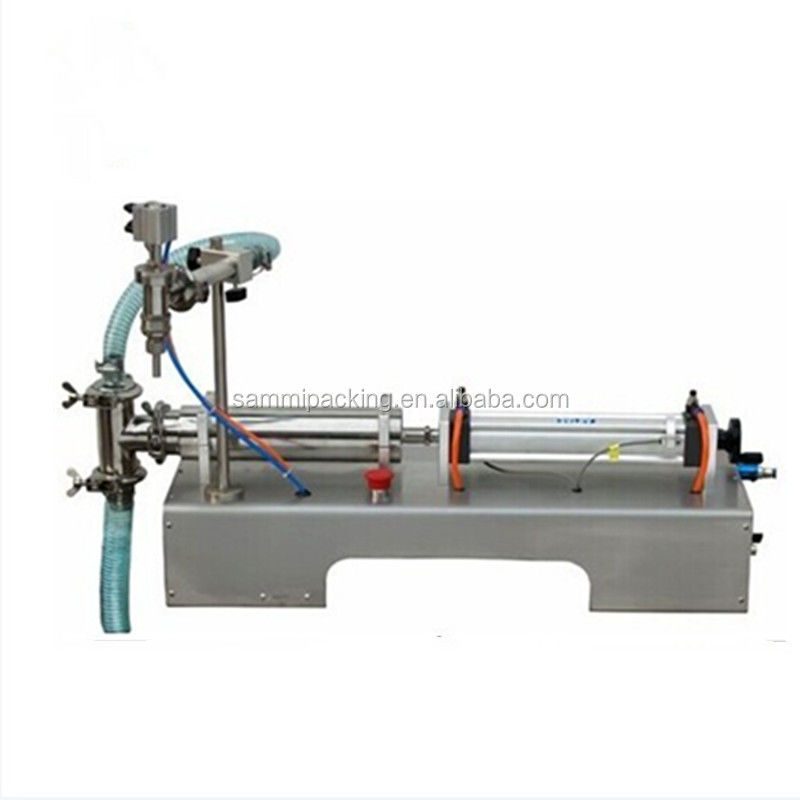

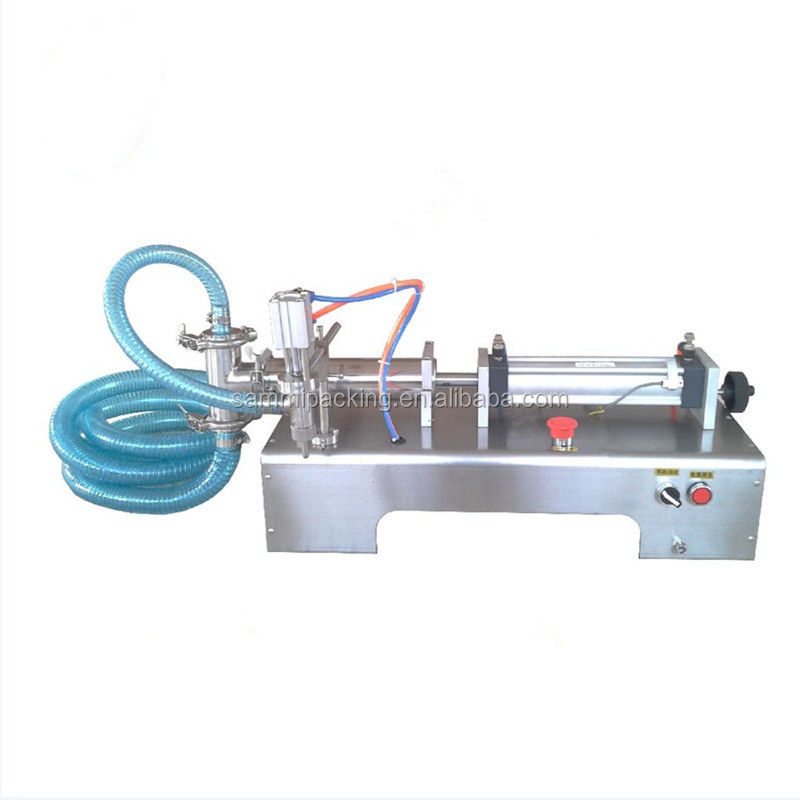

100-1000ml Horizontal Self-suction Filling Machine, Table Top Manual Piston Liquid Filler

100-1000ml Horizontal Self-suction Filling Machine, Table Top Manual Piston Liquid Filler

horizontal self-suction filling machine

table top manual piston filler

100-1000ml liquid filling machine

Contact Us
Request A Quote
100-1000ml Horizontal Self-suction Filling Machine, Table Top Manual Piston Liquid Filler 100-1000ml Horizontal Self-suction Filling Machine, Table Top Manual Piston Liquid Filler 100-1000ml Horizontal Self-suction Filling Machine, Table Top Manual Piston Liquid Filler 100-1000ml Horizontal Self-suction Filling Machine, Table Top Manual Piston Liquid Filler 100-1000ml Horizontal Self-suction Filling Machine, Table Top Manual Piston Liquid Filler 100-1000ml Horizontal Self-suction Filling Machine, Table Top Manual Piston Liquid Filler 100-1000ml Horizontal Self-suction Filling Machine, Table Top Manual Piston Liquid Filler
Product Details
应用:
饮料, 化学品, 食品
包装类型:
纸盒
包装材料:
木质
自动化程度:
半自动
动力类型:
气动
电压:
220V/110V
原产地:
Guangdong, China
品牌:
SAMMI
尺寸(长×宽×高):
125*40 * 30mm
保修期:
1年
核心卖点:
操作简便
填充物料:
液体皂, Oil, Gel, Juice
灌装精度:
1, 1ml
机械测试报告:
可提供
视频出厂验货:
可提供
核心组件:
电机
售后服务体系:
视频技术支持
重量 (KG):
35
材料:
不锈钢
产品名称:
液体灌装机
填充量:
100-1000ml
功能:
归档
充填速度:
15-20瓶/分钟
优势:
高精度
Highlight:

horizontal self-suction filling machine

,

table top manual piston filler

,

100-1000ml liquid filling machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$230-330 / set
RELATED PRODUCTS
Good price Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE online

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Get Best Price
Good price Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE online

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Get Best Price
Good price Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter online

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Get Best Price
Good price Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry online

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Get Best Price
Contact Us
Contact Now
Product Description



Features:



This machine adopts pneumatic control and owns a wide application scope, simple measuring regulation, good shape and convenient cleaning, suitable for the explosion-proof unit..





1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.





2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.




3. Filling volume, filling speed can be adjustable, filling accuracy is high.




4. Adopt the anti-drip, Anti-drawing and lifting filling device.





Application:



Suitable for medicine,daily life products, food and special industries.And it is an ideal device for adhesive fluid filling.





Principle



GFA series of semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.



1. Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.



2. Some contact materials are used 316 L stainless steel materials, in line with the GMP requirements..



3. Filling volume and speed of filling can be arbitrary regulation, filling high accuracy..







Technical Parameters:



Machine model

GFA-100

GFA-300

GFA-500

GFA-1000

GFA-3000

GFA-5000

Filling speed

10-35n/min(take water for example)

Filling range

10-100ml

30-300ml

50-500ml

100-1000ml

300-3000ml

500-5000ml

Air pressure

0.4~0.6mpa

Filling error

±1%

Machine size

806(L) × 180(W) ×690(H)mm

880(L) ×230(W) ×665(H)mm

880(L) × 230(W) ×665(H)mm

1065 (L) ×230(W) ×665(H)mm

1250(L) ×400(W) ×300(H)mm

1390(L) ×420(W) ×380(H)6mm

Machine weight

42 Kg

45Kg

48Kg

52Kg

64 Kg

86 Kg

Machine can offer customized according to customer request
