Liquid Soap Dispenser Machine Laundry Liquid Filler for Dishwasher Detergent Hand Soap Dishwashing Soap Filling Machines

automatic liquid soap dispenser machine

dishwasher detergent filling machine

hand soap packaging machine

Request A Quote

Liquid Soap Dispenser Machine Laundry Liquid Filler for Dishwasher Detergent Hand Soap Dishwashing Soap Filling Machines

Product Details

机器产能:

500瓶每小时, 1000瓶每小时

应用:

食品, 饮料

包装类型:

易拉罐, 瓶, 自立袋, 包, Pouch

包装材料:

木质

自动化程度:

半自动

动力类型:

气动

电压:

220V/110V

原产地:

Guangdong, China

品牌:

SAMMI

尺寸(长×宽×高):

86*42 * 36cm

保修期:

1年

核心卖点:

操作简便

填充物料:

水, Oil, Juice

灌装精度:

机械测试报告:

可提供

视频出厂验货:

可提供

核心组件:

电机, 其他

颜色和页面:

单色

印刷材料:

金属，塑料，木材，纸箱或建筑材料表面

打印速度:

最大35米/分钟

墨盒的颜色:

黑色，红色，白色，蓝色 (取决于墨水的颜色)

主界面:

喷头与打印对象之间的距离应为5-10mm

保修时间:

1年

字符高度:

1mm ~ 18mm

印刷方向:

喷头可以旋转180 ° 向前，反向，垂直向下

型号:

A180-E

本地服务位置:

无

类型:

罐装机

状态:

New

适用行业:

生产车间, 食品饮料加工厂, 食品店, 餐饮店

展示厅地点（在海外哪些国家有样品间）:

None

核心组件质保期:

1年

重量:

53.0 KG

Highlight:

automatic liquid soap dispenser machine

dishwasher detergent filling machine

hand soap packaging machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$360-495 / set

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Get Best Price

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Get Best Price

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Get Best Price

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Get Best Price

Contact Now

Product Description

100-1000ml double filling heads volumetric piston liquid dosing machine

Product Description

Principle:

GFA series of semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
. Some contact materials are used 316 L stainless steel materials, in line with the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.

Characteristic:

1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.

2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.

3. Filling volume, filling speed can be adjustable, filling accuracy is high.

4. Adopt the anti-drip, Anti-drawing and lifting filling device.

Technical Parameters:

Model:	G1WY-2Y-1000
Filling range:	100-1000ml
Filling material:	low viscosity liquid
Driven:	electric and pneumatic
Air compressor:	1.5hp
Applicable pressure:	0.4-0.6mpa
Working head:	single head
Nozzle size :	4mm/8mm/12mm( can be customize)
Packaging size:	122 x 36 x50 cm
Gross weight:	50kg
Automatic grade:	semi auto & automatic
Machine material:	stainless steel

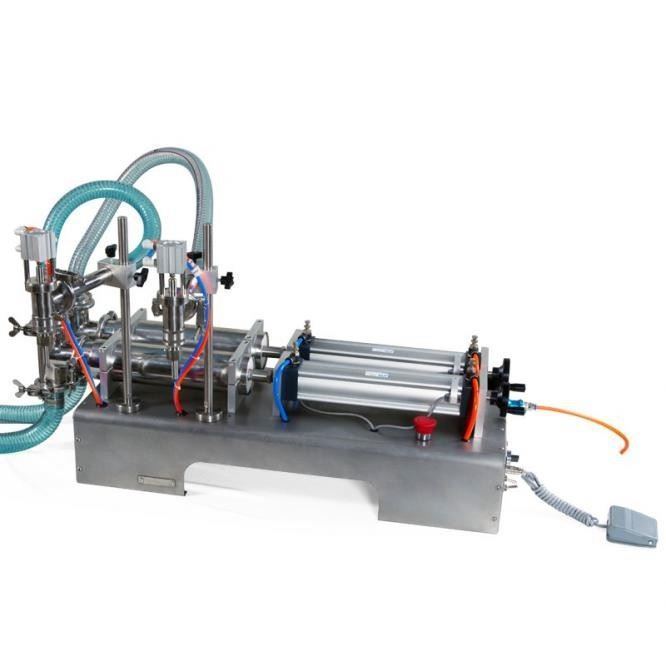

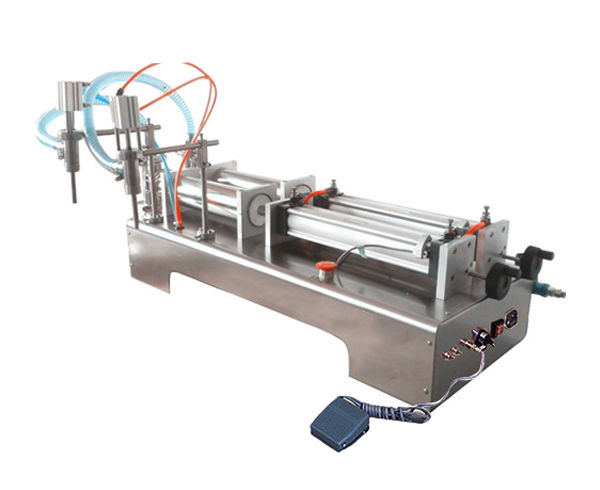

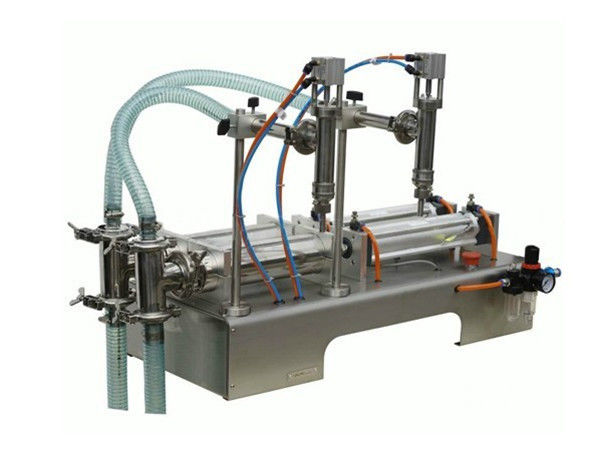

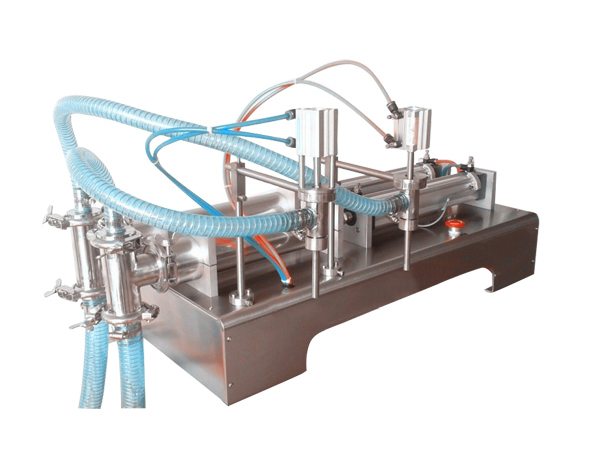

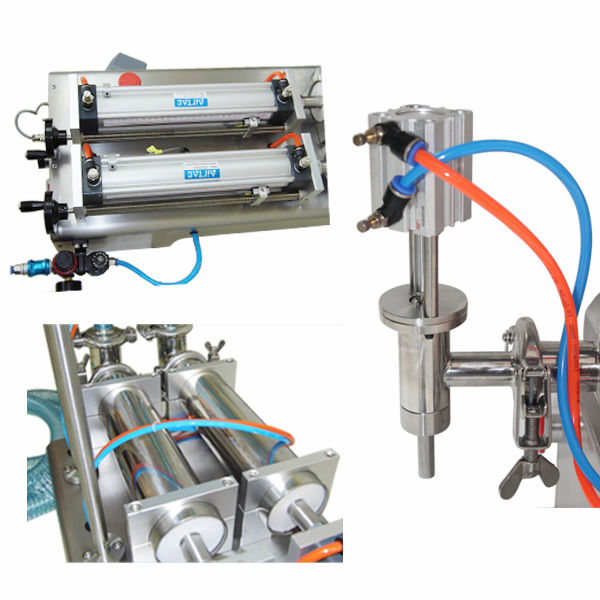

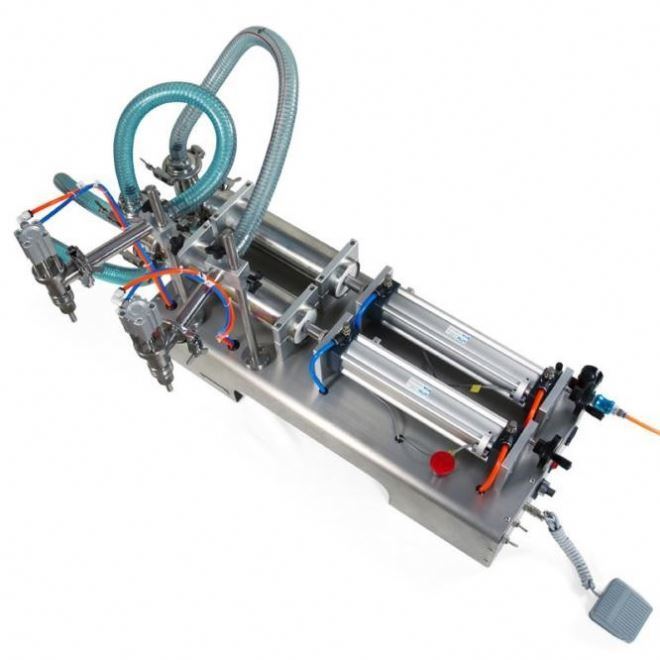

Pictures of double head liquid filling machine
