Place of Origin:
Guangdong, China
Brand Name:
SAMMI
Features:
1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.
2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.
3. Filling volume, filling speed can be adjustable, filling accuracy is high.
4. Adopt the anti-drip, Anti-drawing and lifting filling device
Application:
Widely used by industries in the Food & Beverage, Cosmetics, Personal.
Care, Agricultural, Animal Care, Pharmaceutical, and Chemical fields.
.And it is an ideal device for low viscosity fluid filling.
Principle

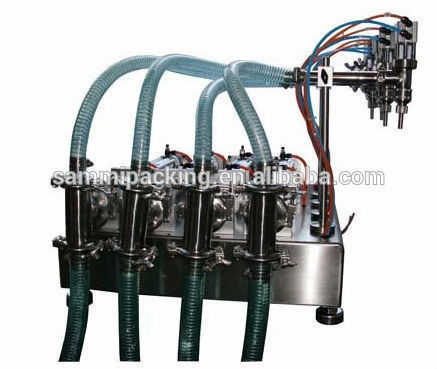

GFA series of semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
. Some contact materials are used 316 L stainless steel materials, in line with the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.
Technical Parameters:
| Machine model | G1WY-4Y-100 | G1WY-4Y-300 | G1WY-4Y-500 | G1WY-1000 | G1WY-4Y-3000 | G1WY-4Y-5000 |
| Filling speed | 10-35n/min(take water for example). | |||||
| Filling range | 10-100ml | 30-300ml | 50-500ml | 100-1000ml | 300-3000ml | 500-5000ml |
| Air pressure | 0.4~0.6mpa | |||||
| Filling error | ±1% | |||||
| Machine size | 806(L) × 180(W) ×690(H)mm | 880(L) ×230(W) ×665(H)mm | 880(L) × 230(W) ×665(H)mm | 1065 (L) ×230(W) ×665(H)mm | 1250(L) ×400(W) ×300(H)mm | 1390(L) ×420(W) ×380(H)6mm |
| Machine weight | 42 Kg | 45Kg | 48Kg | 52Kg | 64 Kg | 86 Kg. |
Machine can offer customized according to customer request
| Payment Term: | T/T, L/C, Western Union, PayPal, Credit card, trade assurance |
| Package: | export standard wooden case & cartons, honeycomb paperboard case |
| Delivery Time: | 1-3 days after payment |
| transportation: | by sea, by air, by express(DHL, FEDEX,TNT,4PX,ARAMEX,EMS etc) |
|
Shipping Time: | A, by express:about 5 days to arrive shipping destination,door to door service |
| B, by air: about 7 days to destination airport | |
| C, by sea:15-30 days to destination port |
1) Warranty Time: 1 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: We supply spare parts with competitive price after warranty time.
