Good Quality Pneumatic Liquid Filling Machine for Water, Oil, Perfume

pneumatic liquid filling machine for water

automatic oil filling machine

perfume filling machine with warranty

Place of Origin:

Guangdong, China

Brand Name:

SAMMI

Request A Quote

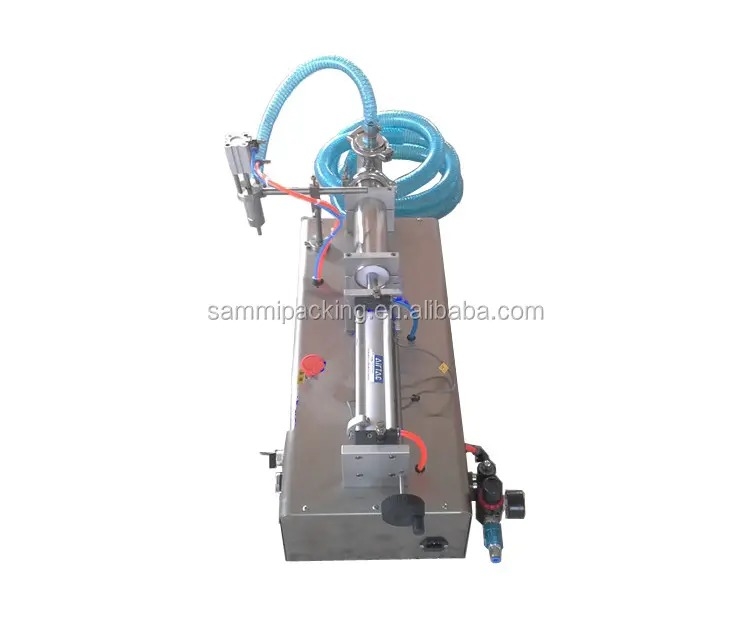

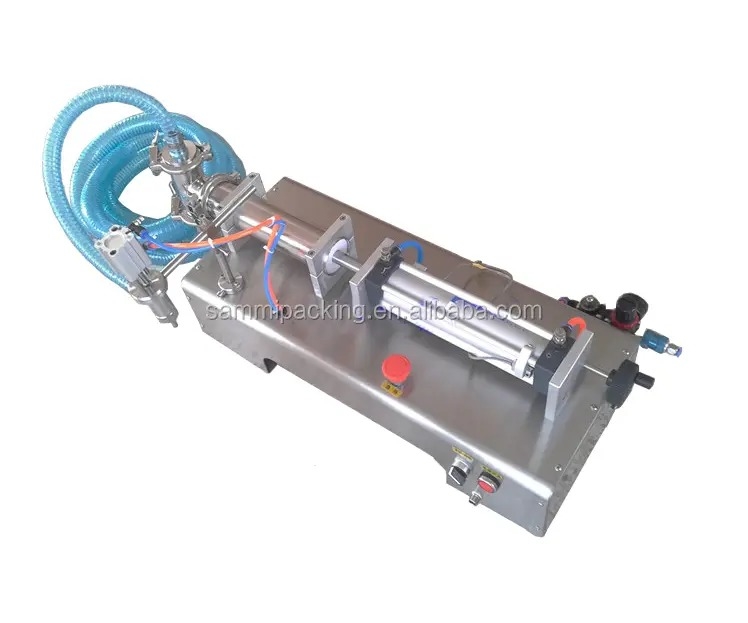

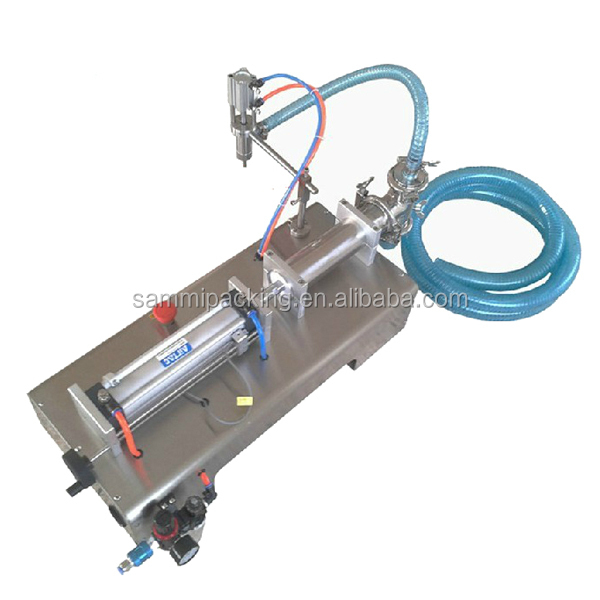

Good Quality Pneumatic Liquid Filling Machine for Water, Oil, Perfume

Product Details

Machinery Capacity:

500BPH, 1000BPH

Application:

Beverage, Food

Packaging Type:

Cartons

Packaging Material:

Plastic

Automatic Grade:

Semi-automatic

Driven Type:

Pneumatic

Voltage:

220V/110V

Dimension(l*w*h):

1065x230x665mm

Warranty:

1 Year

Key Selling Points:

Long Service Life

Filling Material:

Other

Filling Accuracy:

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Core Components:

Motor

Marketing Type:

New Product 2020

Type:

Filling Machine

Condition:

New

Applicable Industries:

Machinery Repair Shops

Showroom Location:

None

Warranty Of Core Components:

1 Year

Weight:

64 KG

Highlight:

pneumatic liquid filling machine for water

automatic oil filling machine

perfume filling machine with warranty

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$250-300 / set

Factory Price Automatic Ultrasonic Tube Sealer High Speed Rotary Type Soft Tube Filling and Sealing Machine for Cosmetic

Get Best Price

Semi Automatic Spout Pouch Juice Liquid Soybean Milk Self-supporting Bag Filling Packing Machine

Get Best Price

Stand up Spout Bag Sachet Water Pouch Filling Machine

Get Best Price

High Speed Automatic Cosmetic Cream Filling Machine Tomato Sauce Filling Machine Peanut Butter Filler with Conveyor

Get Best Price

Contact Now

Product Description

Features:

This machine adopts pneumatic control and owns a wide application scope, simple measuring regulation, good shape and convenient cleaning, suitable for the explosion-proof unit.

1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.

2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.

3. Filling volume, filling speed can be adjustable, filling accuracy is high

4. Adopt the anti-drip, Anti-drawing and lifting filling device.

Application:

Suitale for medicine,daily life products, food and special industries.And it is an ideal device for adhesive fluid filling.

Principle

GFA series of semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.

1. Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.

2. Some contact materials are used 316 L stainless steel materials, in line with the GMP requirements.

3. Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.

Technical Parameters:

Machine model	GFA-100	GFA-300	GFA-500	GFA-1000	GFA-3000	GFA-5000
Filling speed	10-35n/min(take water for example)
Filling range	10-100ml	30-300ml	50-500ml	100-1000ml	300-3000ml	500-5000ml
Air pressure	0.4~0.6mpa
Filling error	±1%
Machine size	806(L) × 180(W) ×690(H)mm	880(L) ×230(W) ×665(H)mm	880(L) × 230(W) ×665(H)mm	1065 (L) ×230(W) ×665(H)mm	1250(L) ×400(W) ×300(H)mm	1390(L) ×420(W) ×380(H)6mm
Machine weight	42 Kg	45Kg	48Kg	52Kg	64 Kg	86 Kg

Machine can offer customized according to customer request
