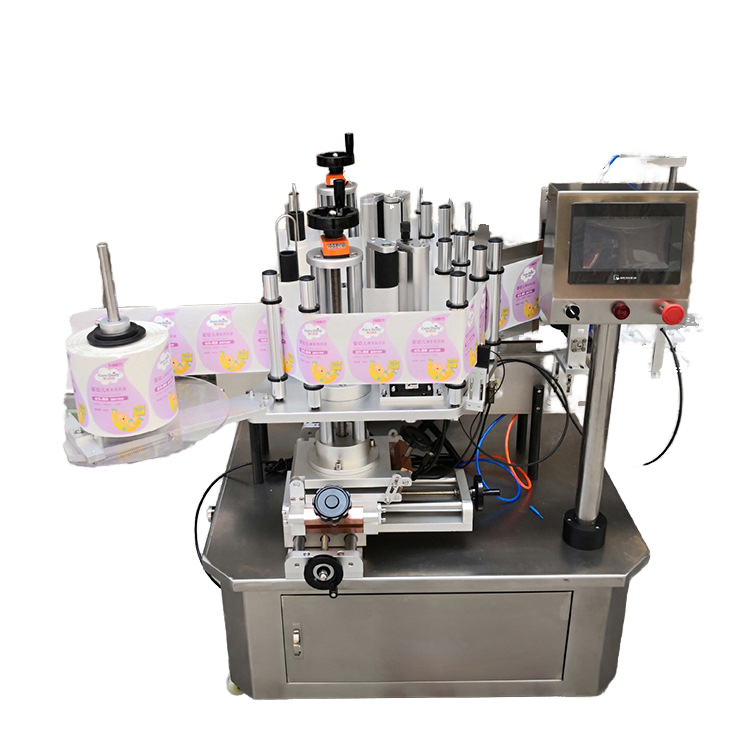

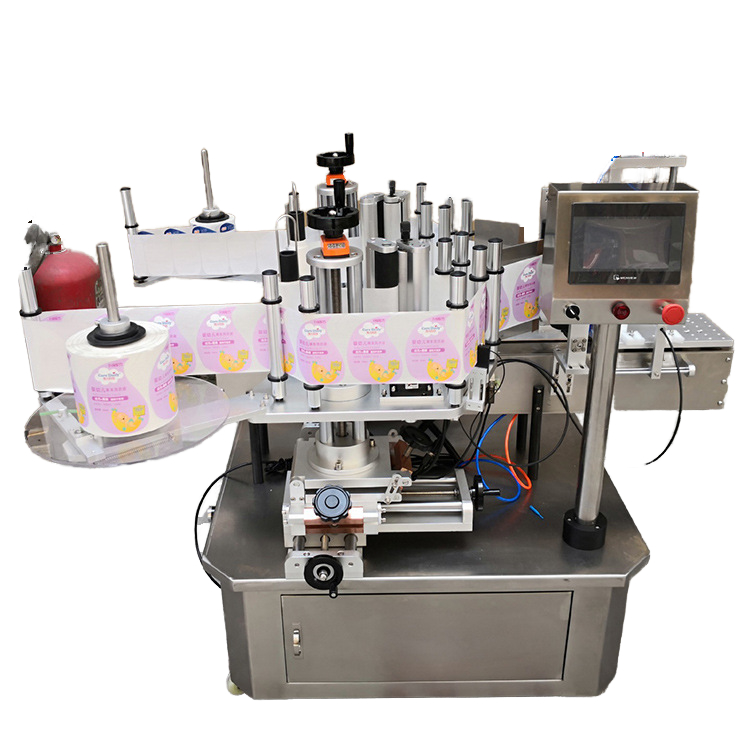

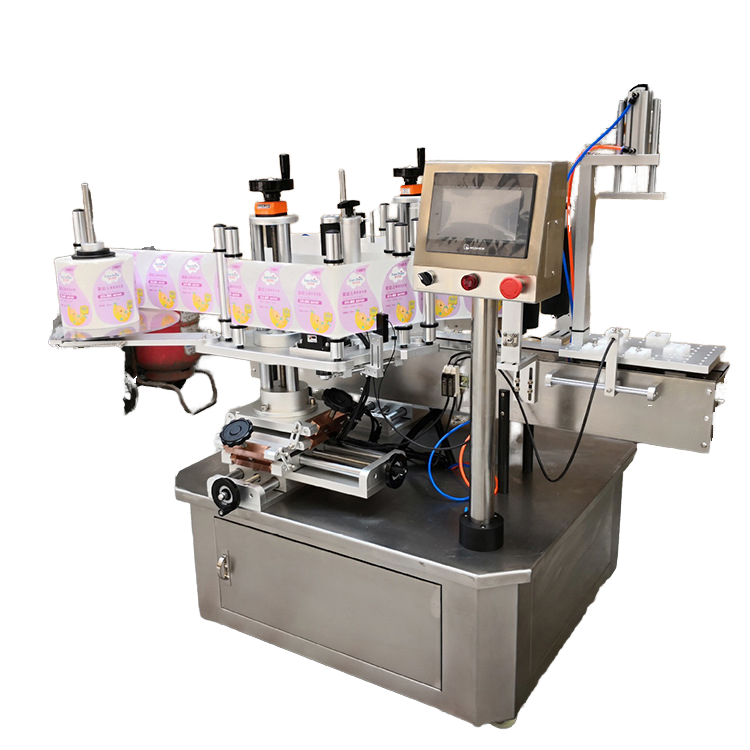

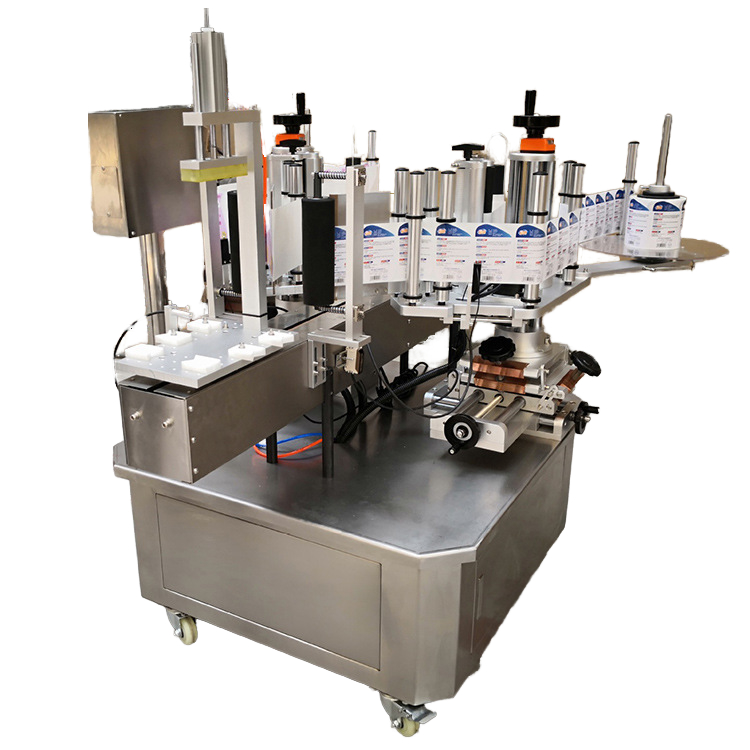

Automatic Double-Sided Laundry Detergent Labeling Machine Semi-Automatic Square Bottle Labeling Machinery

Basic Uses:

This device belongs toSide Labeling MachineSeries,Suitable for flat bottles,Round Bottle,Single and double-sided labeling for square bottles,Like a flat bottle of shampoo,Lubricating Oil Flat Bottle,Hand Sanitizer Round Bottle Double-Sided Labeling,Double-sided adhesive,Dual Standards Increase Production Efficiency,Widely used in daily chemicals,Cosmetics,Petroleum,Pharmaceutical and other industries.

Product Features:

Powerful function,One machine can achieve4Single-sided and double-sided labeling for various products(Round Bottle,Flat Bottle,Square Bottle,Irregular-shaped Bottle);
Adopted double-sided rigid plastic synchronous guide chain,Automatically ensures bottle alignment,Low requirements for workers to connect bottle placement with the assembly line,Significantly reduces worker workload
Or the difficulty of assembly line connection,Can be produced independently,Can also be connected to assembly line production;
Equipped with a Spring-Loaded Top Pressing Mechanism,Ensure smooth product delivery,And effectively eliminate the inherent error of bottle height;
Configure an Automatic Bottle Dispensing Mechanism,Automatically Separate Bottles Before Guiding,Guaranteed subsequent bottle delivery,Stability of conveying and labeling;
Configured with a Dual Over-labeling Mechanism,First time guaranteeing labeling accuracy,Secondary Extrusion Labeling,Effectively eliminate bubbles and ensure labels adhere tightly at both ends;
Intelligent Control,Automatic Photoelectric Tracking,Capable of Labeling Any Object,Automatic calibration without labels and automatic label detection function,Avoid Waste of Labels and Missing Labels;
The main materials of the equipment are stainless steel and high-grade aluminum alloy,CompliantGMPProduction Standards,The Overall Structure Is Firm,Elegant and beautiful.

Scope of Application:

Applicable Labels:Self-Adhesive Label,Self Adhesive Film,Electronic Regulatory Code,Barcode, Etc.
Applicable Products:Requirement in the Lateral Plane,Large Curved Surface on the Side,Products with labels attached on the outer surface.
Application Industry:Widely Used in Cosmetics,Daily Chemical,Electronic,Medicine,Hardware,Plastics and Other Industries.
Application Examples:Shampoo Bottle Labeling,Lubricating Oil Flat Bottle Labeling,Shampoo Round Bottle Labeling, etc.

Work Principle:

*Core Working Principle:Sensor Detects Product Passing,Transmit signal back to labeling control system,In the appropriate position control system controls the label to be sent out and attached
Product is ready for labeling position,Product Flow through Overprint Device,Labels are applied and adhered to the product,The labeling process for one label is complete.
*Operation process:Put the Product(Can Be ConnectedAssembly Line)->Product Delivery->Product Spacing->Labeling(Automatic Equipment Implementation)->Collect Products with Labels.

Technical Parameters:

The following are the technical parameters of the standard model,Other Special Requirements and Functions,Can Be Customized
 Applicable Product Dimensions(Long×Wide×high/Thick):
Length(The Direction of the Conveyance):20mm~250mm
Width(Conveyance Width Direction):30mm~90mm
Height:60mm~280mm
 Labeling Accuracy(mm):±1.0mm
 Labeling Speed(pcs/min) :50~200pcs/min
 Weight(kg):Approximately330kg
 Frequency(HZ):50HZ
 Voltage(V):220V
 Power(W):1600W
 The Dimensions of the Equipment(mm)(Long×Wide×high):3000×1450×1600
